Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20205 / 70024075202
6 Information for electrically skilled persons
Installation and electrical connection
Danger!
Risk of death by electric shock.
Disconnect device from power supply. Cover live parts.
Connecting and installing power supply
L
N
AC 230 V~

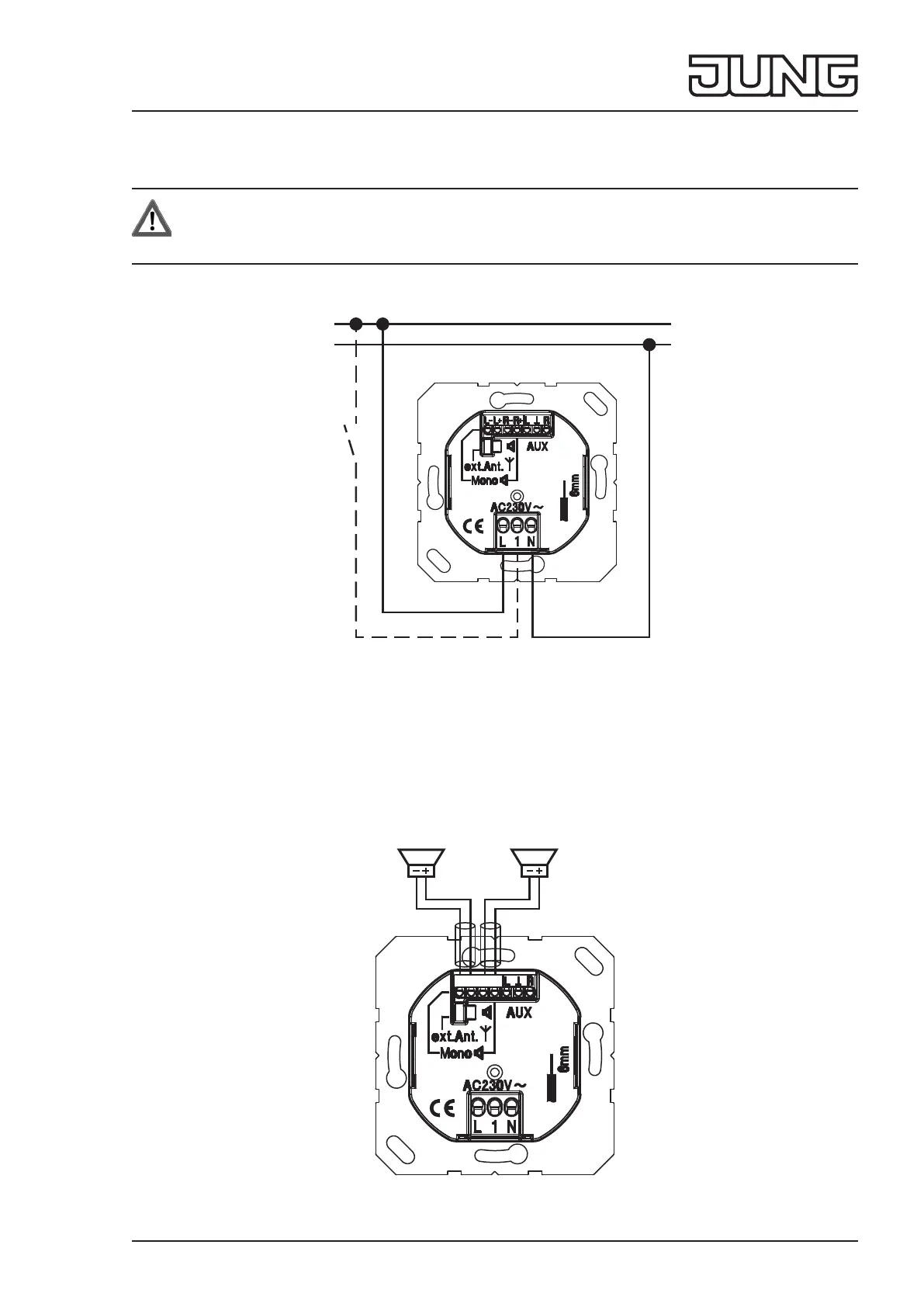

Fig. 2: Connection of insert with optional extension unit
i The radio, for example, can be switched on together with the room lighting via the extension unit input.
i The radio and extension unit must be operated on the same phase.
Connecting a loudspeaker (stereo mode)
Two loudspeakers must be connected for stereo mode.
i All cables with low voltage must be laid in an additional insulating tube within the device box. This guarantees
safe isolation from the mains voltage.
L R
L-L+ R-R+
Fig. 3: Connection of 2 loudspeakers
