Smart Radio DAB+ and Smart Radio DAB+ Bluetooth
31.07.20206 / 70024075202
Connecting a loudspeaker (mono mode)
One loudspeaker must be connected for mono mode.
i All cables with low voltage must be laid in an additional insulating tube within the device box. This guarantees
safe isolation from the mains voltage.
L-L+ R-R+

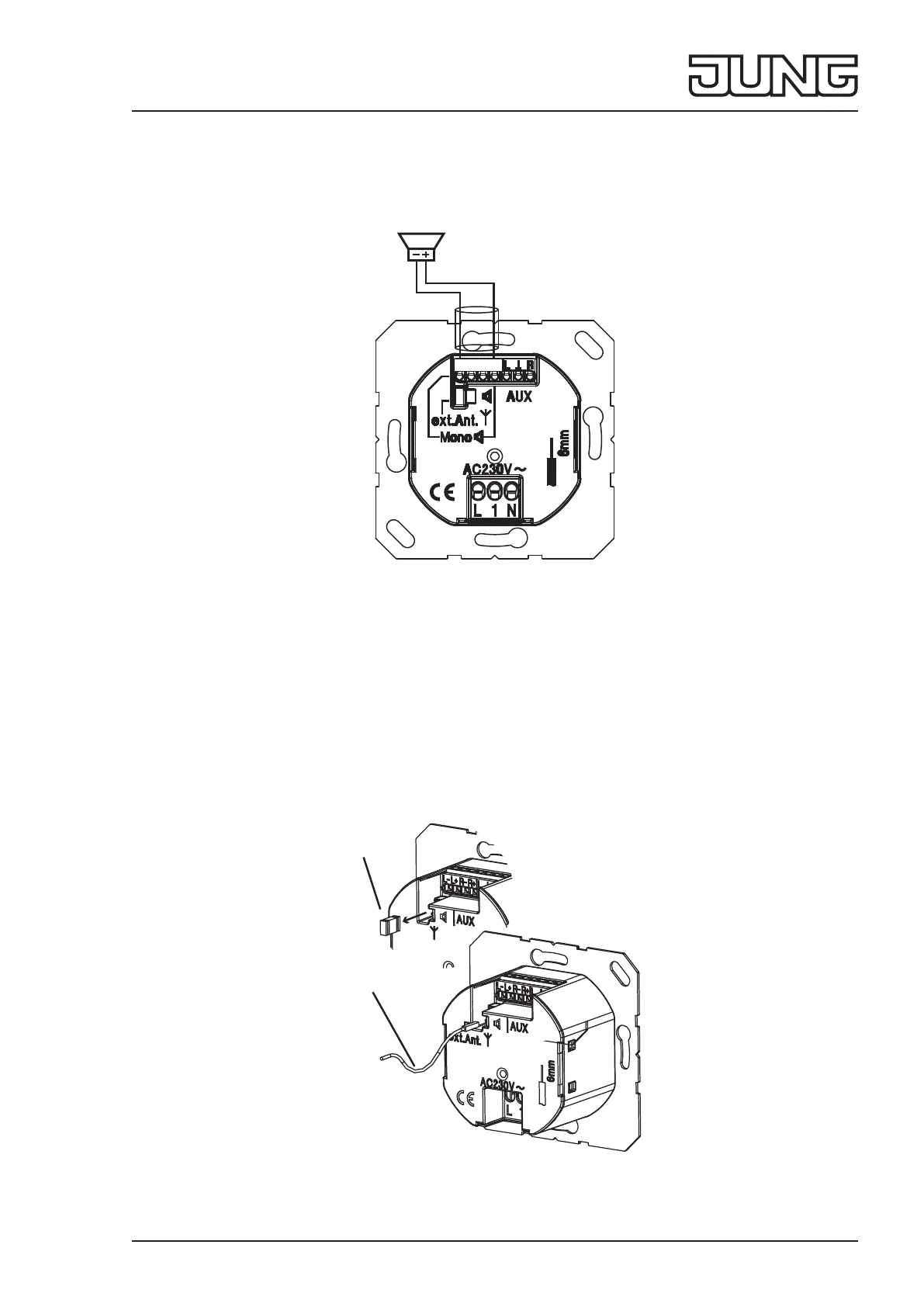

Fig. 4: Connection of 1 loudspeaker
Connecting AUX output
Output to the connection from active boxes and headphones.
i All cables with low voltage must be laid in an additional insulating tube within the device box. This guarantees
safe isolation from the mains voltage.
Connecting cable aerial
It is only necessary to connect the external cable aerial Art.-No.: RAD-ANT in the case of poor reception.
i The connection from other aerials, e.g. roof aerials or community aerials, is not permitted.
• Remove jumper (9)
• Insert the aerial (10) at the lower connection
9
10
Fig. 5: Aerial connection
