Operating mode 7
Input Function
E1 All Off
E2 Light scene 3
E3 Light scene 4
E4 Light scene 5
Operating mode 8
Input Function
E1 Light scene 1
E2 Light scene 2
E3 Light scene 3
E4 Light scene 4
5 Information for qualified electricians
5.1 Fitting and electrical connection
DANGER!
Electrical shock on contact with live parts in the installation environment.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live
parts in the working environment.
Connecting and mounting the device

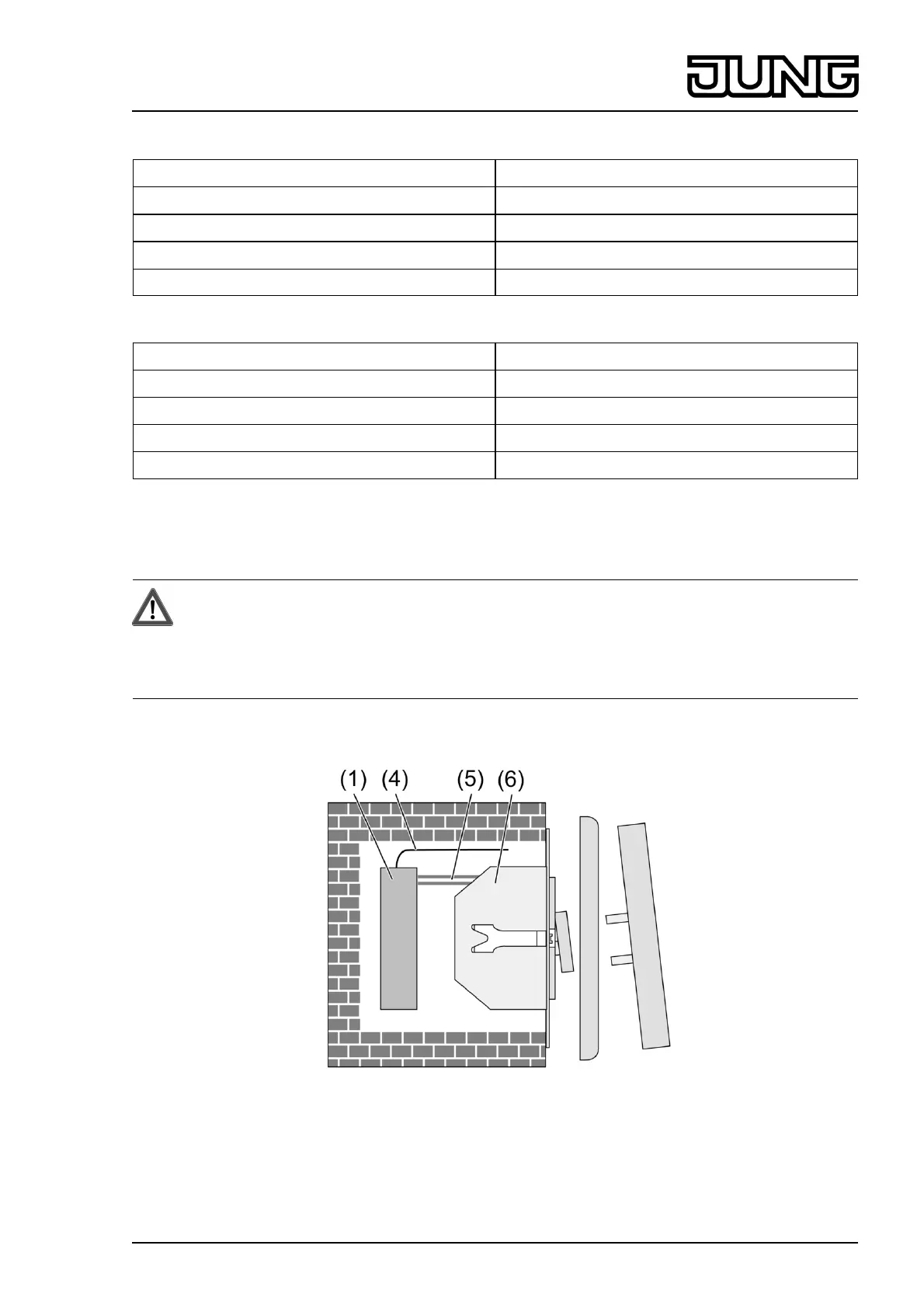

picture 5
The transmitter is installed behind a potential-free switch or button (6) in a appliance box
(picture 5).
Keep a distance to large-area metallic parts, e.g. metallic door frames.
Maintain a distance of at least 1 m between transmitters and receivers.
