Jung FMS 4 UP User Manual

picture 9

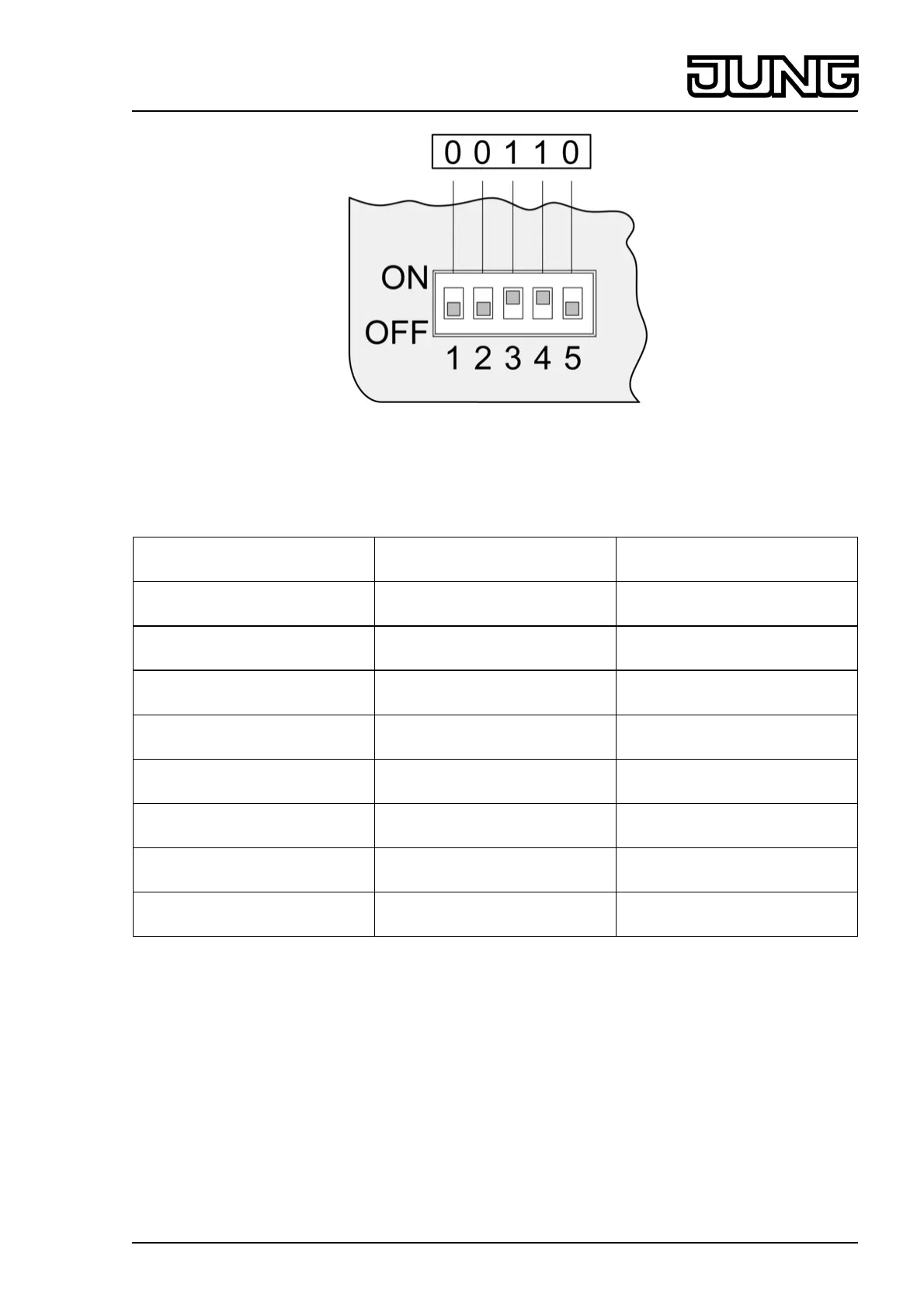

With the microswitch setting 00110 shown in the figure, operating mode 4 is set (picture 9).
o Use a small screwdriver to set the appropriate operating mode (see following table).
Operating mode/
microswitch
Function Control
1
00000
Switching/Dimming Button
2
00010
Switching/Dimming/Blind Button
2-button
3
00100
Switching Switch, NO contact
4
00110
Switching Switch, NC contact
5
01000
All On/Off, light scene 1/2 Button
6
01001
All Off, light scene 1-3 Button
7
01010
All Off, light scene 3-5 Button
8
01011
Light scene 1-4 Button
Implementing the "Bell mode" application example
In "Bell mode", a load, e.g. a bell or a lamp, is switched on for the time the button is pressed.
With a switching actuator as a receiver:
o Set operating mode 3.
o Connect a button instead of a switch.
When the button is pressed, the switching actuator closes its contact and releasing the
button reopens the contact.
With a touch actuator as a receiver:
o Set operating mode 2.
o Actuate the switch-on channel E1 or E3.
The behaviour of the touch actuator is described in the touch actuator operating manual.
