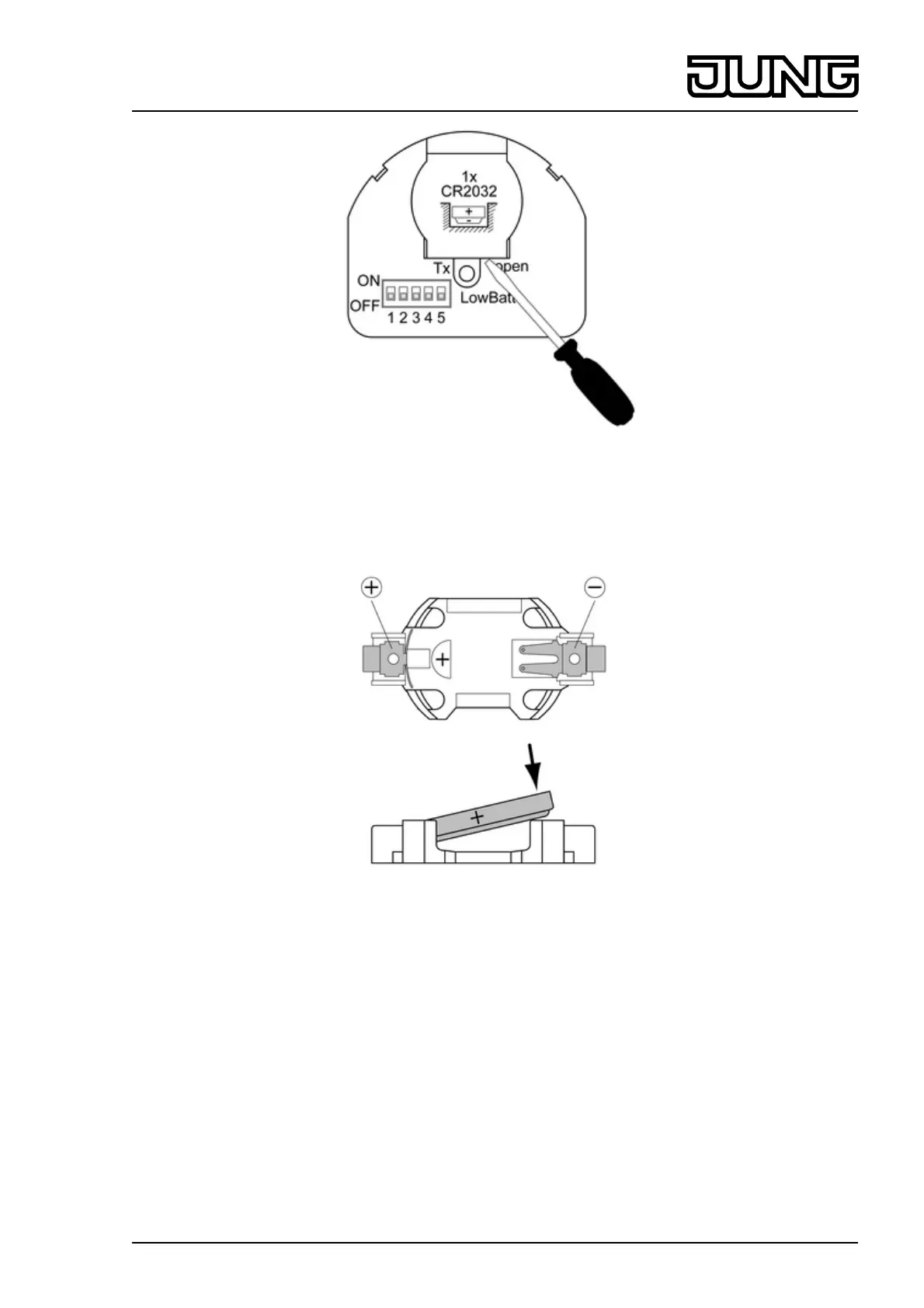

picture 7: Opening the battery compartment
o Carefully open the battery compartment using a screwdriver.
o Remove the empty battery.
picture 8: Inserting the battery
o Insert the new battery on the Plus contact of the battery holder. Observe the polarity: the
Plus pole of the battery must be at the top.
o Lock the battery in place using slight pressure.
o Close the battery compartment.
5.2 Commissioning
Setting the operating mode
The eight operating modes are set using the 5x microswitch. For further explanation in the
instructions:
ON = 1 and
OFF = 0.
7/11
32535013
J:0082535013
13.08.2010
