4.10.1 Raising a load
Requirements
– Load correctly palletised.
– Load weight matches the truck's capacity.
– Load handler evenly loaded for heavy loads.
Procedure

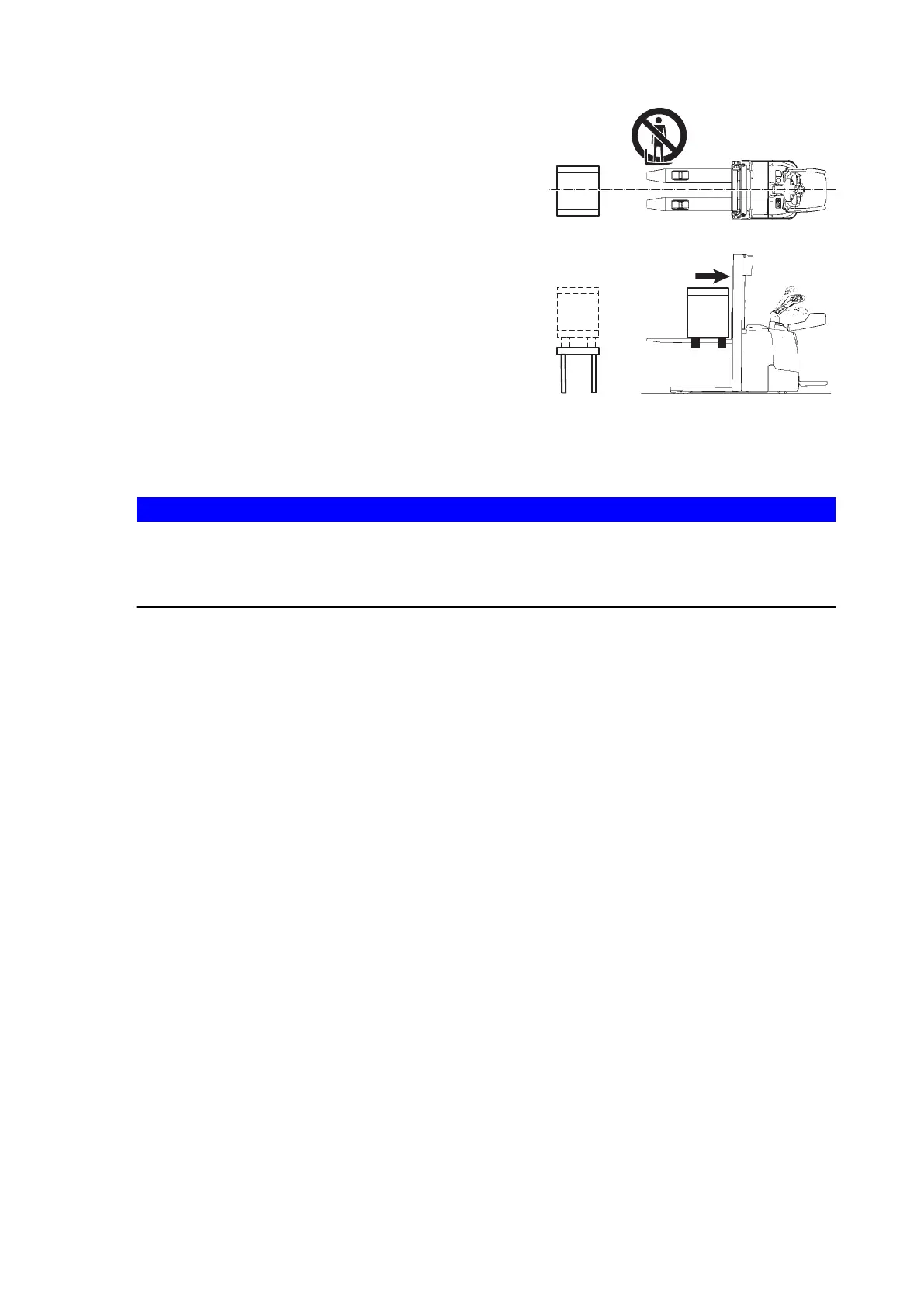

• Drive the truck carefully up to the pallet.
• Drive the load handler slowly into the pallet
until the pallet is against the back of the load
handler (see graphic to the right).
Z
The load must not extend by more than
50 mm beyond the load handler tips.
• Raise the load handler until the desired height
is reached, (see page 94).
The load is being raised.
NOTICE
Risk of material damage to the hydraulic unit
When the mechanical stops of the load handler have been reached, release the
"raise load handler" button. Otherwise the hydraulic unit may suffer material damage.
Z
The lifting/lowering speed can be infinitely controlled via the movement of the button
(approx. 8 mm).
Short stroke = slow lift / lower
Long stroke = fast lift / lower
ERC 212z-216z only
With the low-level lift (support arm lift) raised, loads can be stored and retrieved up
to a lift height of 1800 mm. For lift heights above 1800 mm the low-level lift (support
arm lift) must be lowered.
Two palletised loads can only be lifted on top of each other if the corresponding
optional equipment is available, see page 101.
98
04.19 en-GB
