Battery Compartment and Card Slots
Connector Ports
Note: Your Mesa 2 might look different than these images.
Perform Initial Tasks
When you receive your Mesa 2, perform the tasks outlined in
this section before rst use.
Review Documentation
The owner’s manual, quick start guide, and Microsoft
®
License Agreement are available in multiple languages.
Other documents like release notes are available in

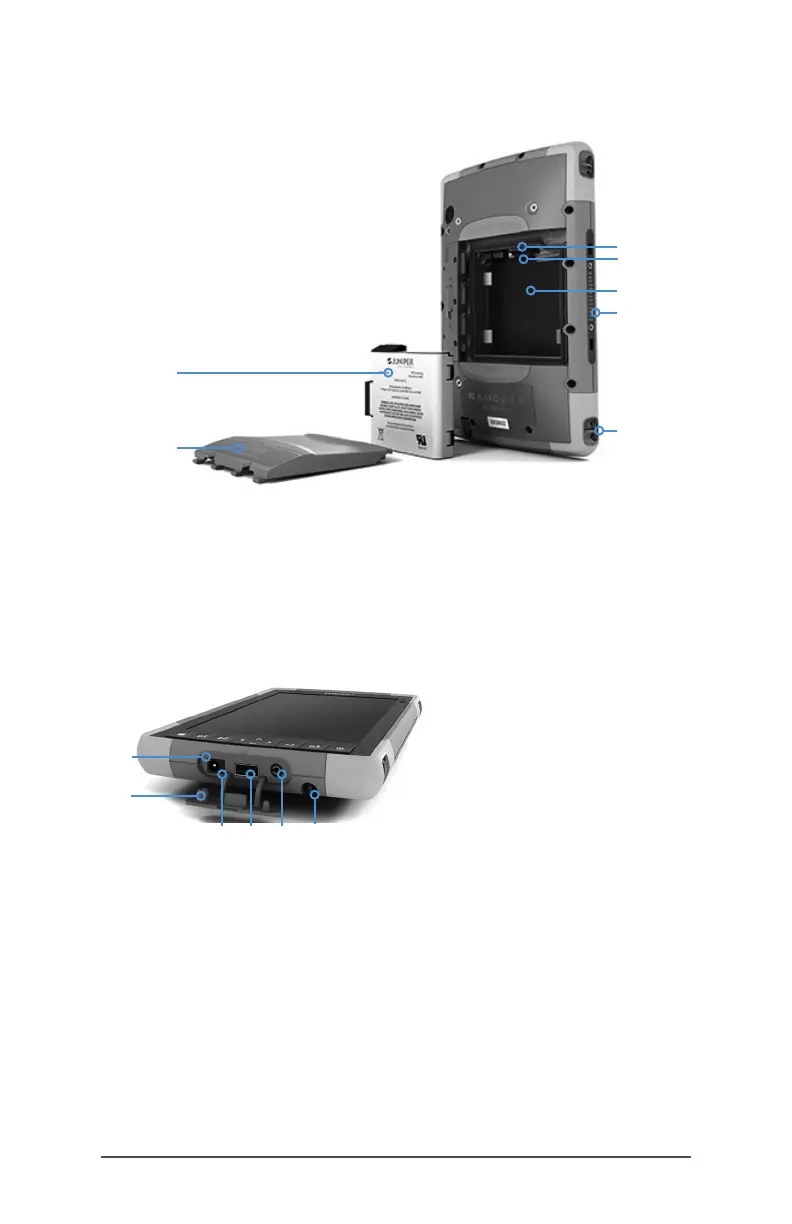

1 Battery Pack, Removable
2 Battery Door
3 Micro SIM Card Slot and
Micro SD/SDHC Card Slot
(underneath card retainer)
4 Flexible Card Retainer
5 Battery Compartment
6 Docking Connection
7 Hand Strap Attachment
Point (2 on each side)
2
1
5
4
3
6
7
8 Connector Ports
9 Connector Port Protector
10 12 VDC Power Input Jack
11 USB 3.0 Host, Full Size
12 Microphone/Speaker Jack
13 Storage Slot for Fine Tip Stylus
8
10 11 12
9
13
