Nozzle pressure at maximum useful thermal
power
.
The following settings are made at the factory:
B Remove the jacket (see removing the jacket).
Fig. 43
• Methane gas: Methane gas appliances are set and factory
sealed for an index value

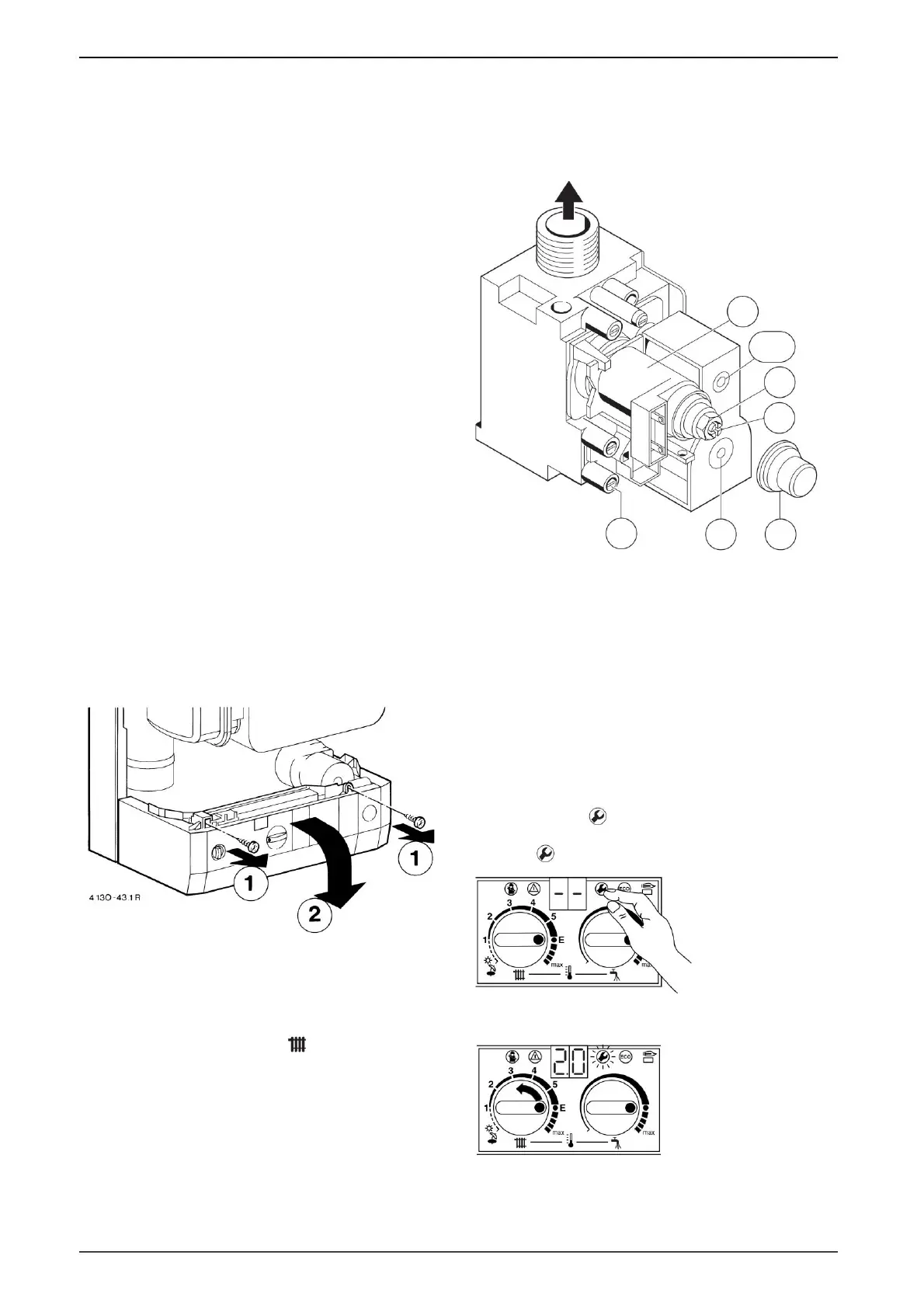

7.1.1 Preparation
B Remove the two control panel screws and fold it
down.
B Press the key
on the display appears
- - The key flashes.
B Turn the thermostat knob until 2.0 appears on the
display.
Fig. 41
7.1.2 Nozzle pressure method
After a short time, the display will show the stored
operating mode (0. = normal operating mode).
In particular, after switching to another type of gas, the gas
flow must be checked or adjusted for the minimum power
and the maximum maximum heating power.
Gas adjustment, depending on its type
The rated thermal input can be adjusted using the nozzle
pressure method or the volumetric method. A U-tube
manometer is required for both methods.
Fig. 40
The nozzle pressure method is faster and is therefore
preferable.
Fig. 42
Wobbe of 14.9 kWh / m3 and a dynamic pressure of
and keep it that way until
26
• LPG: LPG appliances are factory adjusted and sealed in
accordance with the dynamic pressure on the appliance
label.
20 mbar.
7.1 Gas regulation
7 Dynamic inlet pressure measuring nozzle
64
Minimum gas pressure regulating screw
52
Safety magnetic valve
65
Cover 68
Continuously
modulated magnetic valve
6 720 610 828 RO (02.01)
63
Maximum gas pressure adjustment screw
52.1 Safety magnetic valve
6 720 610 332-60.1O
6 720 610 332-32.1O
7 Gas adjustment, depending on its type
