Operating Instructions Grain Mill Attachment (Steel Cone Grinder)
8 Subject to technical changes without notice; no responsibility is accepted for the accuracy of this information.
Messerschmidt system
A
B
C
I
J K L M N

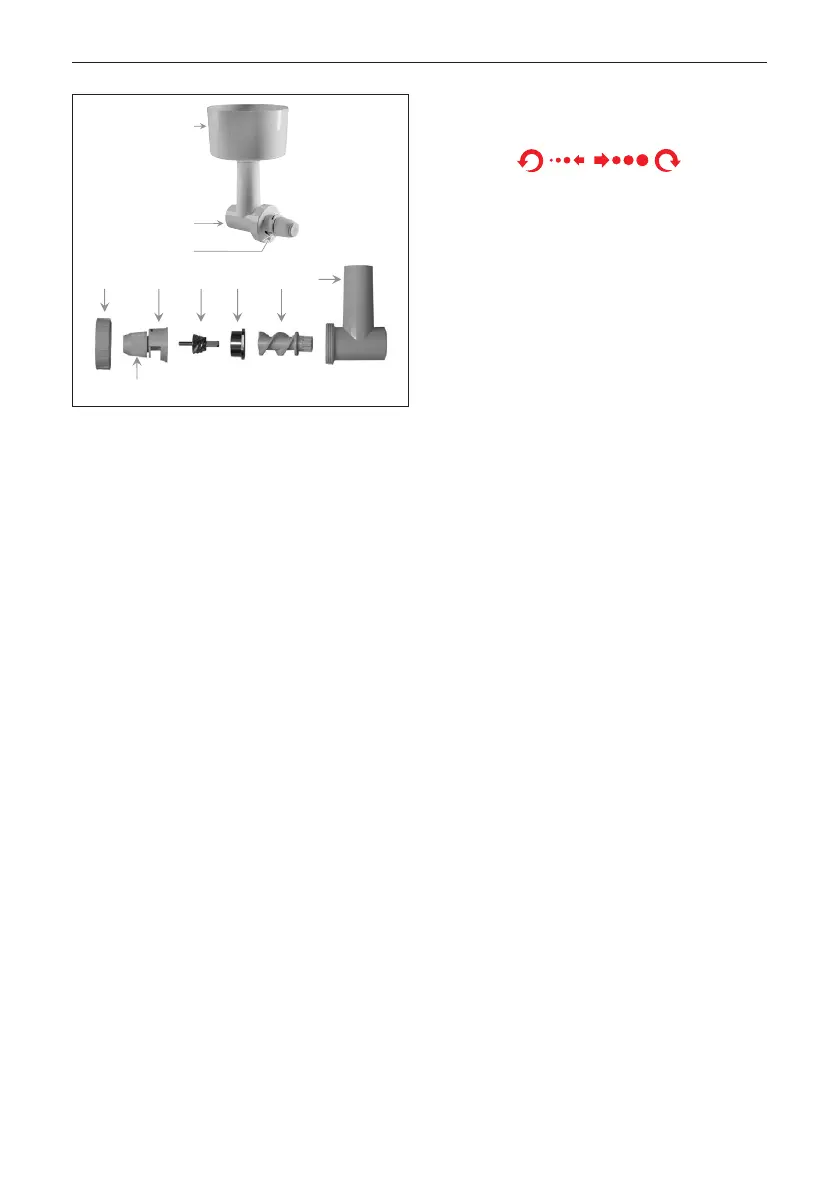

Disassembly before first use
• Disassemble the milling head before first use for clean-
ing (see section Cleaning).
1 Unscrew the sealing ring I counter-clockwise from the
housing N.
2 Remove the setting unit J.
3 Remove the grinding cone K, grinding ring L and
screw M from the housing N.
Assembly/disassembly
1 Push the screw M, leading with the plastic connector,
into the housing N until it reaches the end stop.
2 Insert the grinding ring L into the housing N.
Important: Note the flattened side of the grinding ring.
The grinding ring must fit precisely into the recess on
the housing.
3 Place the grinding cone K on the grinding ring L.
Important: The square shaft of the grinding cone must
sit in the screw. The square mounting of the screw must
be completely free of residue.
4 Place the setting unit J on the housing N.
Important: The notch of the setting unit must point
downwards and sit over the small raised area in the
housing. The flour outlet will then point downwards.
5 Screw the sealing ring I clockwise onto the housing N.
6 Attach the filling hopper A.
• It can be disassembled using the same steps in reverse
order.
Setting the milling grade
• Set the desired milling grade during the milling process
using the knurled knob R.
Finer Coarser
IMPORTANT:
• The square mounting of the screw must be completely
free of residue. Otherwise, it is not possible to set the
milling grade to fine.
• Always select a coarse setting before and after use.
• Do not use force when turning the knurled knob R.
• Use the finest milling grade for wheat only.
• Avoid an extremely fine setting.
