Installaon of the pump JUWEL Eccoflow in the filter system Compact,
Standard H and Jumbo
Please proceed as follows in order to install the new pump:
1. Disconnect all electrical devices of the aquarium from the power grid.

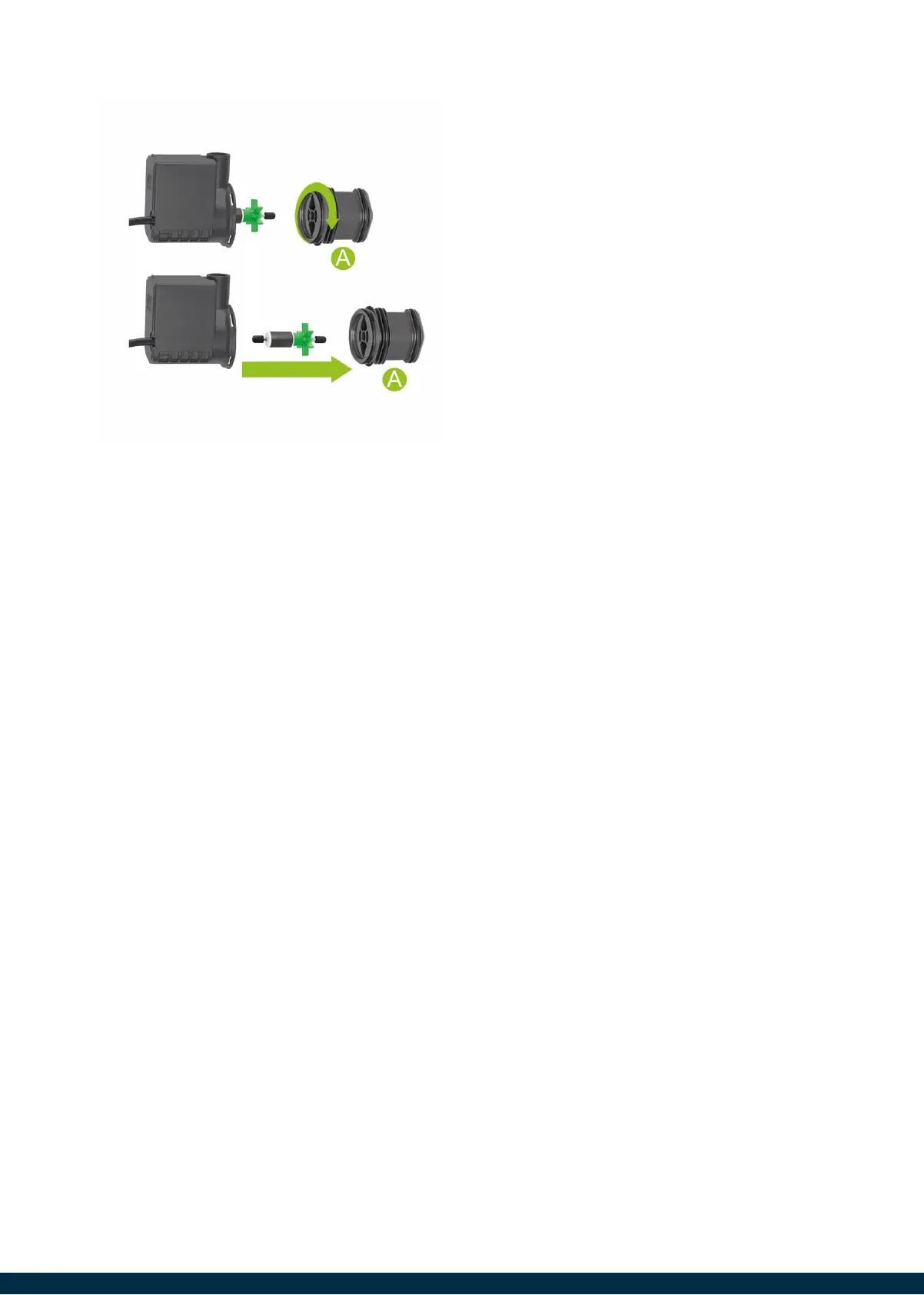

2. Remove the adapter (A) from the motor and replace it with the connecon ring (B) as shown on the picture at the new pump
JUWEL Eccoflow.
3. Remove the outlet nozzles and remove the old pump and the pump adapter from the filter.
4. Now arrange the pump on the pump adapter (C) and turn it all the way to the right.
5. Firmly place the new pump on the separaon wall; the outlet of the pump must point at the round opening in the filter housing.
6. Connect the outlet nozzle to direct the waterflow as desired from the outside to the outlet opening of the pump. Reinstall the
gasket into the round opening of the filter housing when connecng the outlet. This decreases vibraon transmissions.
Now the pump is ready for operaon and you may reconnect the electrical devices to the power grid.
