The illustrations shown in this section are for AV-29VS24 and
AV-21CS24 only, which are used for explanation purpose. Your
TV may not look exactly the same as illustrated.
Before connecting
• Read the manuals provided with the devices for the proper
connection.
• Turn off all the devices including the TV.
• Note that connecting cables are not supplied.

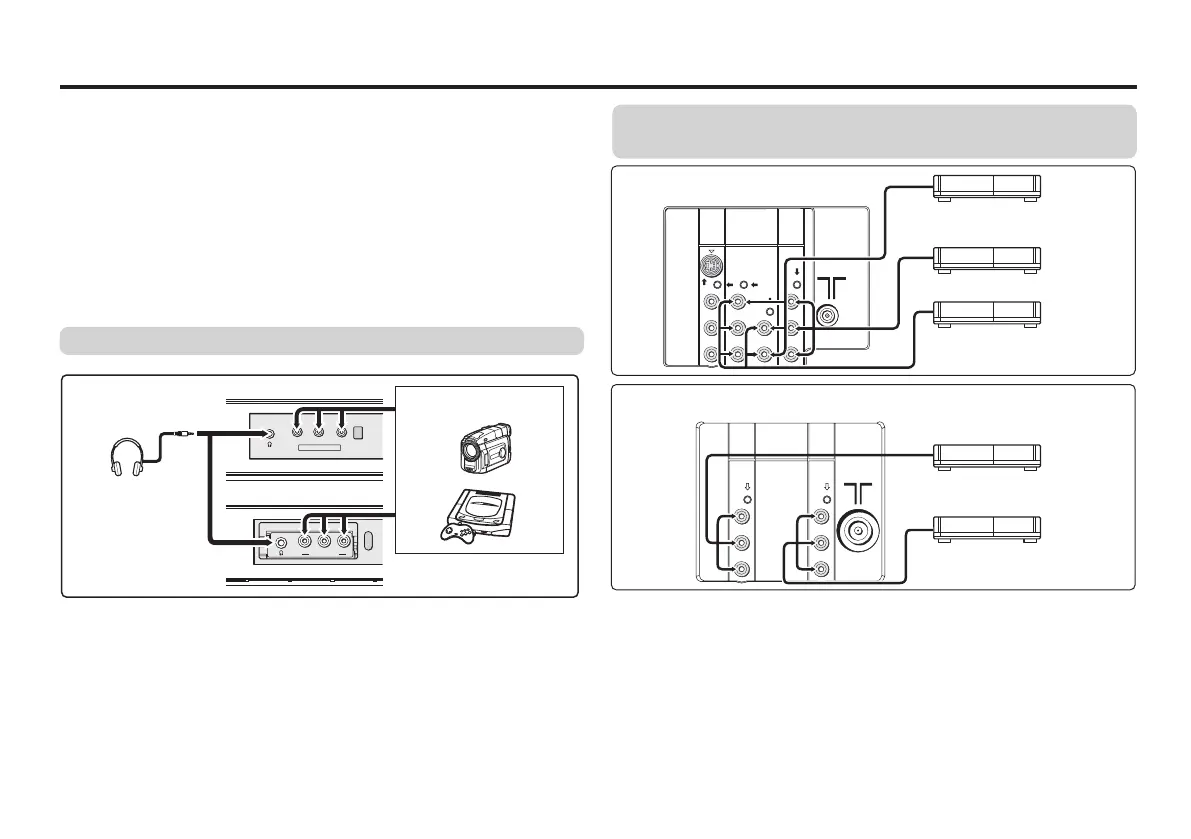

Connecting to front video input terminal
Additional preparation
Connecting to rear component/video input
terminal and output terminal
IN (VIDEO-2)
V
R
L / MONO
IN (VIDEO-3)
V
MENU
OK
OK
MENU
L/MONO
R
Front of TV
Headphones
AV-29VS24
AV-21CS24
Camcorder or TV game
When you use VIDEO-1 INPUT, you should choose to connect
S-VIDEO or video input. If S-VIDEO connector and video input
are connected at the same time, no picture displays on the
screen and the message “PLEASE DISCONNECT VIDEO-1
CABLE!” appears. In this case, you should disconnect either
S-VIDEO or video input.
When connecting to COMPONENT (VIDEO-2) input, depending
on the connection, choose the appropriate video input using the
menu (see page 18).
Rear of TV
Rear of TV
AV-29VS24
AV-21CS24
VCR (for playing)
DVD player (composite signals)
VCR (for recording)
DVD player
(component video signals)
VCR (for playing)
VCR (for recording)
