TV buttons and functions
The illustrations shown below is for AV-29VS24 and AV-21CS24 only, which are used for explanation purpose.
Your TV may not look exactly the same as illustrated.
IN (VIDEO-3)
VR
MENU
OK
L/MONO
CHANNEL
VOLUM E
TV/VIDEO
EXIT
POWER
!9 8765 234 1

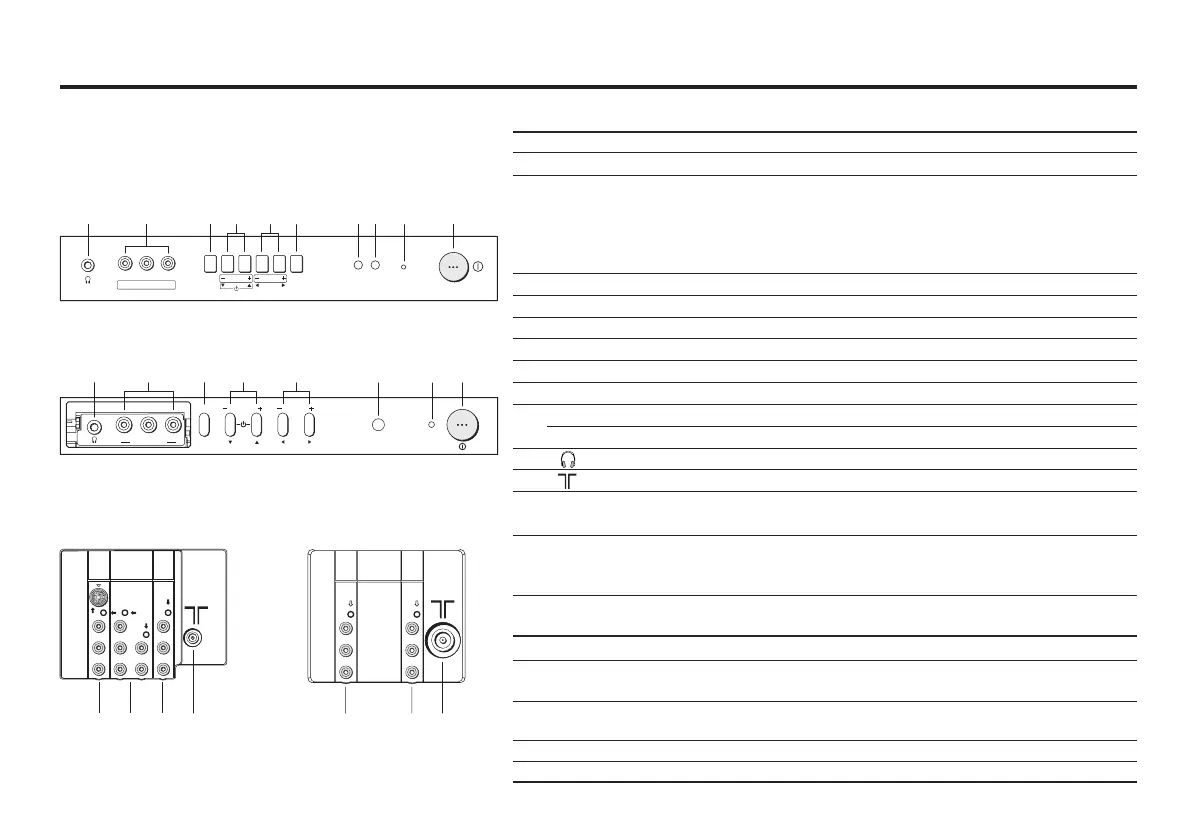

Front of the TV
AV-29VS24
Rear of the TV
AV-29VS24
!9 876 4
IN (VIDEO-2)
V
R
L / MONO
POWER
21
OK
CH
A
NNEL
VOLUME
MENU
V
L
RR
L
/
MONO
Y
C
B
C
R
/
V
V
S
OVER
L
R
/
MONO
OUTPUT
VIDEO-1
COMPONENT
(VIDEO-2)
INPUT
INPUT
%
$
# "
V
L
R
V
L
R
/
MONO
OUTPUT
VIDEO-1
INPUT
%
#"
AV-21CS24
AV-21CS24
No. Button/terminal Description Page
1 L (main power) Press to turn on or turn off the TV’s main power. –
2 POWER lamp Indicate the TV is being turned on or off. –
No colour : TV’s main power is being turned off.
Red : TV’s main power is being turned on.
Note: When you turn off the power switch while TV is in standby
mode, the light of power lamp will be off in 10 -15 seconds.
3 ECO sensor –
4 Remote control sensor –
5 TV/VIDEO Press to select TV or video mode. –
6 VOLUME -/+ Press to adjust the volume level. –
7 CHANNEL -/+ Press to select the desired channel. –
8 MENU Press to display the menu. –
9 IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 22
IN (VIDEO-2) Video and audio input jacks for VIDEO-2 mode. 22
! Headphone jack. 22
" Aerial socket. 7
# OUTPUT Video and audio output jacks. (The component video 22
signal cannot be output.)
$ COMPONENT Video or component video, and audio input jacks for 22
(VIDEO-2) INPUT VIDEO-2 mode. You can select the input signal by setting
the “VIDEO-2 SETTING” function (see page 18).
% VIDEO-1 INPUT Video or S-VIDEO, and audio input jacks for VIDEO-1 7
mode
How to operate the menus with the TV button
TV button
Work as same as the button on the
Note
remote control unit
MENU MENU/OK button To display main menu and exit
menu after finish setting.
CHANNEL -/+ ∞/5 button To select menu function.
VOLUME -/+ 2/3 button To adjust the desired function.
