JVC AV-25MS16/H User Manual

2-20(No.YA445)
IC401-1
1.0Vp-p
(V)
IC401-3
27Vp-p
(V)
IC401-5
53Vp-p
(V)
IC401-6
30Vp-p 0.8Vp-p
(V)
IC701-10
2.3Vp-p
IC701-11
2.7Vp-p
IC701-22
1.0Vp-p
IC701-23
1.3Vp-p
(V)(V)
IC701-67
3.0Vp-p
(H)
IC701-74
1.2Vp-p
(H)
IC701-66
5.0Vp-p
(H)
(H)
IC701-87
1.7Vp-p
(H)
IC701-48
2.0Vp-p
(H)
T522-9
220Vp-p
T522-8
24Vp-p
(H)
(H)
T522-7
110Vp-p
(H)
T522-6
110Vp-p
(H)
T522-4
60Vp-p
(H)
T522-2
6.0Vp-p
(H)
Q522-C
1200Vp-p
(H)
Q521-B
1.3Vp-p
Q521-C
32Vp-p
(H)
Q522-B
2.0Vp-p
(H)(H)
IC351-8
100Vp-p
IC351-7
80Vp-p
IC351-9
130Vp-p
(H)
IC701-85
1.4Vp-p
IC701-86
1.4Vp-p
(H)
(H)
(0.2 µ s) (0.2 µ s)
(H)
(V)
IC401-7
-MAIN PWB-
-CRT SOCKET PWB-

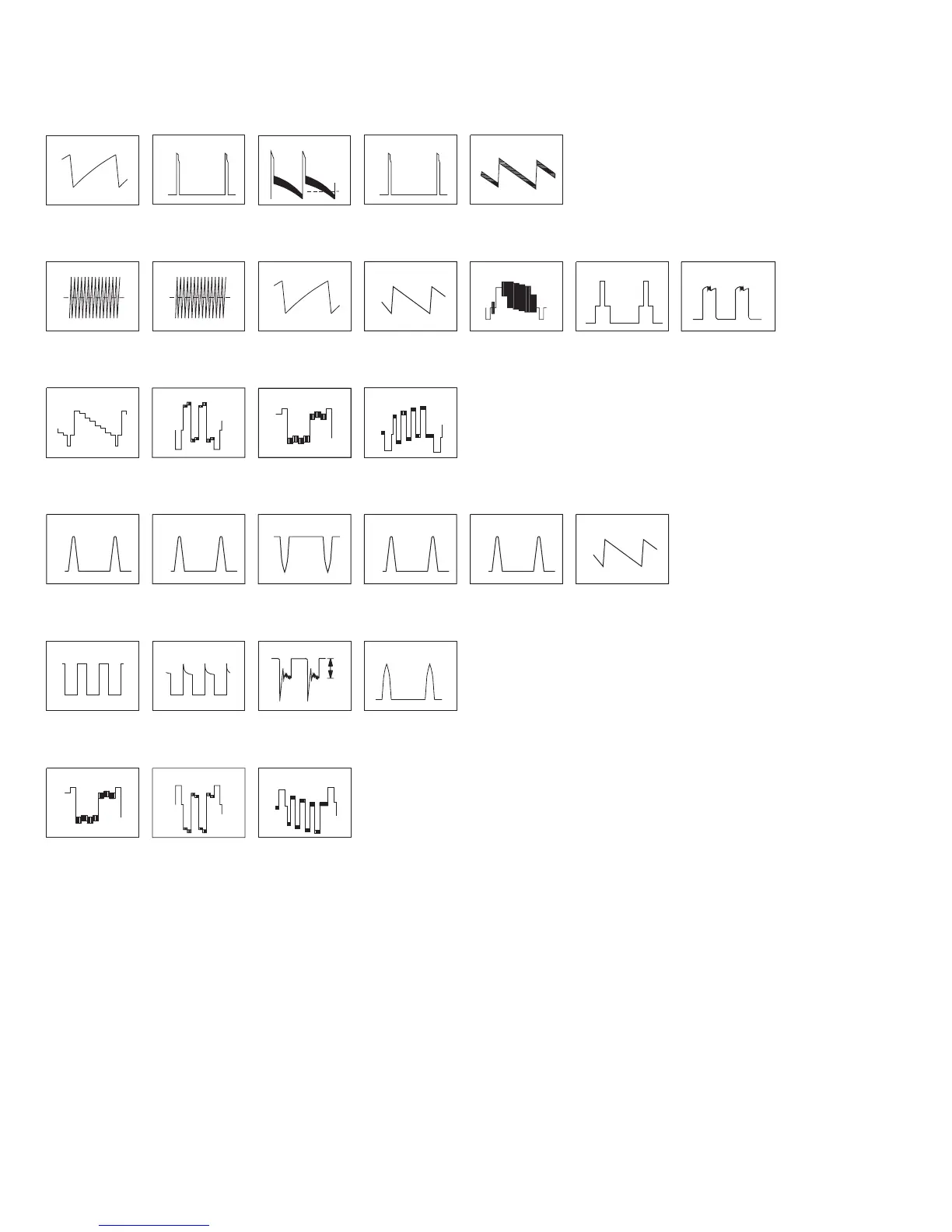

WAVEFORMS
