STANDARD CIRCUIT DIAGRAM
n
NOTE :
1.
RESISTANCE IS SHOWN IN OHM. K=1000, M=1000000
2.
UNLESS OTHERWISE NOTED IN SCHEMATIC ALL CAPACITOR VALUES ARE EXPRESSED IN
Ê
ÊÊ
Ê
F
3.
VOLTAGES READ WITH VTVM FROM POINT INDICATED TO CHASSIS GROUND USING A COLOR BAR SIGNAL
WITH ALL CONTROLS AT NORMAL LINE 230V AC VOLTAGE READINGS SHOWN ARE NORMAL VALUES AND MAY
VARY +20% EXCEPT H.V
4.
THIS CIRCUIT DIAGRAM IS A STANDARD ONE CIRCUIT PRINTED MAY BE SUBJECT TO CHANGE FOR PRODUCT
IMPROVEMENT WITHOUT PRIOR NOTICE.
n
WARNING :
BEFORE SERVICING THE CHASSIS, READ X-RAY RADIATION, SAFETY PRECAUTION, AND PRODUCT
SAFETY NOTICE IN SERVICE MANUAL.
n
PRODUCT SAFETY NOTE :
COMPONENTS MARKED WITH
!
!!
!
ARE IMPORTANT FOR MAINTAINING.
THE SAFETY OF THE SET AND SHOULD BE REPLACED ONLY WITH TYPES IDENTICAL TO THOSE IN THE
ORIGINAL OR SPECIFIED ONE IN THE PARTS LIST.
DONT DEGRADE THE SAFETY THROUGH IMPROPER SERVICING.
n
CAUTION TO SERVICE TECHNICIANS :
BEFORE RETURNING THE RECEIVER TO CUSTOMER, LEAKAGE CURRENT OR RESISTANCE MEASUREMENTS
SHOULD BE PERFORMED TO DETERMINE THAT EXPOSED PARTS ARE PROPERLY INSULATED FROM THE
SUPPLY CIRCUIT.
CONTENTS
n
BLOCK DIAGRAM
2-2
n
CIRCUIT DIAGRAM
2-3
n
PATTERN DIAGRAMS
2-7
RESISTOR CAPACITOR COIL
REVISED
Please throw it out the service manual for AV-28BD5EKI/EKIS/EP/EPS/EE/EES issued in
Jun. 2000,and use this service manual (No.51709 Oct. 2000).
2-2
Oct. 2000 No.51709

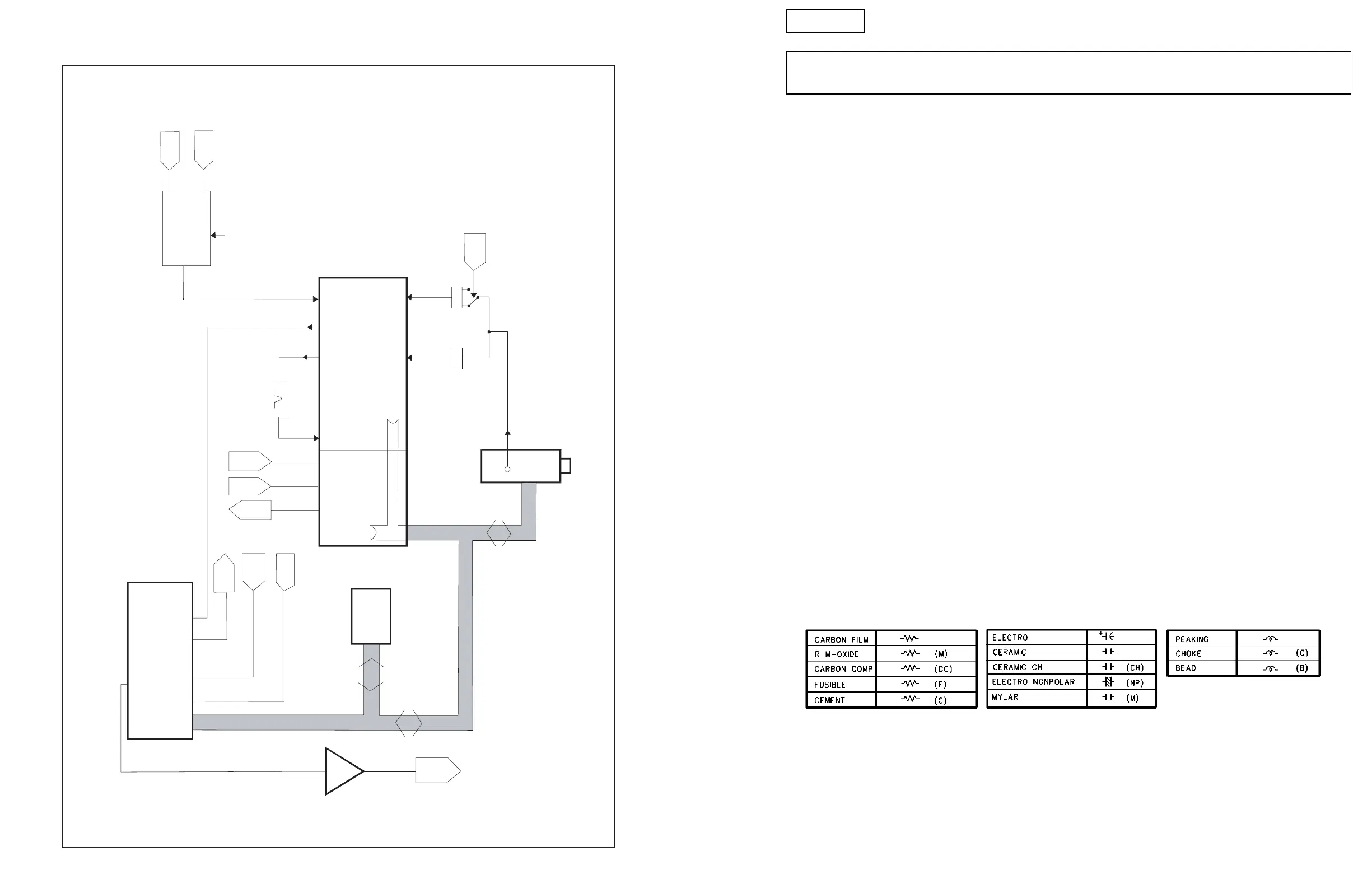

BLOCK DIAGRAM
BASE BAND SIGNAL
#28
#29
#49
#50
#52
#53
#36
#37
#58
SOUND PROCESSOR I601
AUDIO OUT
SCART1
AUDIO IN
SCART2
AUDIO
SCART1
I602
AUDIO
AMPLIFIER
TO SPEAKERS/
HEAD PHONE
I702
MEMORY
II C BUS
VIDEO PROCESSOR
I501
#51
#52
#53
#46
#47
#48
#43
#40
#2 #3
MICRO CONTROLLER
TO CRT BOARD
VIDEO
IN
VIDEO
OUT
QSS
OUT
EXIT
VIDEO IN
#38
#35
#42
#23
#24
#28
#29
IF
VIDEO IF
IF=38.9MHz(All standard except L’)
=33.9MHz(L’)
SF1
SF2
AUDIO IF
#4-I501
RGB OUT
EXT RGB IN
CHROMA IN
TRAP 5.5MHz
SIF(5.5MHz for system B/G)
SWITCHING
CURCUIT
VIDEO IN
SCART1
SCART2
SWITCH CONTROL
form #8-I501
and #-8 SCART1
To Next Page
