AV-28BD5EKI AV-28BD5EP AV-28BD5EE
AV-28BD5EKIS AV-28BD5EPS AV-28BD5EES
AV-28BD5EKI AV-28BD5EP AV-28BD5EE
AV-28BD5EKIS AV-28BD5EPS AV-28BD5EES
No.51709
No.51709
2
DIFFERENCE LIST
! SYMBOL
AV-28BD5EP/EPS AV-28BD5EKI/EKIS AV-28BD5EE/EES
!
CRT(ITC) 4859622160
!
POWER CORD 4859906210 4859906310 4859906210
PWB ASSY PTMPMSE80FJW PTMPMSE83FJW
I501 1DW3653BE3 1DW3653BD3
2-3 2-4

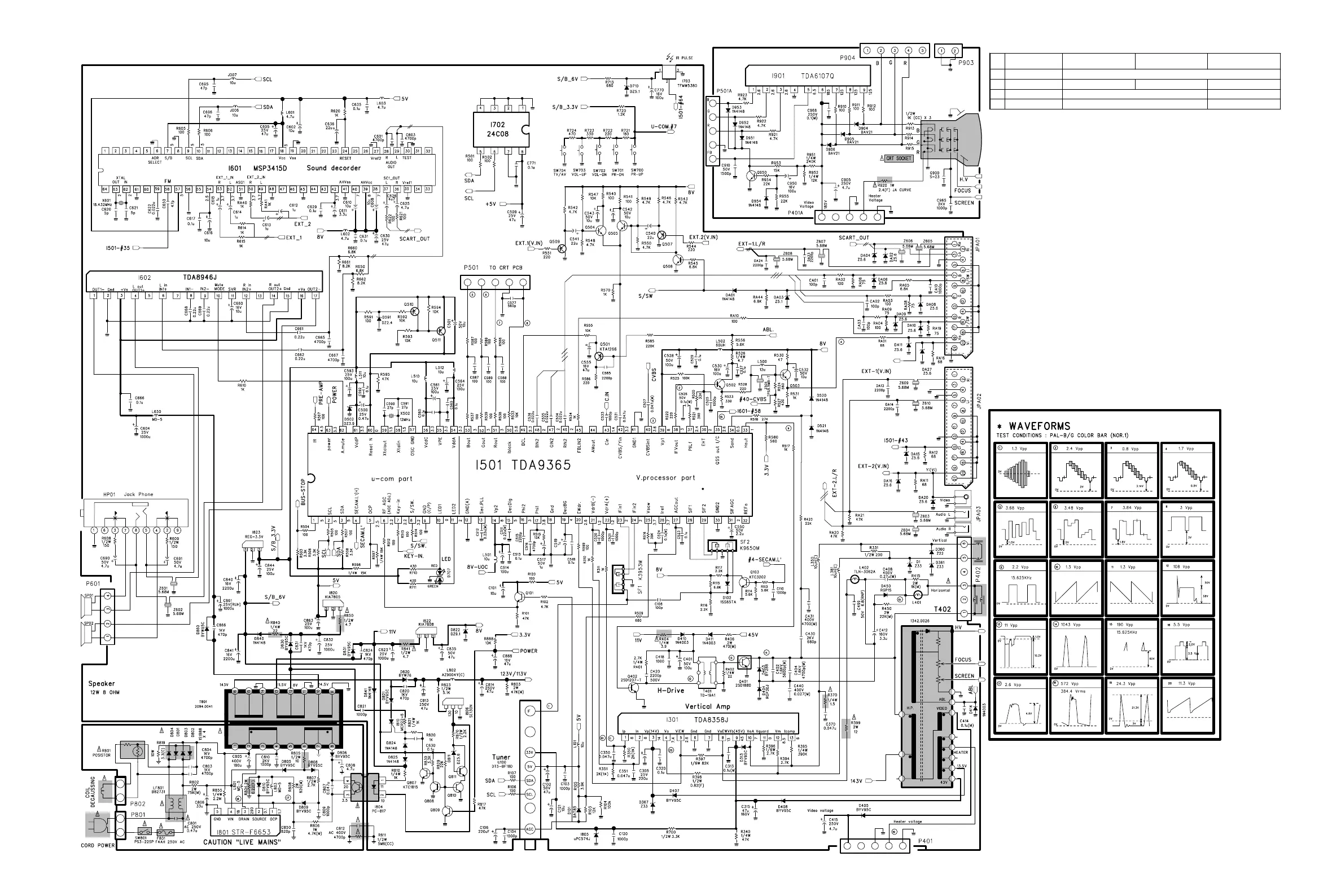

CIRCUIT DIAGRAM
