21-pin Euro connector (SCART socket)

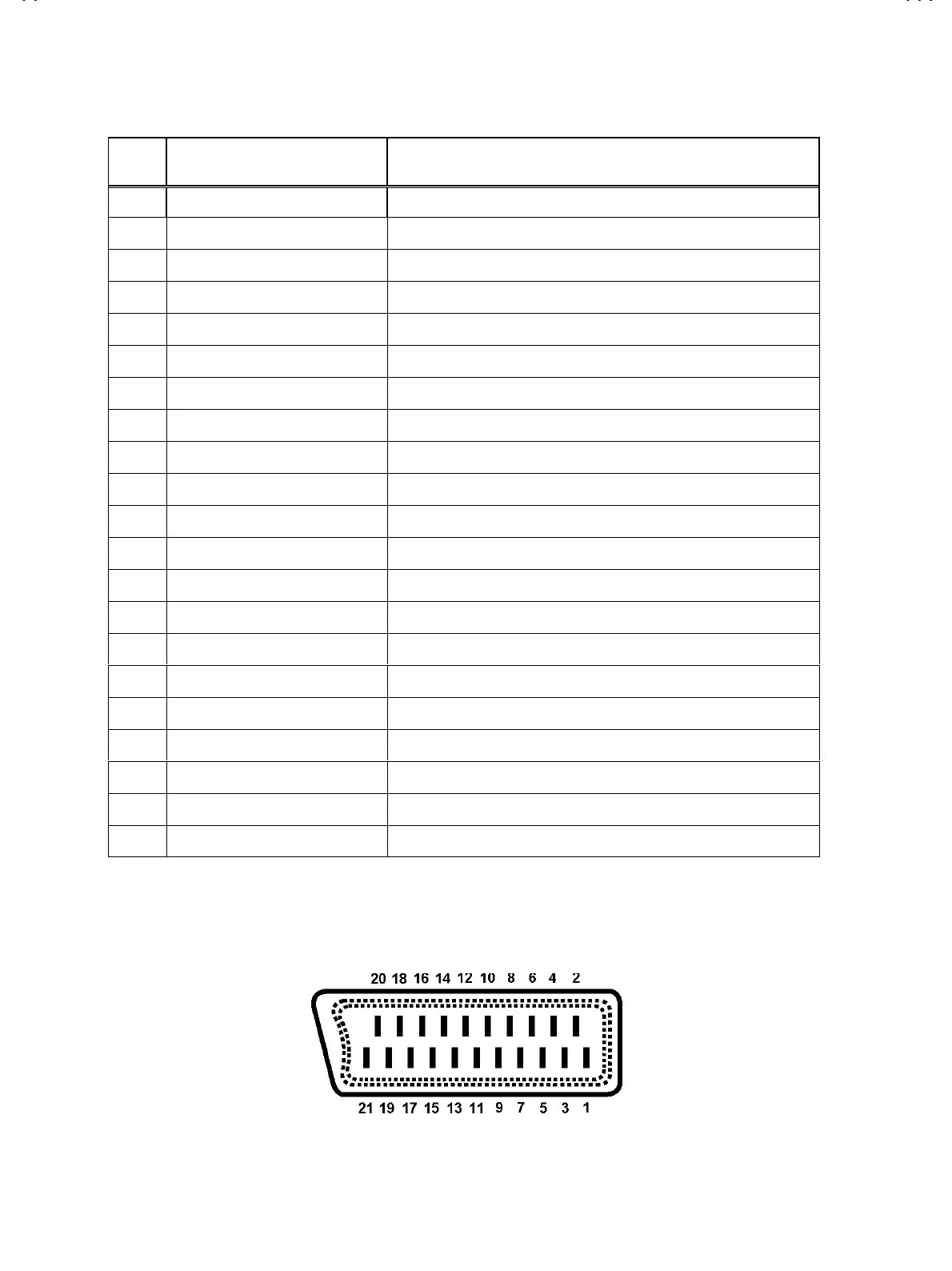

21Pin EURO-SCART 1:
Pin
No.
Signal Designation Matching Value
1 Audio Output Right
0.5V(rms), Imp<1k
Ω
(RF 54% MOD)
2 Audio Input Right 0.5V(rms), Imp>10k
Ω
3
Audio Output

Left
0.5V(rms), Imp<1k
Ω
(RF 54% MOD)
4Audio Earth
5Blue Earth
6 Audio Input Left
0.5V(rms), Imp>10k
Ω
7Blue Input
0.7V(p-p)
±
0.1V, Imp75
Ω
8 Slow Switching TV : 0-2V, AV 16/9 : 4.5-7V, AV 4/3 : 9.5-12V, Imp>10k
Ω
9 Green Earth
10 NC
11 Green Input 0.7V(p-p)
±
0.1V, Imp 75
Ω
12 NC
13 Red Earth
14 Blanking Earth
15 Red Input
0.7V(p-p)
±
0.1V, Imp 75
Ω
16 Fast Switching
0-0.4V : Logic “0”, 1-3V : Logic “1”, Imp75
Ω
17 Video Out Earth
18 Video In Earth
19 Video Output
1V(p-p)
±
3dB, Imp75
Ω
20 Video Input 1V(p-p)
±
3dB, Imp75
Ω
21 Common Earth
[
Pin assignment
]
