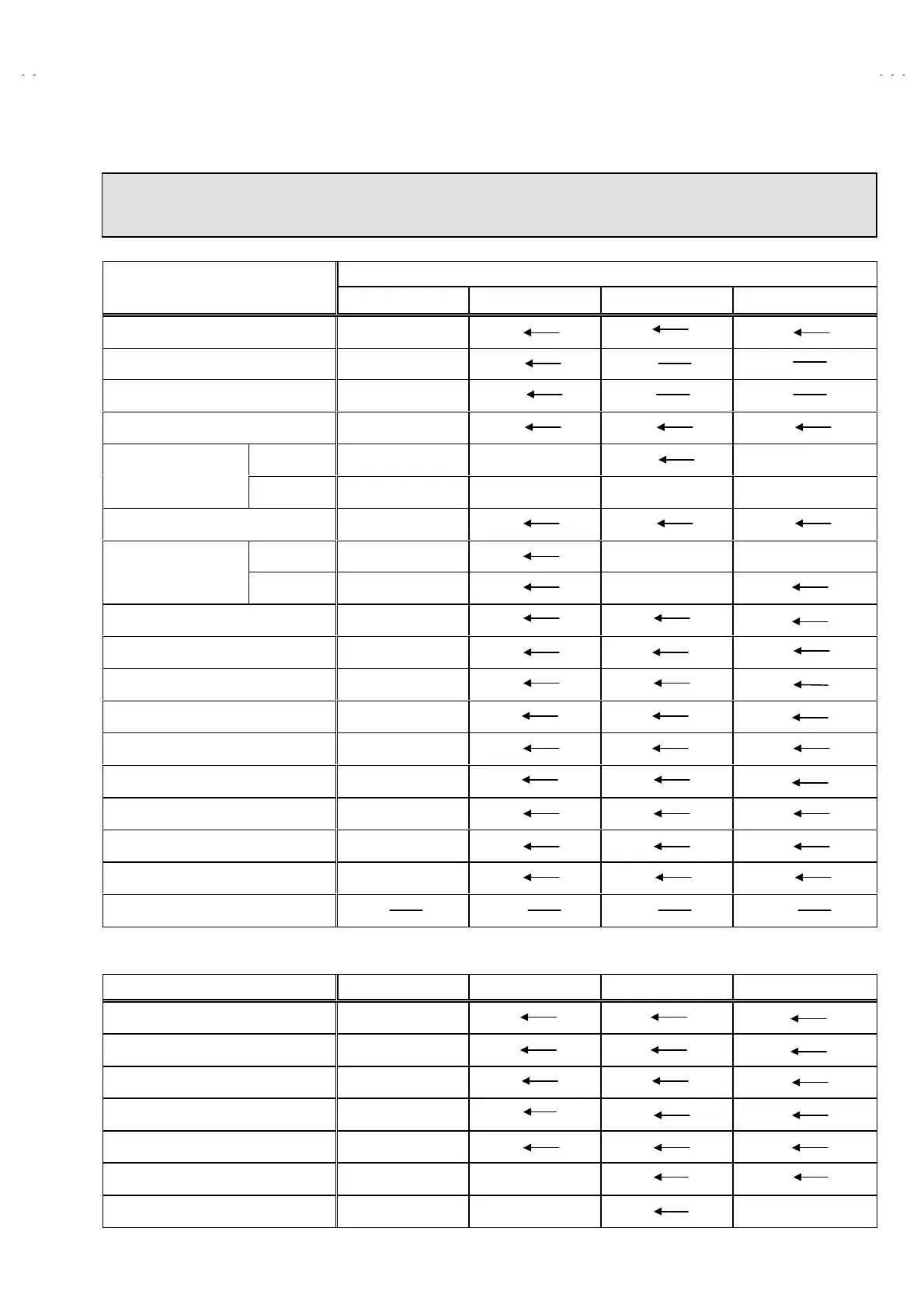

PRESET ADJUSTMENT
x
The items in the following table, it is no requirement for adjustment.
x
If values had changed by the miss operation, set the initial setting values in the following table.
z
COLOUR SYSTEM
(DO NOT ADJUST)
Initial setting value (Fixed value)
Setting item
PAL SECAM NTSC 3.58 NTSC 4.43
1. C TRAP FIX
+ 1
2. SHARP PEAK
+ 0
3. ABL
+ 1
4. GAMMA
+ 0
TV
+ 1 + 2 + 3
5. Y. DELAY
TIME
VIDEO
+ 0+ 2+ 0 + 2
6. BLACK EXP START
+ 3
TV
+ 1 + 0 + 0
7. C-BPF
VIDEO
+ 1 + 1
8. CW / SCP
+ 0
9. VIF DET LEVEL
+ 0
11. IF AGC MIN
+ 0
12. VIF AGC
+ 0
13. VIF PMOD
+ 0
19. VNR
+15
20. RGB LIM
+ 1
21. RGB LIMIT LEVEL
+ 2
23. TEXT H. POSITION
+ 5
24. READ DATA
z
SOUND SYSTEM
(DO NOT ADJUST)
Setting item B/G
Ⅰ
ⅠⅠ
Ⅰ
D/K M
10. SIF DET LEVEL
+ 0
14. SIF BPF BW ADJUST
+ 0(-)
15. SIF TRAP FO ADJUST
+ 0(-)
16. SIF TRAP FO ADJUST 2
+ 0(-)
17. SIF TRAP
+ 0
18. SIF BPF
+ 1 + 0
22. SIF SW
+ 1 + 1 + 0
