JVC AV-A14M3 User Manual

No. 51669
A
V-A14M3
A
V-A14T3
A
V-A14AU3
A
V-1413EE
22
Item
Measuring
instrument
Test point Adjustment part Description
6. TINT [Method of adjustment without measuring instrument]
NTSC 3.58 TINT
(NTSC 3.58 TINT)
1. At RF or video terminal, receive a NTSC 3.58 video colour bar
signal full field colour bar signal (75% white).
2. Select
2. V/C
from SERVICE MENU.
3. Select
6. TINT
with the MENU
▼
/
▲
key.
4. Set the initial setting value of NTSC 3.58 with the MENU - or +
key.
5. If you cannot get the best tint with the initial setting value,
make fine adjustment until you get the best tint.
Adjustment
of TINT
Ⅰ
ⅠⅠ
Ⅰ
z
Remote
control
unit
(NTSC 4.43 COLOUR)
When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the
respective values.
6. TINT [Method of adjustment using measuring instrument]
NTSC 3.58 TINT
(NTSC 3.58 TINT)
1. At RF or video terminal, receive a NTSC 3.58 full field video
colour bar signal(75% white).
2. Select
2. V/C
from SERVICE MENU.
3. Select
6. TINT
with the MENU
▼
/
▲
key.
4. Set the initial setting value of NTSC 3.58 with the MENU - or +
key.
5. Connect the oscilloscope between TP-47G and TP-E.

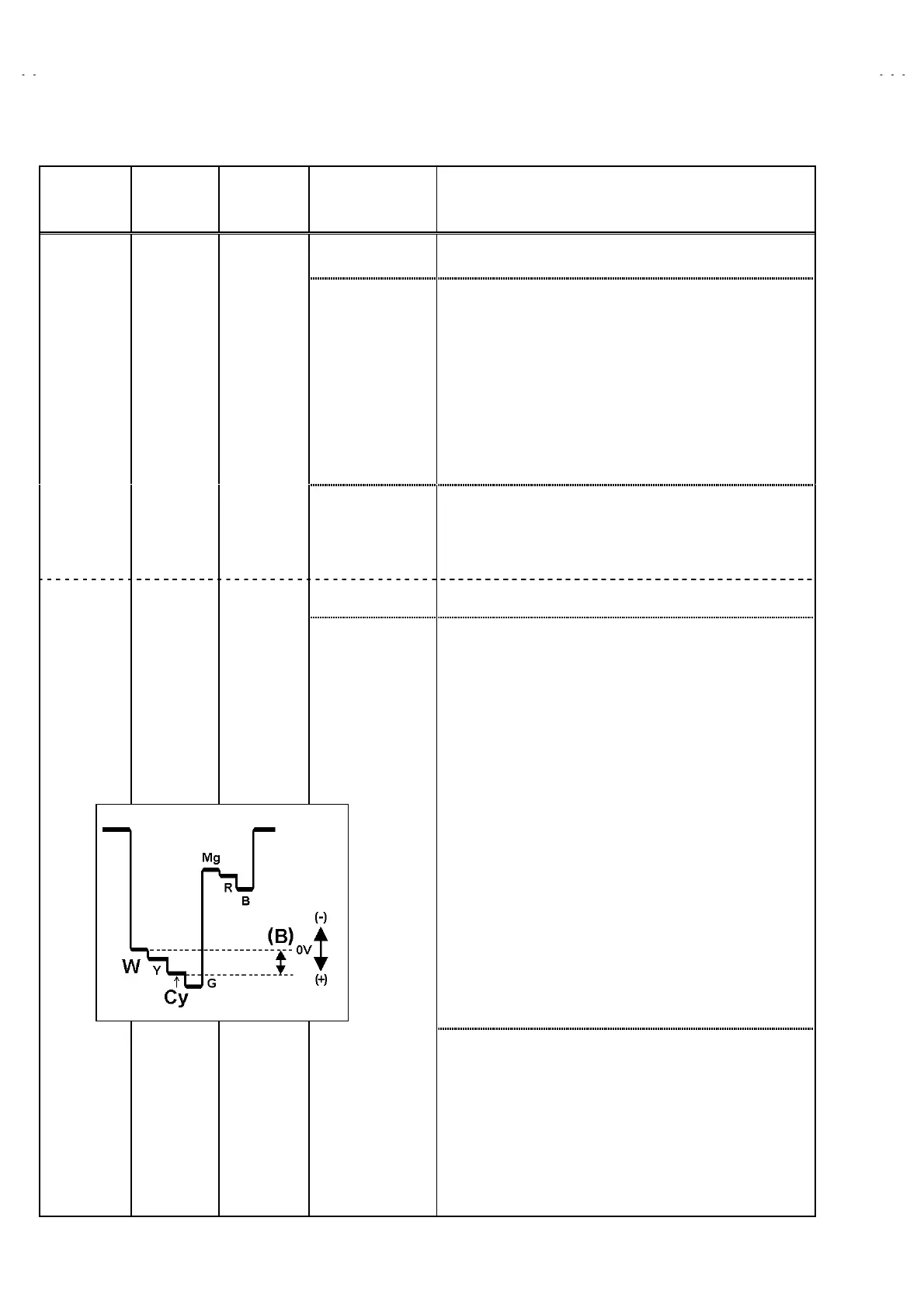

6. Adjust NTSC 3.58 TINT to bring the value of
(B)
in the
illustration to
+5V (W & Cy)
.
Adjustment
of TINT
Ⅱ
ⅡⅡ
Ⅱ
z
Signal
generator
z
Oscillo-
scope
z
Remote
control
unit
TP-47G / B
TP-E (



)
[CRT
SOCKET
PWB]
(NTSC 4.43 TINT)
When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the
respective values.
