5
English
CAUTION: Make all connections before plugging the Unit into an AC power outlet.

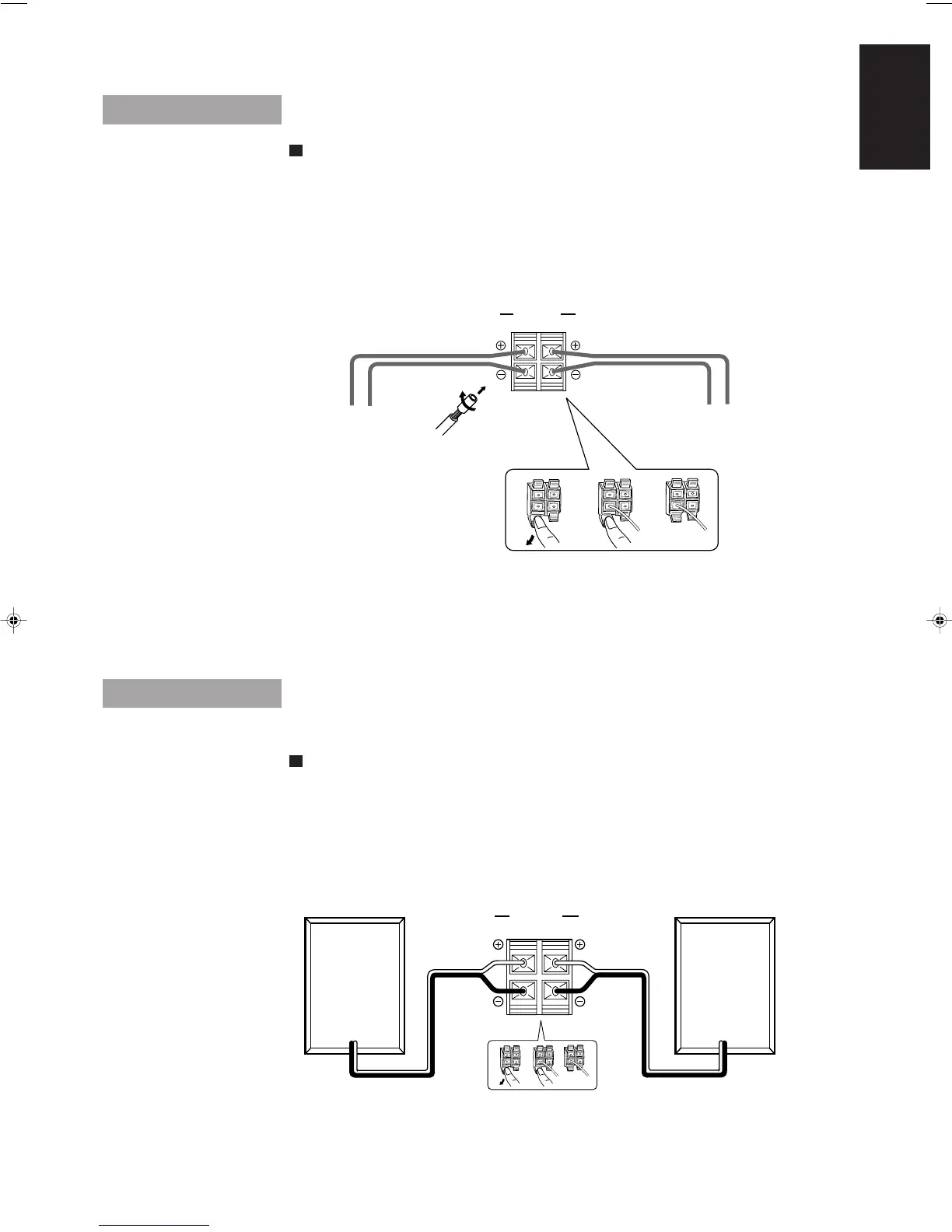

Connecting the Speakers (CA-D501T)
Please refer to instructions for speakers as well when you connect speakers.
For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the
CA-D501T and the other end to the speaker.
1. Open each of the terminals and insert the speaker wires firmly (be sure to remove the insulation at the
end of each wire first), then close the terminals.
2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–)
terminals marked RIGHT on the CA-D501T.
Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–)
terminals marked LEFT on the CA-D501T.
SP-D401/SP-D311 LEFT
SP-D401/SP-D311 RIGHT
IMPORTANT: Use speakers with the correct impedance only. The correct impedance is
indicated on the back panel.
CAUTION: If a TV is installed near speakers, the TV may display irregular colours. In this
case, set the speakers away from the TV.
Connecting the Speakers (MX-D401T/
MX-D301T)
Please refer to instructions for speakers as well when you connect speakers.
For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the System.
1. Open each of the terminals and insert the speaker wires firmly, then close the terminals.
2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–)
terminals marked RIGHT on the System.
Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–)
terminals marked LEFT on the System.
IMPORTANT: Use speakers with the correct impedance only. The correct impedance is
indicated on the back panel.
CAUTION: If a TV is installed near speakers, the TV may display irregular colours. In this
case, set the speakers away from the TV.
Right speaker
RIGHT LEFT
SPEAKERS
Left speaker
CA-D301/401/501T[U]/EN 97.7.15, 6:05 PM5
