(No.MB531)1-11

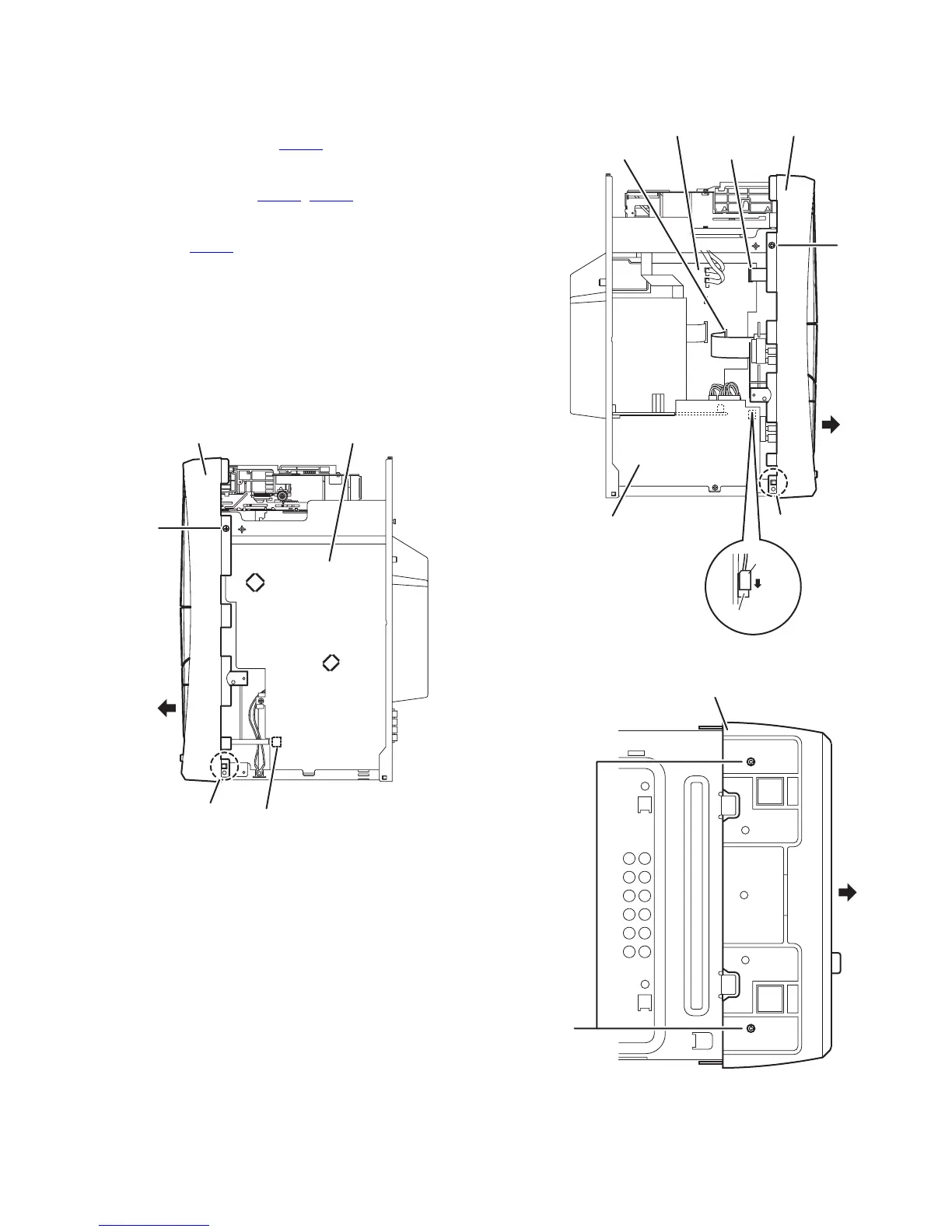

3.1.2 Removing the front panel assembly
(See Fig.3 to 5)
• Remove the metal cover.
(1) From the right side of the main body, disconnect the card
wire from the connectors CN740
on the reverse side of the
main board. (See Fig.3)
(2) From the left side of main body, disconnect the card wires
from the connectors (CN720
, CN730) on the forward side
of the main board. (See Fig.4)
(3) Disconnect the parallel wire while releasing the lock of the
connector CN105
on the primary board in the direction of
the arrow. (See Fig.4)
(4) From the both side of the main body, remove the two
screws C attaching the front panel assembly to the main
body. (See Fig.3, 4)
(5) From the bottom side of the main body, remove the two
screws D attaching the front panel assembly. (See Fig.5)
(6) From the both side of main body, release the claws a and
remove the front panel assembly from the main body in the
direction of the arrow. (See Fig.3, 4)
Fig.3
Fig.4
Fig.5
Front panel assembly Main board
CN740
a
C
CN730 CN720
Primary board
Front panel assemblyMain board
C
a
CN105
Lock
Front panel assembly
D
To Next Page
