3.1.3 Removing the tuner
(See Fig.6)
• Remove the metal cover.
(1) From the back side of the main body, remove the two
screws E attaching the tuner to the rear panel.
(2) Take out the tuner from the main body and disconnect the
card wire from the connector CN1
on the tuner.

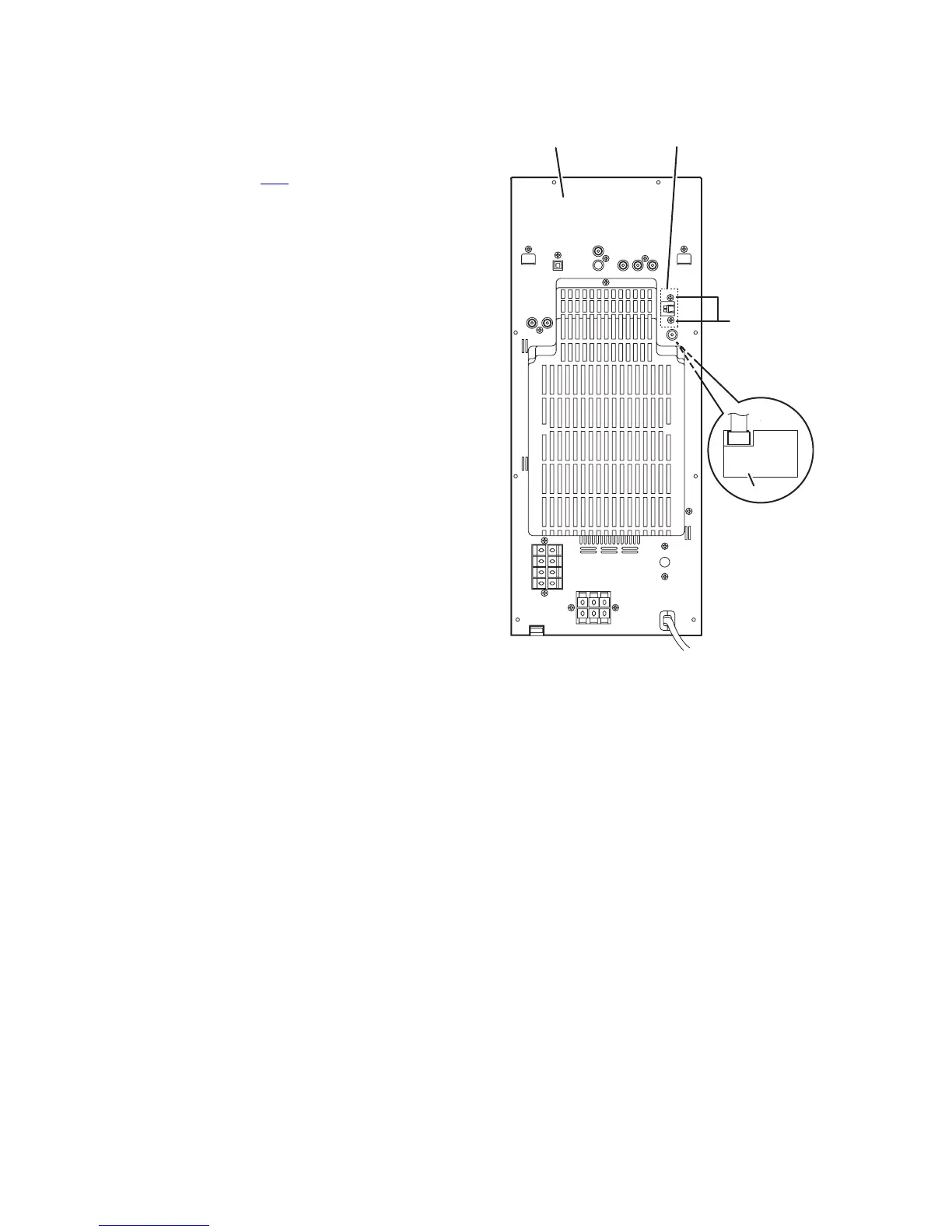

Fig.6
E
Tuner
CN1
Tuner
Rear panel
