5
CAUTION: Make all connections before plugging the Unit into an AC power outlet.

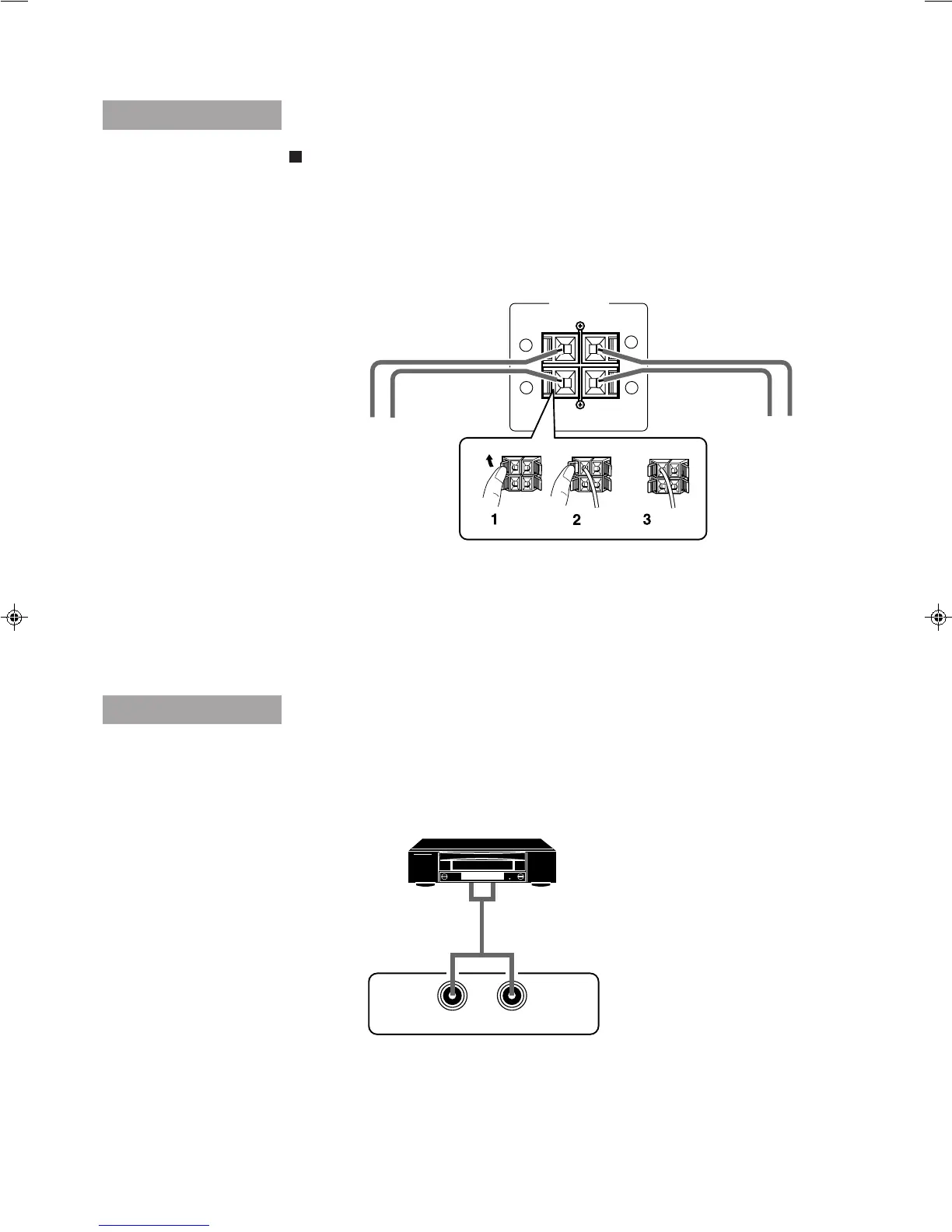

Connecting the Speakers
Please refer to instructions for speakers as well when you connect speakers.
For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the System.
1. Open each of the terminals and insert the speaker wires firmly, then close the terminals.
2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–)
terminals marked RIGHT on the System.
Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–)
terminals marked LEFT on the System.
CAUTION:
SPEAKER IMPEDANCE
6 – 16 OHMS.
SPEAKERS
RIGHT LEFT
+
–
+
–
Right Speaker Left Speaker
Now you can plug the AC power cord into the wall outlet, and your System is
at your command!
Connecting Auxiliary Equipment
LEFTRIGHT
AUX
IMPORTANT: Use speakers with the correct impedance only. The correct impedance is
indicated on the back panel.
CAUTION: If a TV is installed near speakers, the TV may display irregular colours. In this
case, set the speakers away from the TV.
VCR or other equipment
To listen to this source, press the AUX button.
EN01-28 MX-J10[B] 99.7.6, 10:38 AM5
