– 7 –
1

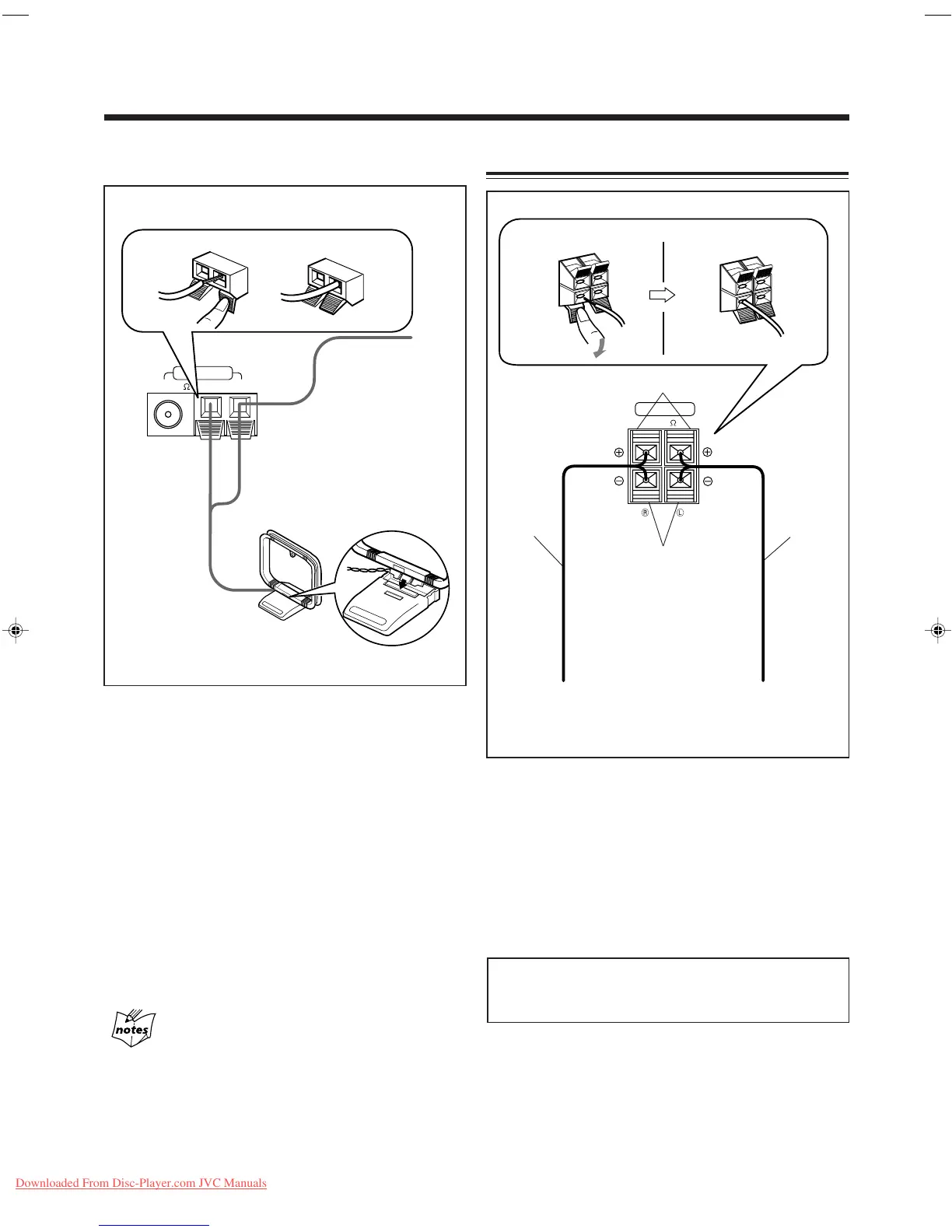

Press and hold the clamp of the AM terminal
on the rear of the unit.
2 Insert the end of the AM loop antenna cord
into the terminal.
3 Release the finger from the clamp.
4 Turn the AM loop antenna until you have the
best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM terminal and extend it horizontally. (The AM loop
antenna must remain connected.)
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
Connecting Speakers
Speaker
cord
(red/black)
1 Press and hold the clamp of the speaker
terminal on the rear of the unit.
2 Insert the end of the speaker cord into the
terminal.
Match the polarity (colors); Red (+) to red (+) and black
(–) to black (–).
3 Release the finger from the clamp.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.
ANTENNA
FM 75
AM
[ ]
Speaker
cord
(red/black)
from right
speaker's
terminals
Red
Black
from left
speaker's
terminals
1
2
6-16
[ ]
SPEAKER
1
2, 3
EN01-11.MX-K5[J]_f 01.1.29, 4:56 PM7
