5
English
AM
LOOP
GND
AM
EXT

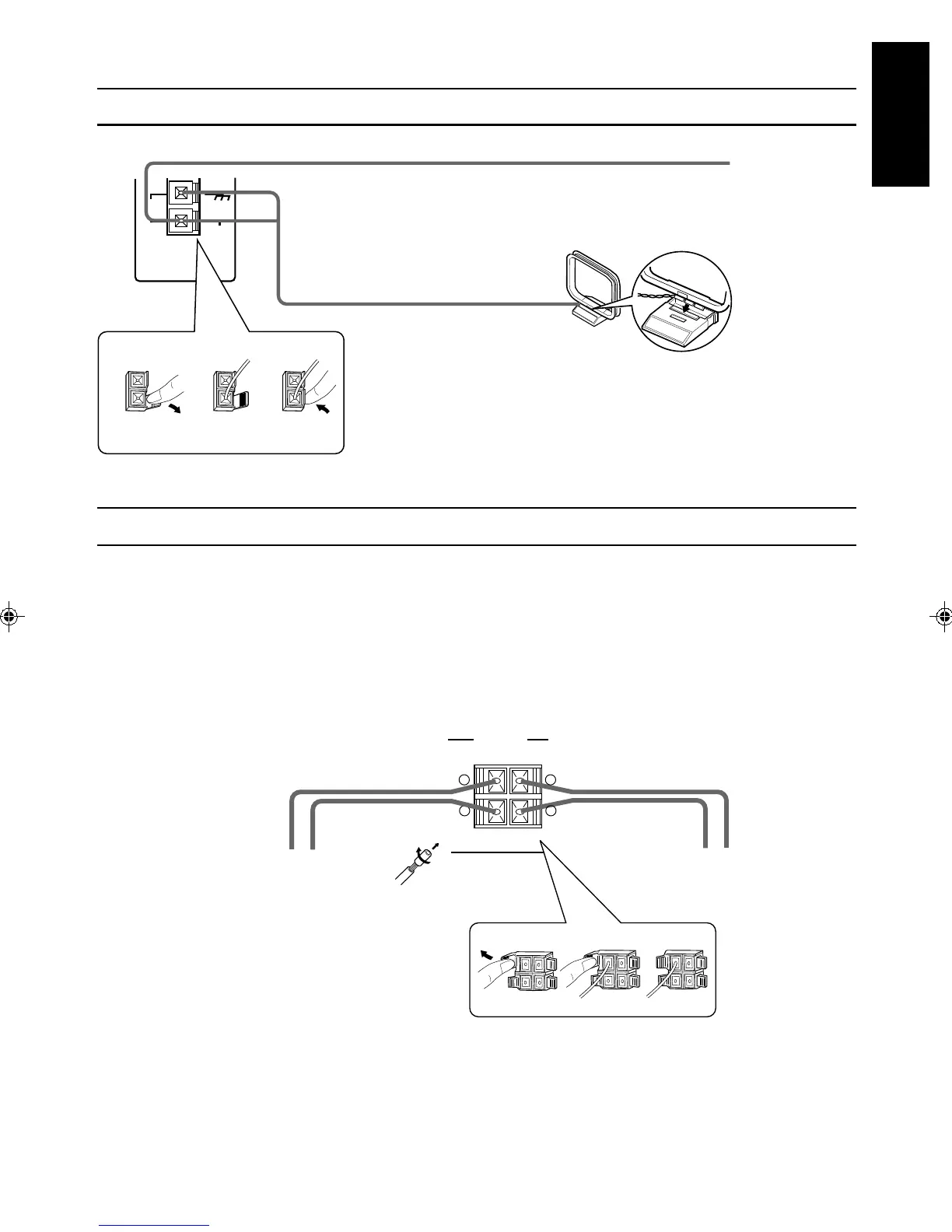

Connecting the Speakers
For each speaker, connect one end of the speaker wire to the speaker terminals on the back of the
CA-V808T and the other end to the speaker.
1. Open each of the terminals and insert the speaker wires firmly (be sure to remove the insulation
at the end of each wire first), then close the terminals.
2. Connect the red (+) and black (–) terminals of the right side speaker to the red (+) and black (–)
terminals marked RIGHT on the CA-V808T.
Connect the red (+) and black (–) terminals of the left side speaker to the red (+) and black (–)
terminals marked LEFT on the CA-V808T.
Note: Even when connecting
an outside AM antenna,
keep the indoor AM loop
connected.
AM Loop Antenna
Turn the loop until you
have the best reception.
Snap the tabs on the loop
into the slots of the base to
attach the AM Loop.
123
If reception is poor, connect the outside antenna.AM antenna wire (Not supplied)
CAUTION: Make all connections before plugging the Unit into an AC power outlet.
Connecting the AM Antenna
IMPORTANT: Use speakers with the correct impedance only. The correct impedance is indicated on
the back panel.
CAUTION: If a TV is installed near speakers, the TV may display irregular colors. In this case, set
the speakers away from the TV.
SPEAKERS
RIGHT LEFT
+
–
+
–
Left speaker
Right speaker
321
(Please refer to instructions for speakers as will when you connect speakers.)
To Next Page
