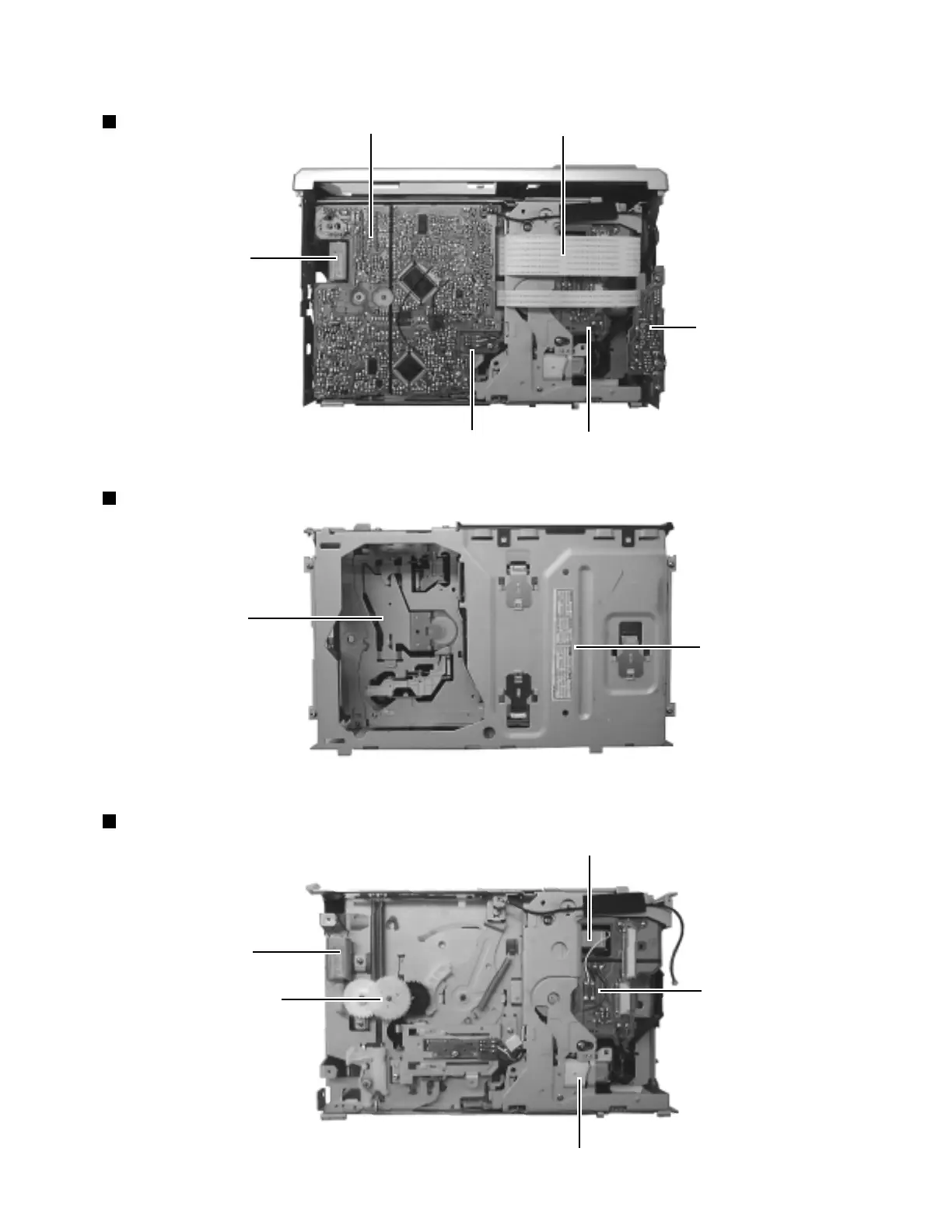

Location of main parts
Bottom view
Top side view
Remove the main board view
Main board ass'y Mechanism ass'y wire
Jack board ass'y
Mechanism board ass'ySensor board ass'y
Positioning
motor ass'y
Mechanism &
lifter unit
Positioning
motor ass'y
Feed motor
Spindle motor
Tray motorSensor board ass'y
Third gear
Magazine house
section
1‑3
