JVC COMPU LINK RX-305TN

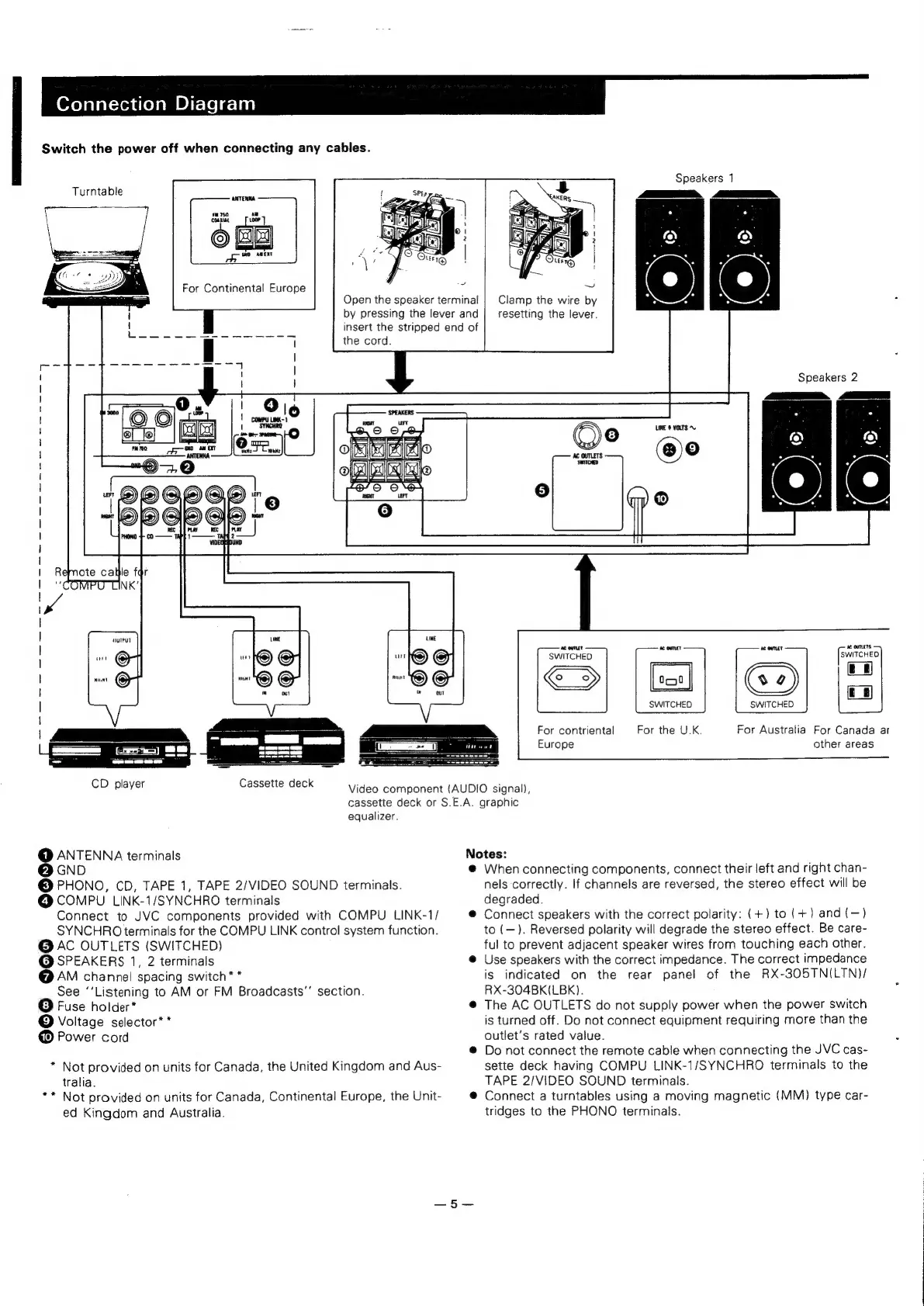

Connection Diagram
Switch the power off when connecting any cables.
Turntable
the cord.
Cassette deck
CD player
Open the speaker terminal
by pressing the lever and
insert the stripped end of
Speakers 1
Clamp the wire by
resetting the lever.
Speakers 2
ac ounuet
SWITCHED
SWITCHED
SWITCHED
For contriental For the U.K.
Video component (AUDIO signal),
cassette deck or S.E.A. graphic
equalizer.
@ ANTENNA terminals
@ GND
@© PHONO, CD, TAPE 1, TAPE 2/VIDEO SOUND terminals.
@ COMPU LINK-1/SYNCHRO terminals
Connect to JVC components provided with COMPU LINK-1/
SYNCHRO terminals for the COMPU LINK control system function.
@ AC OUTLETS (SWITCHED)
@ SPEAKERS 1, 2 terminals
@ AM channel spacing switch**
See ‘‘Listening to AM or FM Broadcasts’’ section.
© Fuse holder*
@ Voltage selector**
@ Power cord
* Not provided on units for Canada, the United Kingdom and Aus-
tralia.
** Not provided on units for Canada, Continental Europe, the Unit-
ed Kingdom and Australia.
Notes:
@ When connecting components, connect their left and right chan-
nels correctly. If channels are reversed, the stereo effect will be
degraded.
® Connect speakers with the correct polarity: (+) to (+) and(—)
to (—). Reversed polarity will degrade the stereo effect. Be care-
ful to prevent adjacent speaker wires from touching each other.
@ Use speakers with the correct impedance. The correct impedance
is indicated on the rear panel of the RX-305TNI(LTN)/
RX-304BK(LBK).
@ The AC OUTLETS do not supply power when the power switch
is turned off. Do not connect equipment requiring more than the
outlet’s rated value.
@ Do not connect the remote cable when connecting the JVC cas-
sette deck having COMPU LINK-1/SYNCHRO terminals to the
TAPE 2/VIDEO SOUND terminals.
@ Connect a turntables using a moving magnetic (MM) type car-
tridges to the PHONO terminals.
For Australia For Canada ar
Europe other areas
