JVC DX-J36UN Service Manual

(No.MB666<Rev.005>)1-13

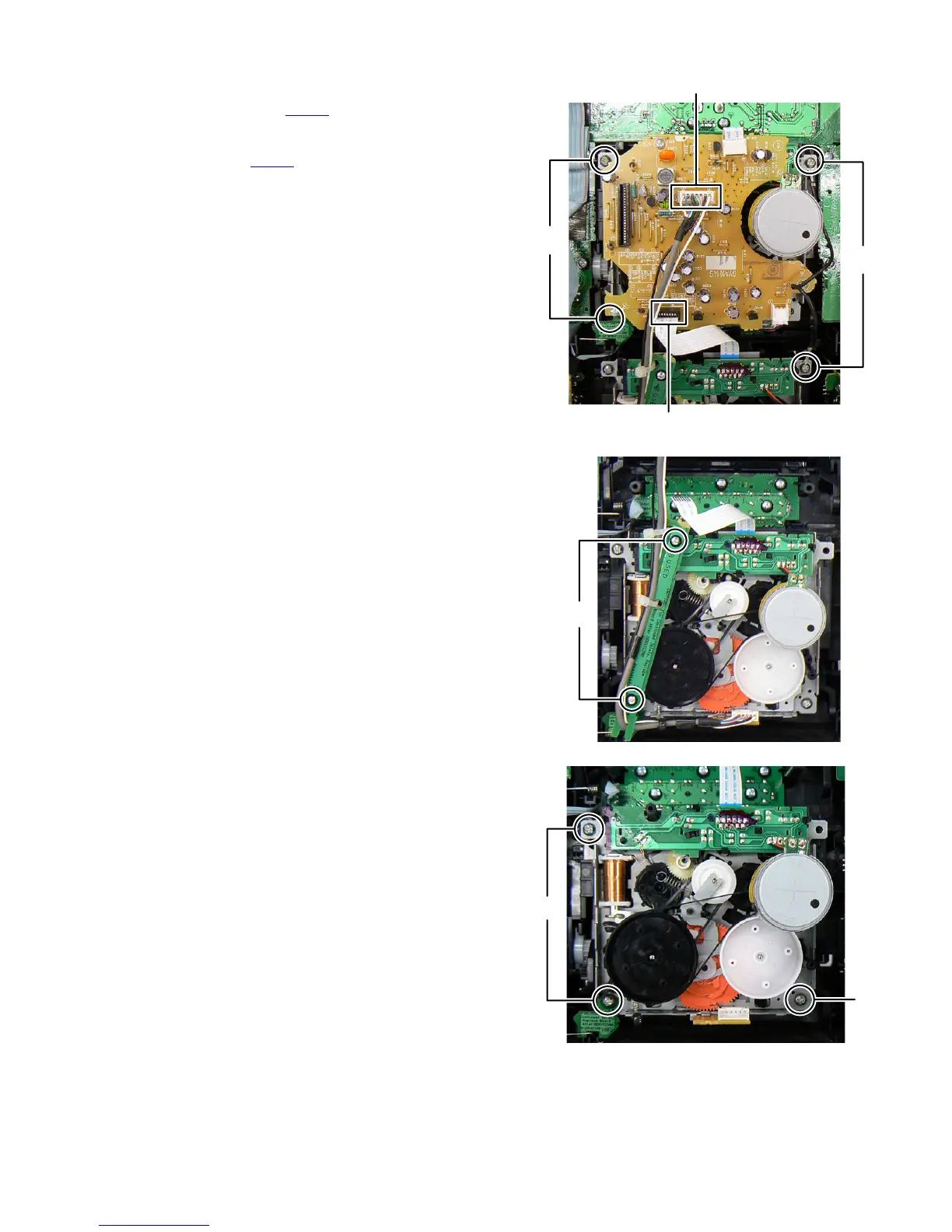

3.1.11 Removing the Cassette mechanism (See Fig.19 to 21)
(1) Disconnect the connector wire from Cassette mechanism
B connected to connector CN200
of the Cassette board A.
(See Fig.19)
(2) Disconnect the card wire from Cassette mechanism B con-
nected to connector CN120
of the Cassette board A. (See
Fig.19)
(3) Remove the two screws S attaching the Cassette mecha-
nism A. (See Fig.19)
(4) Remove the two screws T attaching the Earth wires. (See
Fig.19)
(5) Remove the two screws U attaching the Bracket board.
(See Fig.20)
(6) Remove the three screws V attaching the Cassette mech-
anism B. (See Fig.21)
Fig.19
Fig.20
Fig.21
CN200
CN120
S
T
U
V
V
