1-60 (No.MB531)

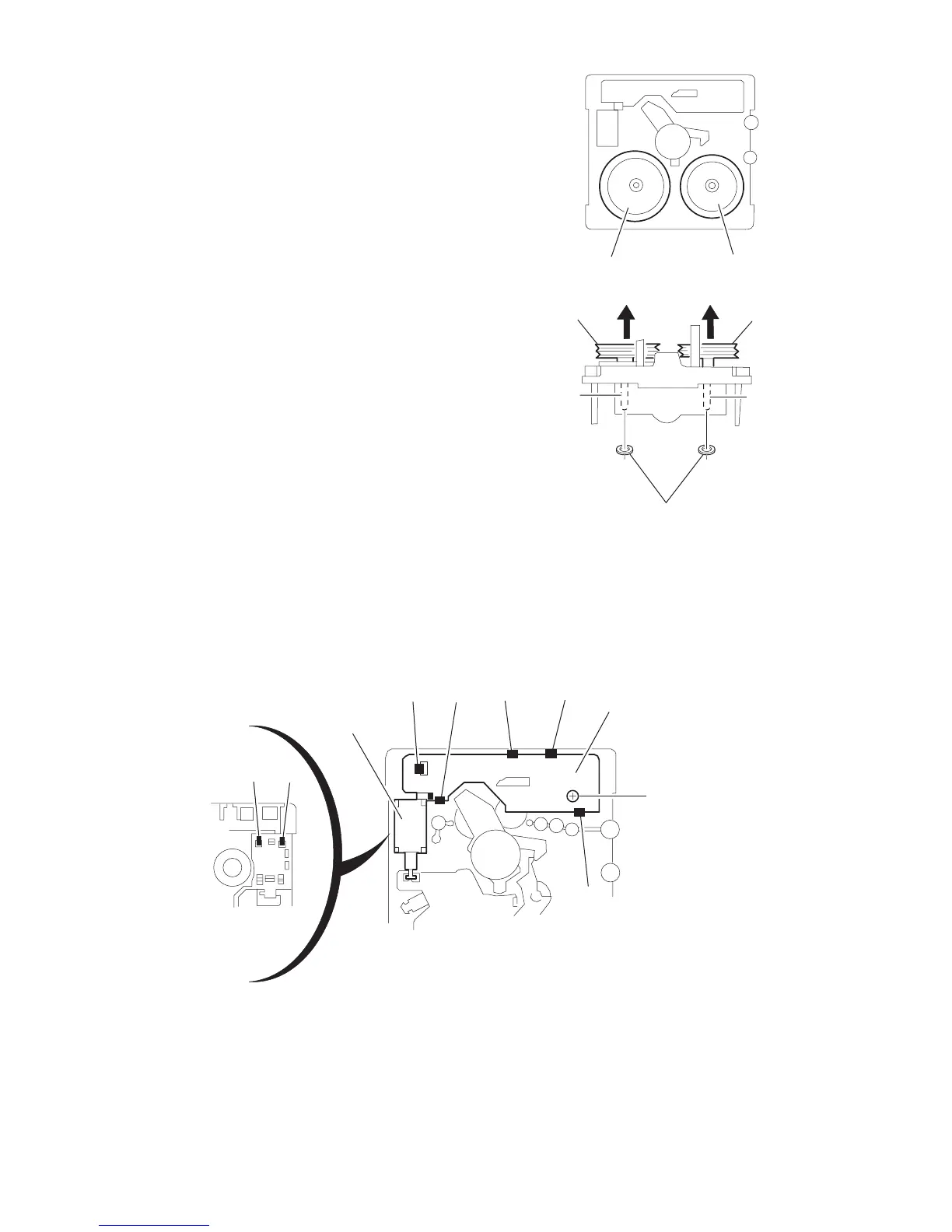

3.5.4 Removing the flywheel
(See Fig.8, 9)
• Prior to performing the following procedure, remove the head
amplifier & mechanism control board and the main motor as-
sembly.
(1) From the front side of the cassette mechanism, remove the
slit washers attaching the capstan shaft L and R. Pull out
the flywheels backward.
Fig.8
Fig.9
3.5.5 Removing the reel pulse board and solenoid
(See Fig.10)
• Prior to performing the following procedure, remove the head amplifier & mechanism control board.
(1) Remove the screw C.
(2) Release the tab a, b, c, d and e retaining the reel pulse board.
(3) Release the tab f and g attaching the solenoid on the reel pulse board.
(4) The reel pulse board and the solenoid come off.
Fig.10
Fly wheel R Fly wheel L
Capstan shaft R Capstan shaft L
Fly wheel R
Slit washer
Fly wheel L
a
f
g
bc
d
e
C
Reel pulse board
Solenoid
To Next Page
