JVC FS-8000 - Connecting the Fm Antenna; Connecting the am Antenna

3
English
CAUTION: Make all connections before plugging the System into an AC power outlet.

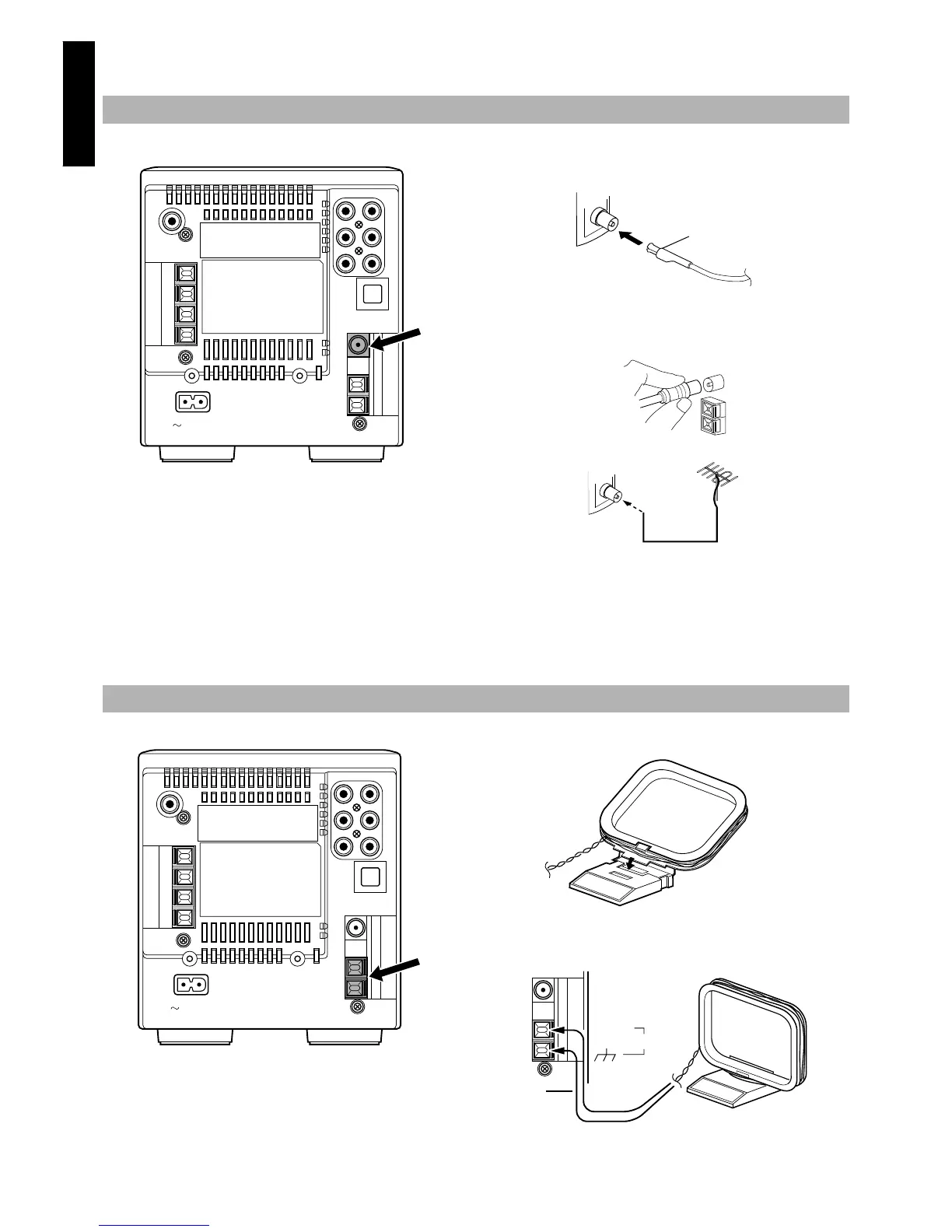

Rear Panel of the Unit
Using the Supplied Wire Antenna
Using the Coaxial Type Connector (Not Supplied)
A 75-ohm antenna with coaxial type connector should be connected
to the FM 75-ohm COAXIAL terminal.
If reception is poor, connect the outside antenna.
Note: Before attaching a 75 ohm coaxial lead (the kind with a
round wire going to an outside antenna), disconnect the sup-
plied FM Wire Antenna.
CAUTION: To avoid noise, keep antennas away
from the System, the connecting cord and the AC
power cord.
Rear Panel of the Unit
Connecting the FM Antenna
AC IN
R
L
FM wire antenna (supplied)
Coaxial cable
FM outdoor antenna
(option)
Connecting the AM Antenna
AC IN
R
L
Attach the AM loop to its base by snapping the tabs on the
loop into the slot in the base.
AM loop antenna (Supplied)
AM EXT
AM LOOP
Turn the loop until you have the best reception.
