3.1.10 CD changer mechanism assembly section
3.1.10.1 Removing the CD changer mechanism assembly
(See Fig.25 to 30)
• Prior to performing the following procedure, remove the side
panel (R)/(L), the top panel, the main board, the transformer
board, the fan, the amplifier board and the rear panel.
(1) From both side of the body, remove the four screws A' at-
taching the CD changer mechanism cover and detach it in
the direction of the arrow.
Reference:
To reattach the CD changer mechanism cover, fit the
four point f of the CD changer mechanism cover to the
four point g of the base chassis as shown in Fig.27.
(2) From the front side of the body, remove the two screws B'
attaching the CD changer mechanism assembly.
(3) From the back of the body, remove the two screws D' at-
taching the CD changer mechanism assembly.
(4) Remove the CD changer mechanism assembly in the di-
rection of the arrow while pulling the front and rear brackets
outward.

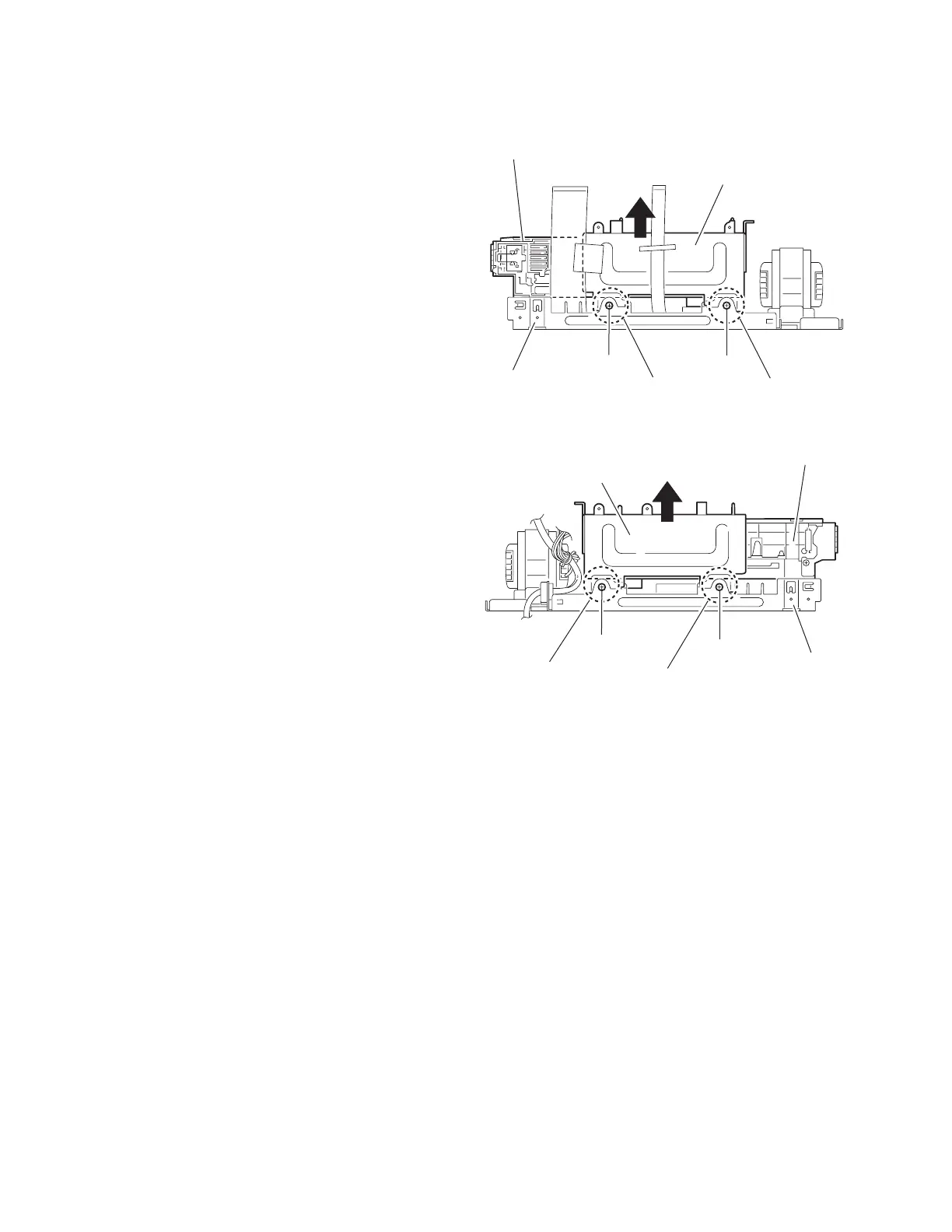

Fig.25
Fig.26
CD changer mechanism assembly
CD changer mechanism cove
r
Base chassis
A'
A'
Point f , gPoint f , g
CD changer mechanism assembly
CD changer mechanism cover
Base chassis
A'
A'
Point f , g
Point f , g
