JVC FS-G5

(No.MB353)1-7
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the side panel (R)/ (L)
(See Fig.1 to 3)
(1) Remove the three screws A attaching the side panel (R) on
the back side and remove the screw A and B on the right
side.
(2) Remove the three screws A attaching the side panel (L) on
the back side and remove the screw A and B on the left
side.
(3) Remove the side panel (R) and (L) backward.

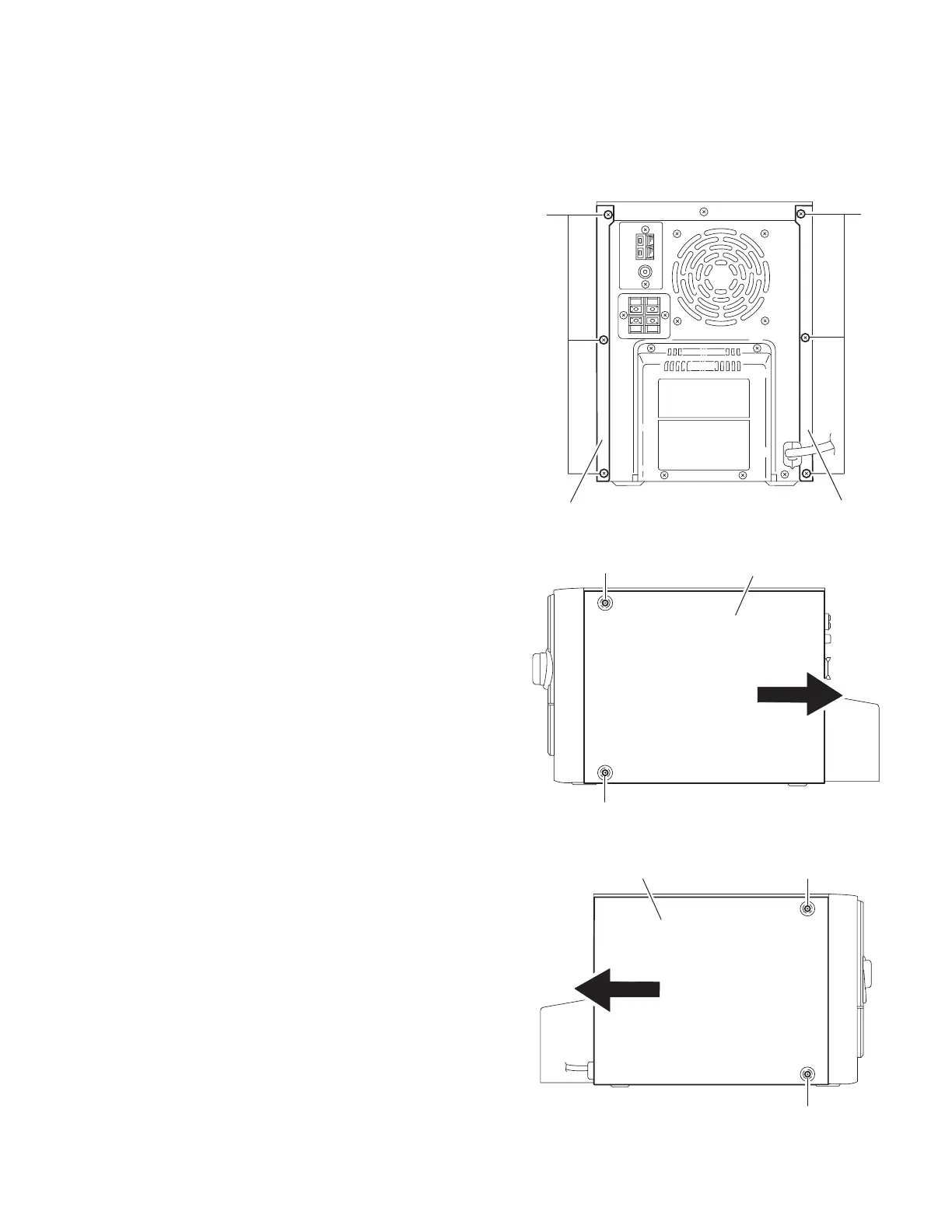

Fig.1
Fig.2
Fig.3
AA
Side panel (R)
Side panel (L)
A
B
Side panel (R)
A
B
Side panel (L)
