3.1.2 Removing the top panel
(See Fig.4 to 7)
• Prior to performing the following procedure, remove the side
panel (R)/(L).
(1) From the back of the body, remove the screw D attaching
the top panel.
(2) From each side of the body, remove the screw E attaching
the top panel.
(3) From each side of the body, release the two joints a of the
front panel assembly and top panel.
(4) Move the top panel in the direction of the arrow to release
the two joints b and remove the top panel backward.

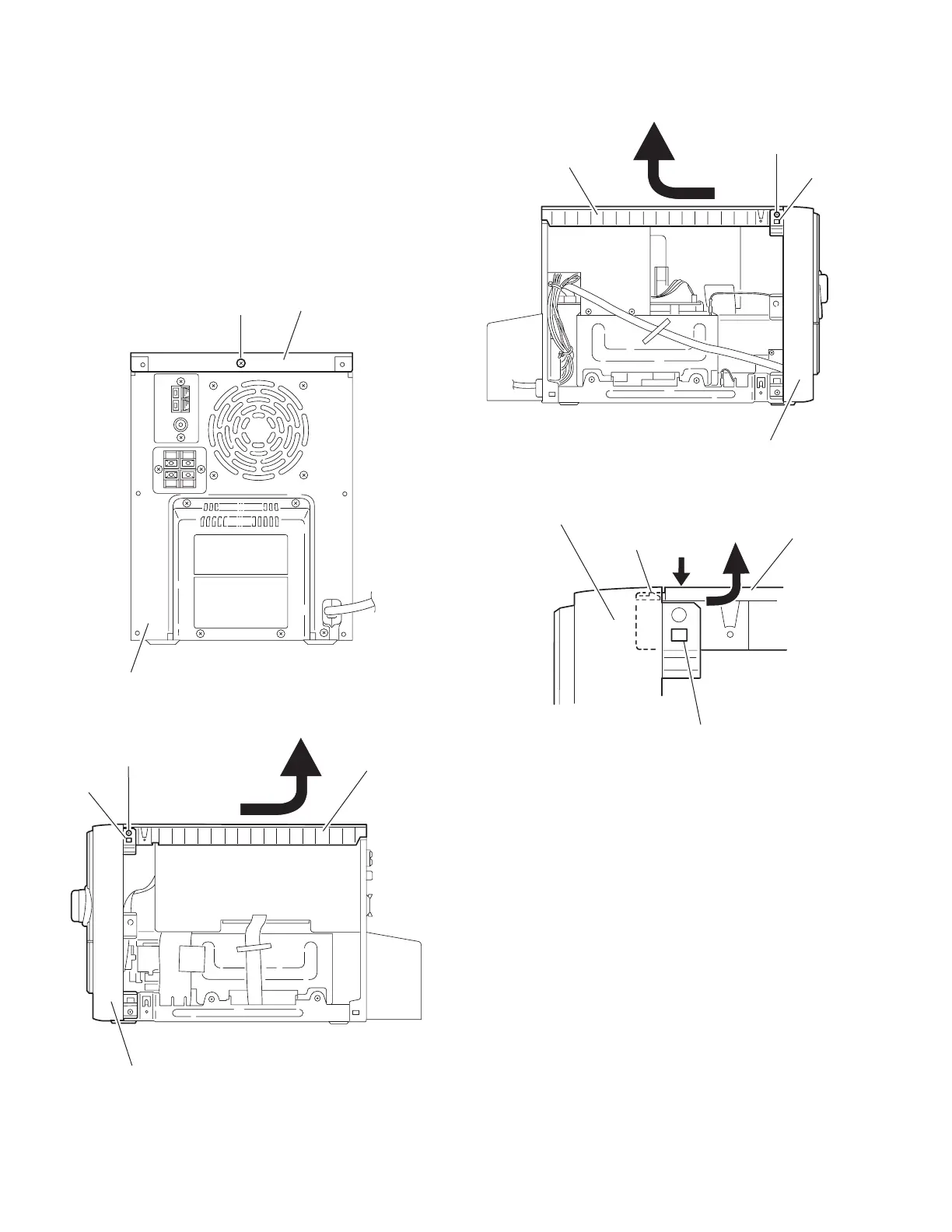

Fig.4
Fig.5
Fig.6
Fig.7
D
Top panel
Rear panel
E
Front panel assembly
Top panel
b
E
Front panel assembly
Top panel
b
b
Front panel assembly
Top panel
a
