JVC FS-G5

(No.MB353)1-9
3.1.3 Front panel assembly section
3.1.3.1 Removing the front panel assembly
(See Fig.8 to 10)
• Prior to performing the following procedure, remove the side
panel (R)/(L) and the top panel.
(1) From top of the body, disconnect the card wire from con-
nector CN402
on the main board and disconnect the wire
from connector CN671
.
(2) From rear left side of the body, disconnect the wire from
connector CN204
on the amplifier board.
(3) Disconnect the earth wire from the top of the CD changer
mechanism cover and from the base chassis on each side
of the body.
(4) From each side of the body, remove the two screws F at-
taching the front panel assembly.
(5) From the bottom of the body, remove the two screws G at-
taching the front panel assembly.
(6) Release the two joints d at the lower right and left sides of
the body and remove the front panel assembly forward.

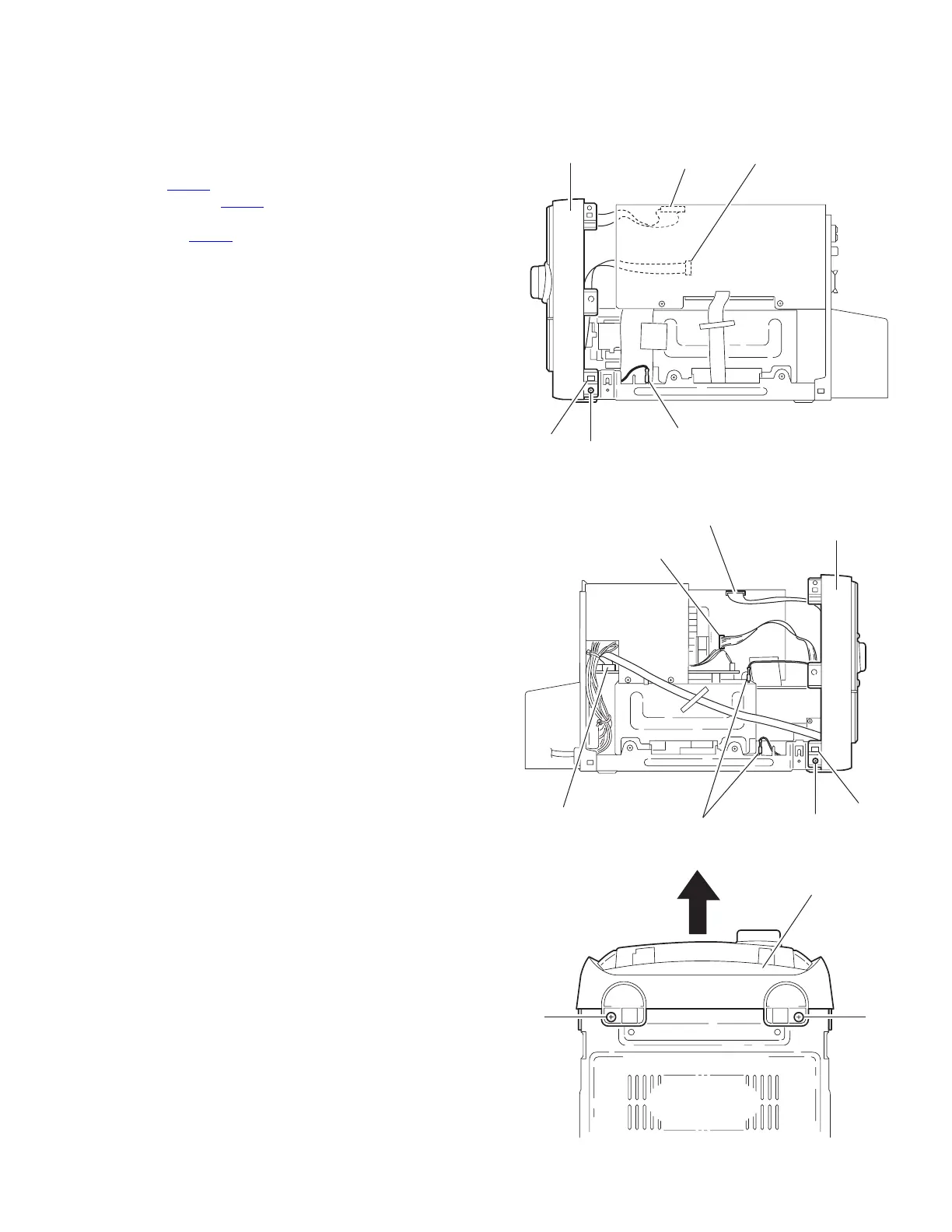

Fig.8
Fig.9
Fig.10
Front panel assembly
CN402
Main board
CN671
d
F
Earth wire
Front panel assembly
CN671
Main board
CN402
d
F
Earth wire
A
mplifier board
CN204
GG
Front panel assembl
y
