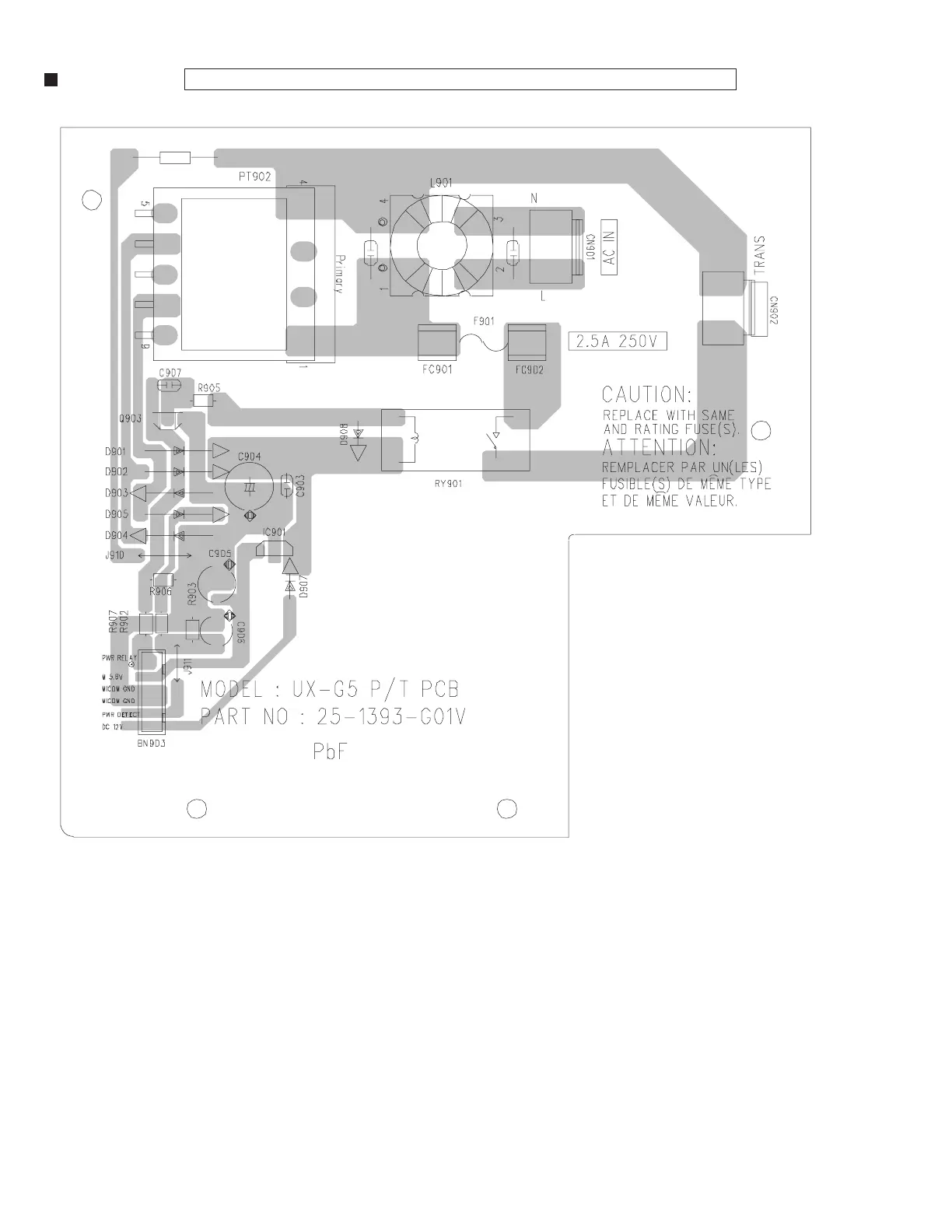

Trans board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

2-23

Table of Contents

SECTION 1 PRECAUTION3
- 1.1 Safety Precautions3
- 1.2 Warning3
- 1.3 Caution3
- 1.4 Critical parts for safety3
- 1.5 Preventing static electricity4
- 1.6 Handling the traverse unit (optical pickup)4
- 1.7 Attention when traverse unit is decomposed4
- 1.8 Importance administering point on the safety5
SECTION 2 SPECIFIC SERVICE INSTRUCTIONS6
SECTION 3 DISASSEMBLY7
- 3.1 Main body7
SECTION 4 ADJUSTMENT20
SECTION 5 TROUBLESHOOTING21
