FS-SD550R/FS-SD770R/FS-SD990R
1-17

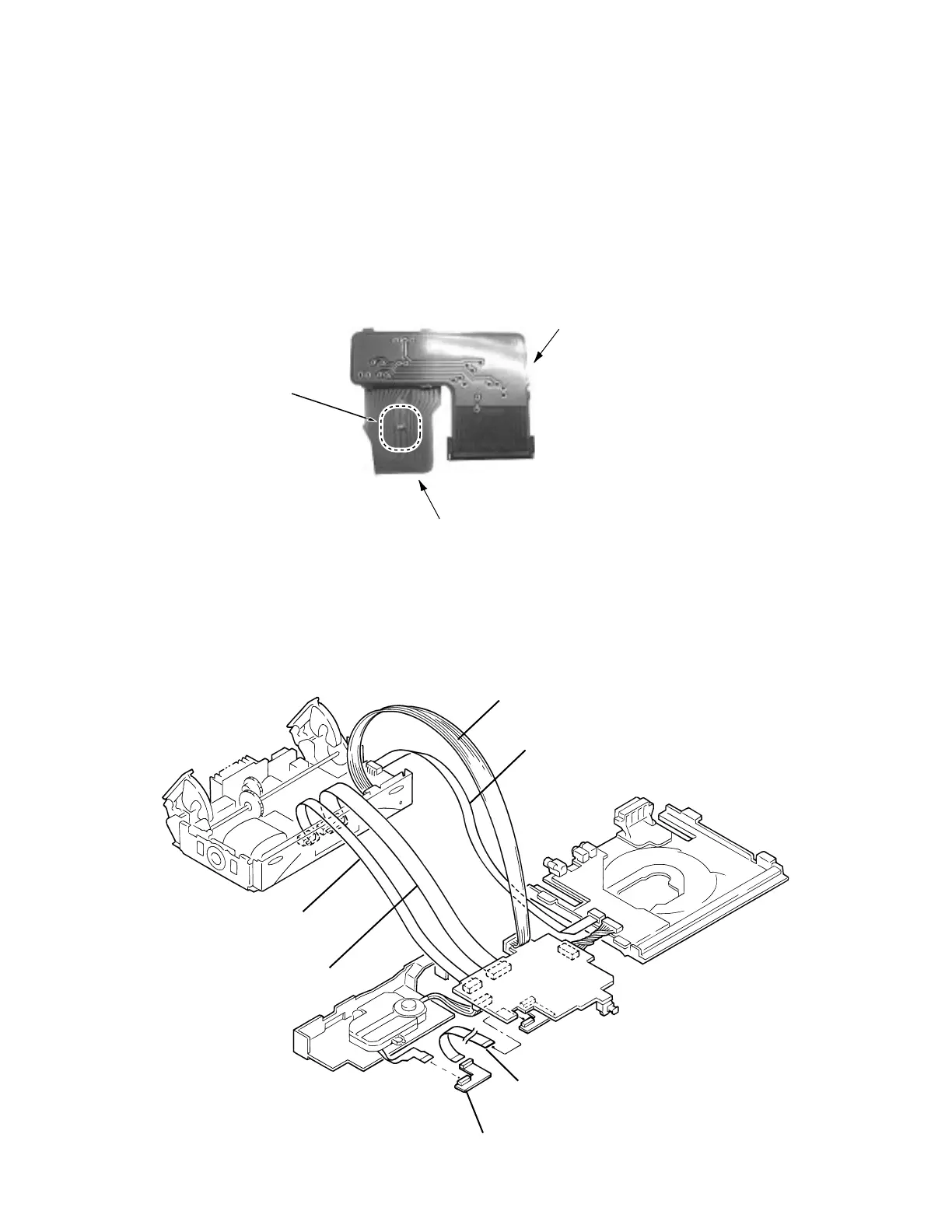

Method of connecting treatment device wire
Shorting
Flexible cable
KSM-900AAH
Sub board
(Reverse side)
First short-circuit the pickup circuit before removing the pickup.Then carry out the replacement.
Refer to "Dismantling and assembling the traverse unit" on page 1-5.
When the KSM-900AAH mechanism is used, the expansion cable is used as follows.
EXTFSSD5-JIG
extension wire
QUQB12-0840CJ
8pin card wire
QUQB12-0940DJ
9pin card wire
QUQB12-1840DJ
18pin card wire
QUQB12-1640DJ
16pin card wire
EXTKSM900-JIG
Sub board
