Disconnect the card wire from connector CN711 on
the CD mechanism board attached to the CD
mechanism base.
Disconnect the wires from connector CN102 and
CN103 on the VCD CB assembly.
Unjoint the six joints (f) with the VCD shield (L) and
the VCD shield (U). Remove the VCD shield (L) in
the direction of the arrow.
Remove the VCD CB assembly from the VCD shield
(L).
1.
2.
3.
4.
Removing the VCD CB assembly

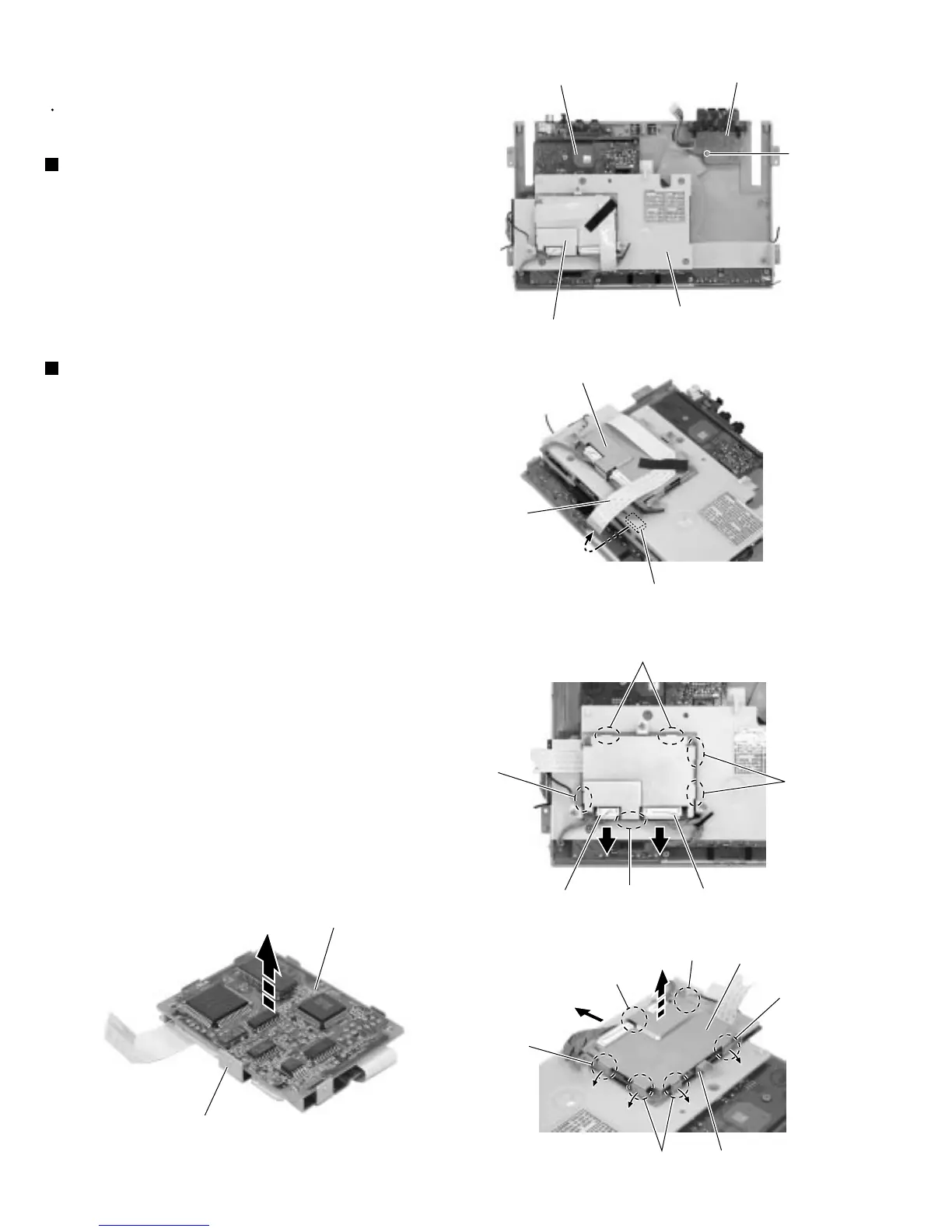

(See Fig.30 to 33)
Remove the screws T attaching the speaker terminal
board on the underside of the CD mechanism base
assembly.
1.
Prior to performing the following procedure, remove
the CD mechanism base assembly.
Removing the speaker terminal board
(See Fig.29)
<CD mechanism base assembly>
Fig.29
Fig.30
Fig.31
Fig.32Fig.33
CD mechanism board
CD mechanism cover
Speaker terminal board
T
VCD CB assembly
VCD CB assembly
Card wire
CD mechanism board
CN711
f
f
f
f
CN102
CN103
f
f
f
f
f
VCD shield (U)
VCD shield (L)
VCD shield (L)
VCD CB board
