FS-SD58V/FS-SD78V/FS-SD98V
1-8

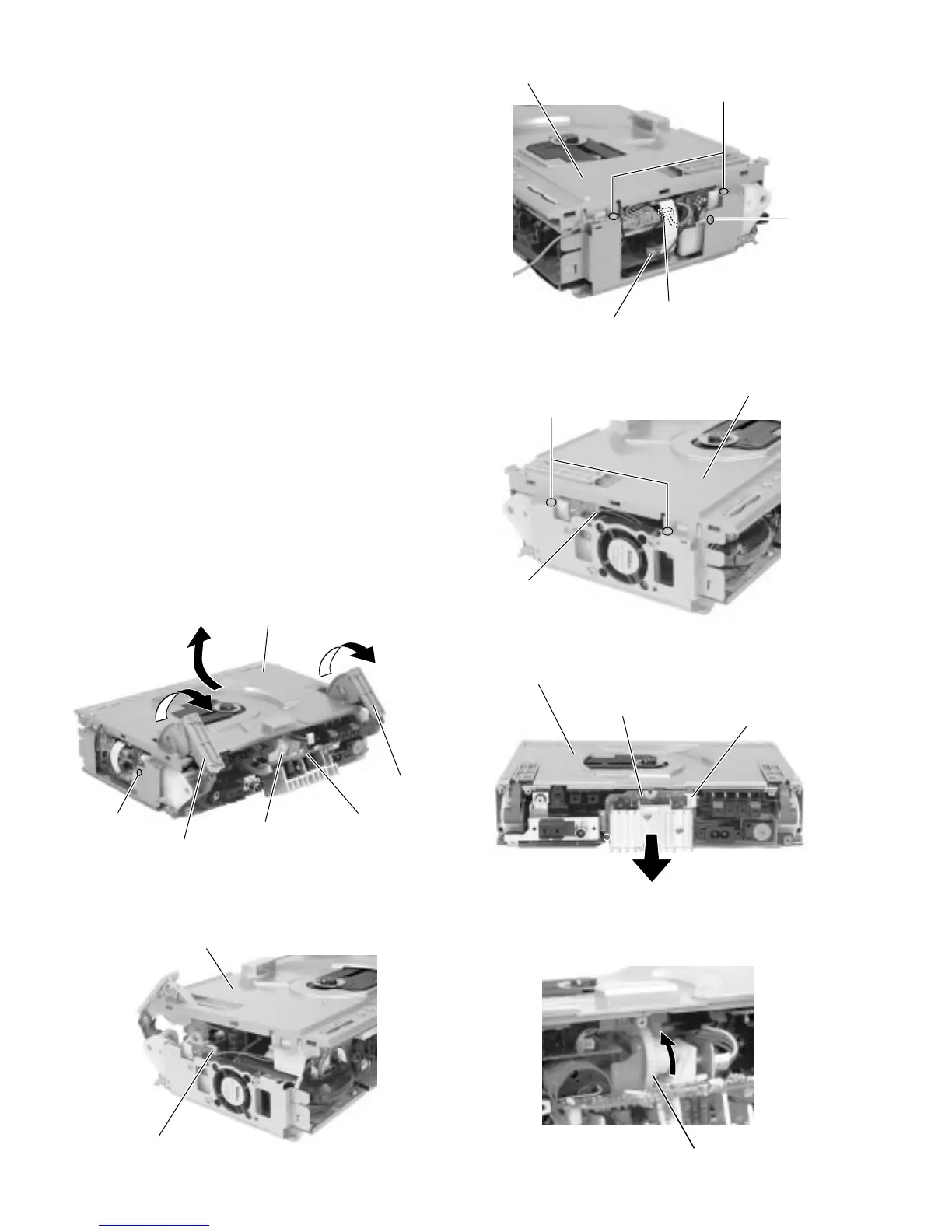

Remove the screw G attaching the heat sink board
on the back of the body. Disconnect the wire from
connector CN301 and pull the heat sink board fully
outward.
Raise the right and left door arms by turning the gear
a in the rear of the heat sink board.
After the CD mechanism base assembly is detached
from the door arms, pull the CD mechanism base
assembly toward the front and disconnect the wire
from connector CN804 on the left side of the door
arm board.
Pull out the CD mechanism base assembly toward
the front.
3.
4.
5.
6.
Fig.9
Fig.10
Fig.11
F
I
CD mechanism base assembly
Main board
CN101
CN705
F
CD mechanism base assembly
CN804
CD mechanism base assembly
CN301
G
Heat sink board
Fig.13
Gear a
Fig.12
Fig.14
CD mechanism base assembly
Heat sink board
Door arm
Door arm
I
Gear a
CD mechanism base assembly
Door arm board (L)
CN804
