1-13
FS-SD5/FS-SD7/FS-SD9
Prior to performing following procedure, remove the
CD mechanism board.
Disconnect the harness from connector CN502 on
the jack board.
Remove the four screws V attaching the jack board.
1.
2.
Removing the jack board (See Fig.33)
Prior to performing following procedure, remove the
CD mechanism board.
Disconnect the harness from connector CN502 on
the jack board.
Remove the six screws W attaching the switch
board.
1.
2.
Removing the switch board (See Fig.33)
Disconnect the harness from connector CN706 on
the CD mechanism board on the underside of the
CD mechanism base assembly.
Push inward the two tabs d attaching the LED board
case and release them.
Pull out the LED board from the LED board case.
1.
2.
3.
Removing the LED board
(See Fig.34 and 35)

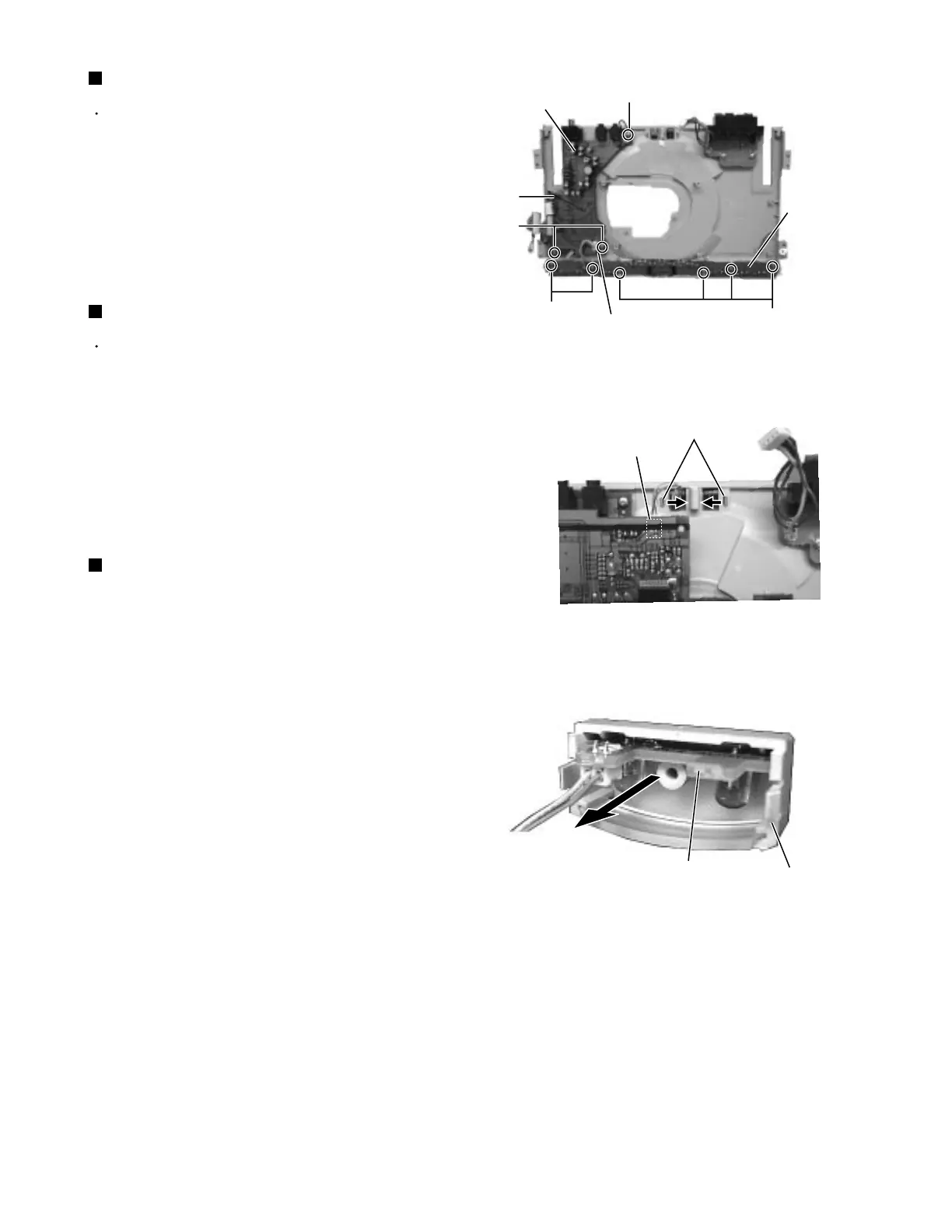

Fig.33
Fig.34
Fig.35
Jack board
Switch board
CN502
V
V
V
W
W
Tabs d
CD mechanism board
LED board
LED board case
