JVC FS-SD7R Service Manual

FS-SD5R/FS-SD7R/FS-SD9R

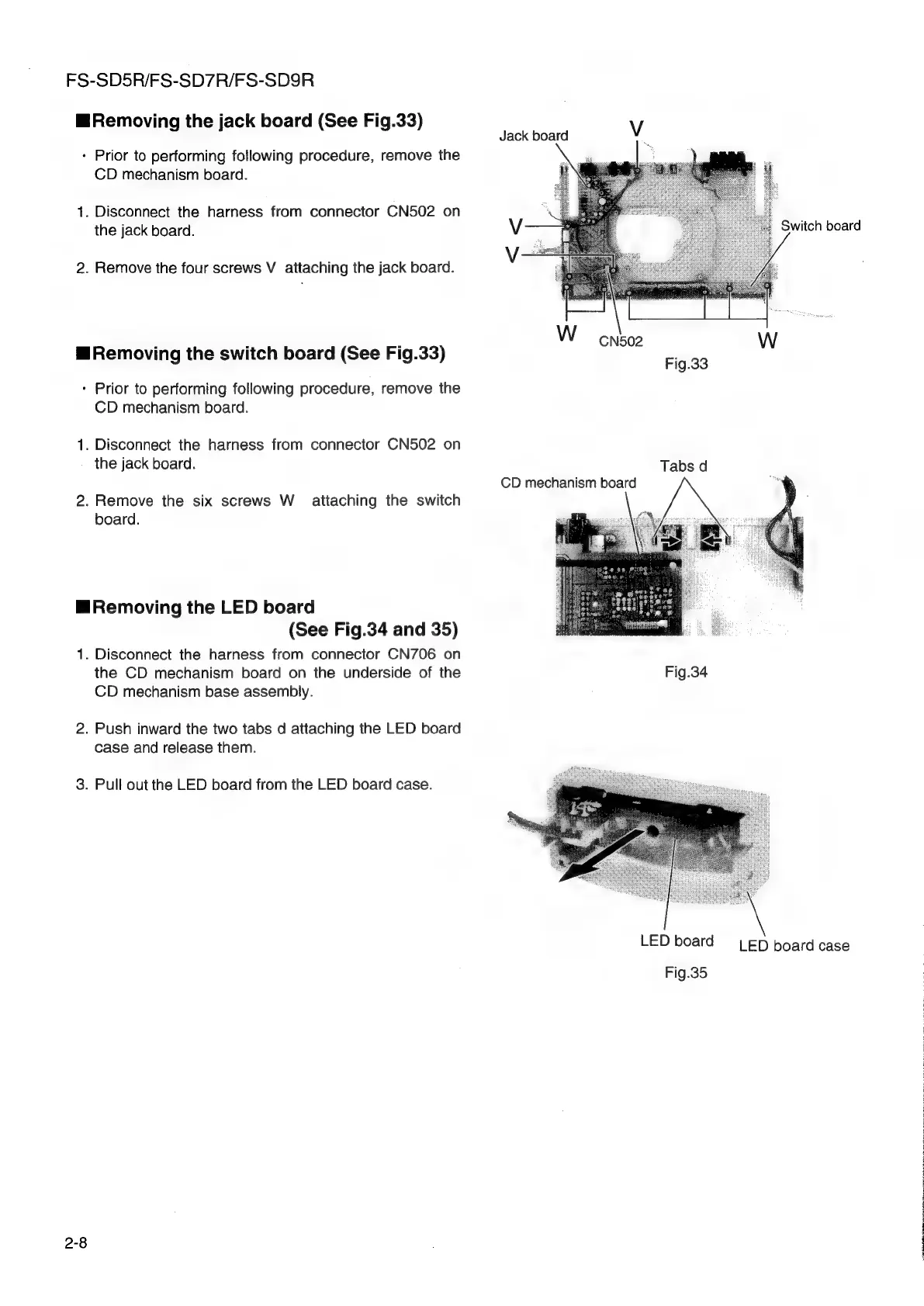

m@Removing the jack board (See Fig.33)
+ Prior to performing following procedure, remove the
CD mechanism board.
1. Disconnect the harness from connector CN502 on
the jack board.
2. Remove the four screws V attaching the jack board.
@ Removing the switch board (See Fig.33)
- Prior to performing following procedure, remove the
CD mechanism board.
1. Disconnect the harness from connector CN502 on
the jack board.
2. Remove the six screws W_ attaching the switch
board.
MRemoving the LED board
(See Fig.34 and 35)
1. Disconnect the harness from connector CN706 on
the CD mechanism board on the underside of the
CD mechanism base assembly.
2. Push inward the two tabs d attaching the LED board
case and release them.
3. Pull out the LED board from the LED board case.
2-8
Jack board Vv
CD mechanism board
Tabs d
Switch board
LED board
Fig.35
LED board case
i
;
|
:
