JVC FS-SD7R Service Manual

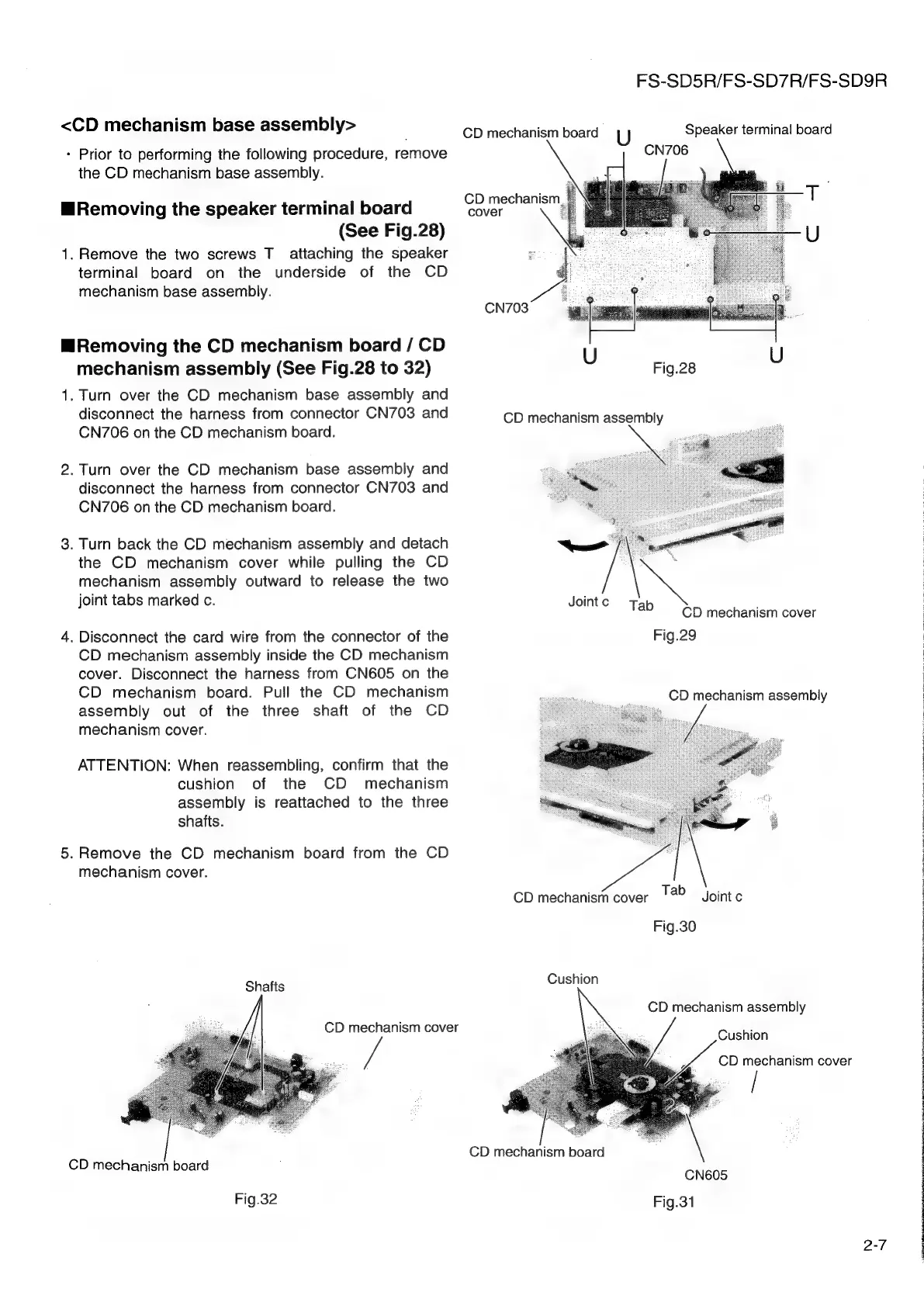

<CD mechanism base assembly>
Prior to performing the following procedure, remove
the CD mechanism base assembly.
Removing the speaker terminal board
1
(See Fig.28)
. Remove the two screws T attaching the speaker
terminal board on the underside of the CD
mechanism base assembly.
Removing the CD mechanism board / CD
os
mechanism assembly (See Fig.28 to 32)
. Turn over the CD mechanism base assembly and
disconnect the harness from connector CN703 and
CN706 on the CD mechanism board.
. Turn over the CD mechanism base assembly and
disconnect the harness from connector CN703 and
CN706 on the CD mechanism board.
. Turn back the CD mechanism assembly and detach
the CD mechanism cover while pulling the CD
mechanism assembly outward to release the two
joint tabs marked c.
Disconnect the card wire from the connector of the
CD mechanism assembly inside the CD mechanism
cover. Disconnect the harness from CN605 on the
CD mechanism board. Pull the CD mechanism
assembly out of the three shaft of the CD
mechanism cover.
ATTENTION: When reassembling, confirm that the
cushion of the CD mechanism
assembly is reattached to the three
shafts.
Remove the CD mechanism board from the CD
mechanism cover.
Shafts
CD mechanism board
Fig.32
CD mechanism cover
FS-SD5R/FS-SD7R/FS-SD9R
CD mechanism board U Speaker terminal board
CD mechanism.
cover
CD mechanism assembly
Joint c
CD mechanism cover Tab Joint c
Cushion
CD mechanism board
~~
CN706
Fig.28
Tab
CD mechanism cover
Fig.29
CD mechanism assembly
Fig.30
CD mechanism assembly
Cushion
CD mechanism cover
2-7
