1-6
FS-SD5/FS-SD7/FS-SD9

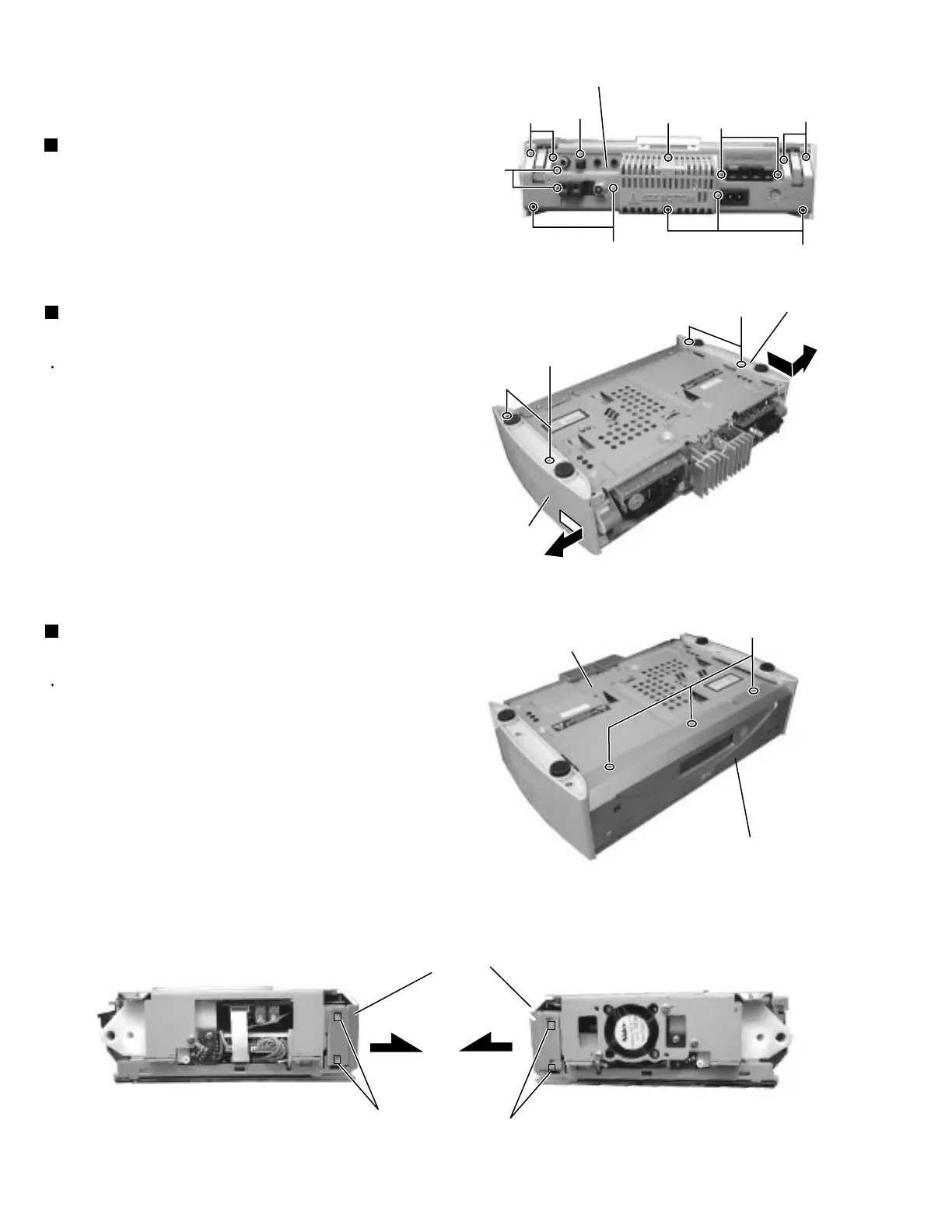

Remove the ten screws A and the five screws B
attaching the rear cover on the back of the body.
1.
<Main body>
Removing the rear cover (See Fig.1)
Prior to performing the following procedure, remove
the rear cover.
Remove the four screws C attaching the side covers
on the bottom of the body.
Move the left cover backward and remove outward.
Also remove the right cover in the same way.
1.
2.
Removing the right and left covers
(See Fig.2)
Prior to performing the following procedure, remove
the rear cover and the side covers.
Remove the three screws D on the bottom of the
body.
Release two joints a and two joints b on both sides of
the body using a screwdriver and remove the front
panel assembly toward the front.
1.
2.
Removing the front panel assembly
(See Fig.3 to 5)
Disassembly method
Fig.1
Fig.2
Fig.3
Fig.5Fig.4
A
A
A
A
A
B
B
B
Rear cover
C
C
Right cover
Left cover
D
Front panel assembly
Left side
Right side
Front panel assembly
Joints a
Joints b
Bottom
