FS-SD5R/FS-SD7R/FS-SD9R

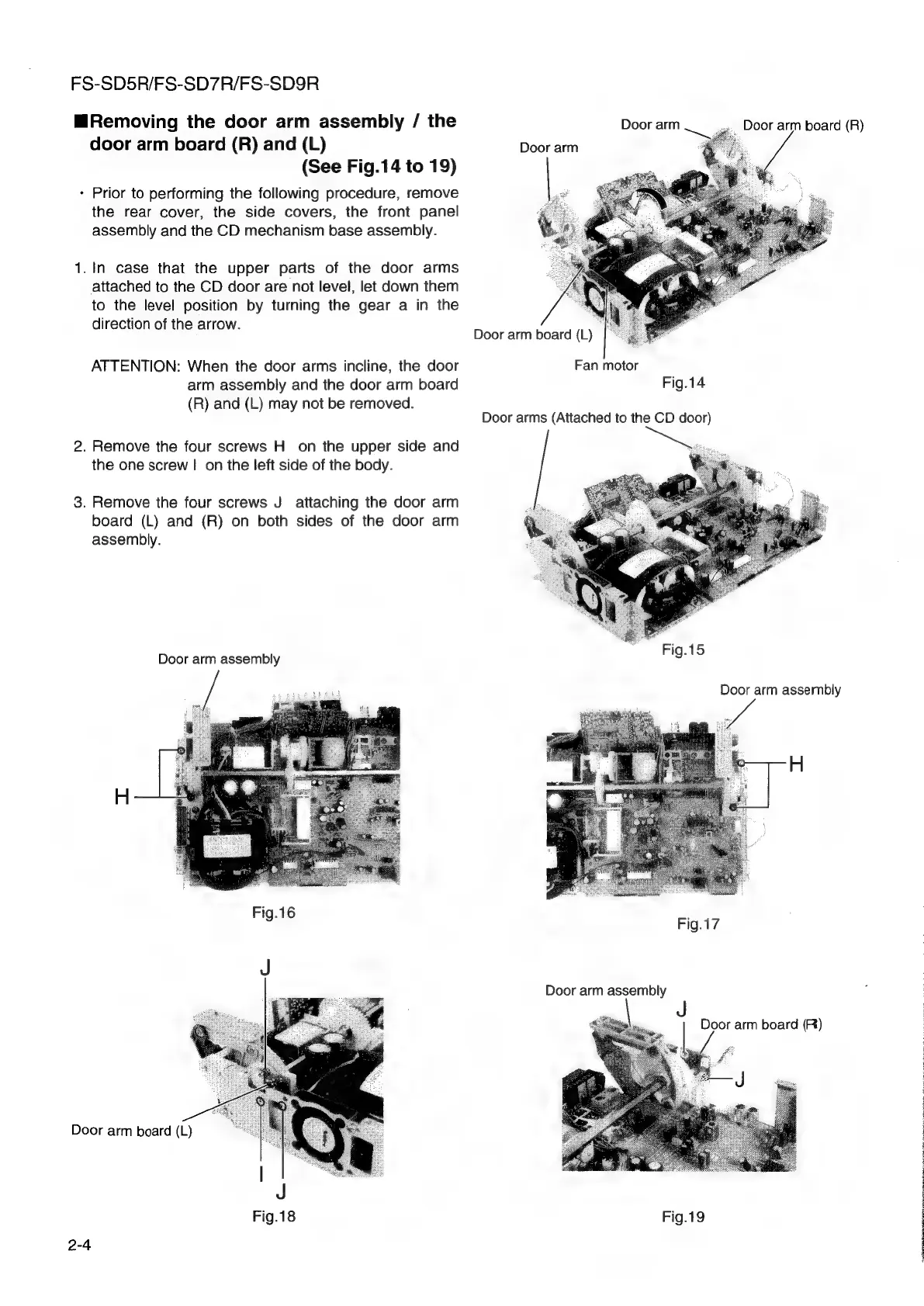

mMRemoving the door arm assembly / the Door arm
door arm board (R) and (L) Door arm
(See Fig.14 to 19)
* Prior to performing the following procedure, remove
the rear cover, the side covers, the front panel
assembly and the CD mechanism base assembly.
Door arm board (R)
1. In case that the upper parts of the door arms
attached to the CD door are not level, let down them
to the level position by turning the gear a in the
direction of the arrow.
OMe Door arm board (L)
ATTENTION: When the door arms incline, the door Fan motor
arm assembly and the door arm board Fig.14
(R) and (L) may not be removed.
Door arms (Attached to the CD door)
2. Remove the four screws H_ on the upper side and
the one screw | on the left side of the body.
3. Remove the four screws J attaching the door arm
board (L) and (R) on both sides of the door arm
assembly.
Door arm assembly
Fig.16 Fig.17
Door arm assembly
Door arm board (R)
Door arm board (L)
qe
