CAUTION:
• Make all connections before plugging the System into an AC power outlet.
Connecting the FM Antenna

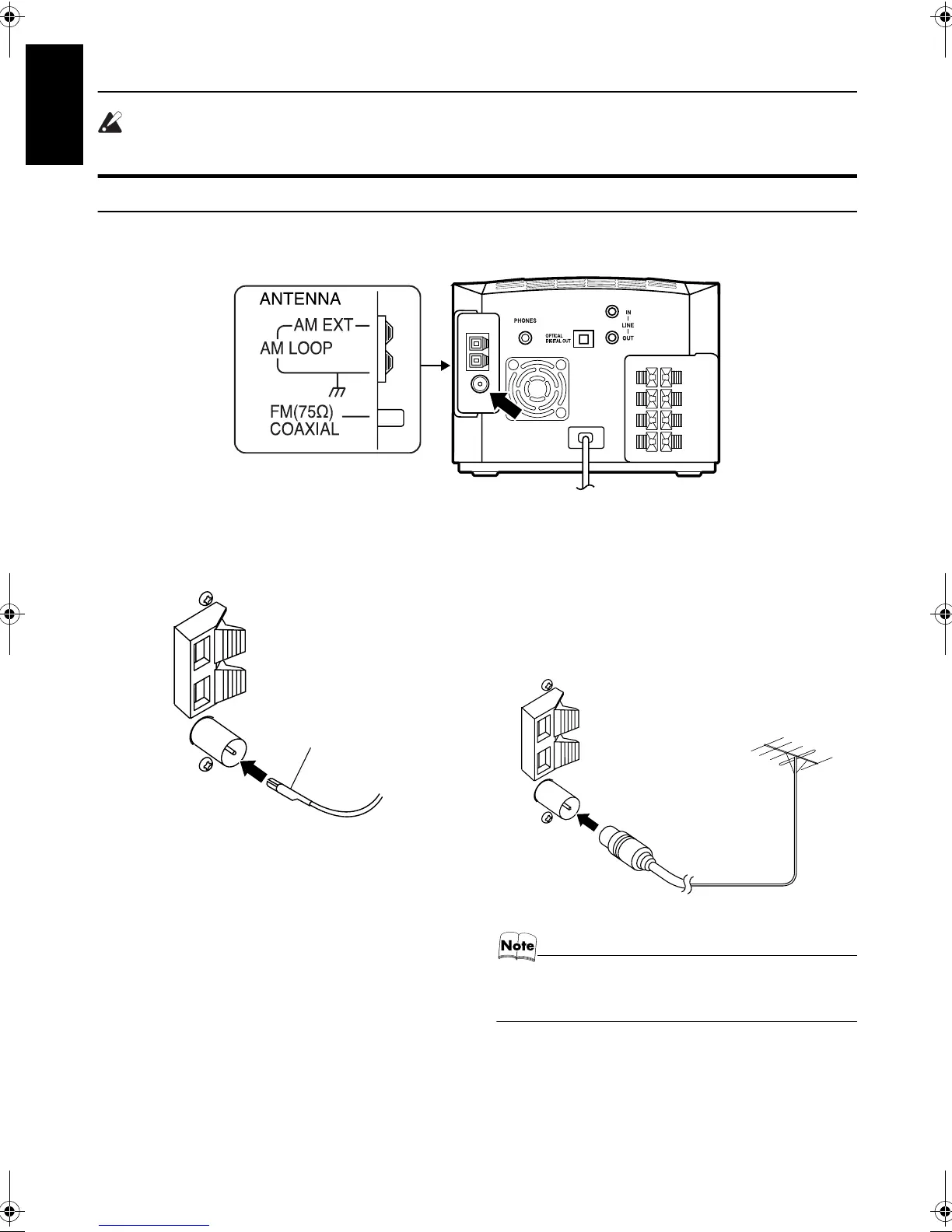

Rear Panel of the Center Unit (CA-FSX5)
Using the Supplied Wire Antenna
• Fasten it up in the position until you have the best
reception.
If reception is poor, connect the outdoor antenna.
Using the Coaxial Type Connector
(Not Supplied)
A 75-ohm antenna with coaxial type connector should be
connected to the FM 75-ohm COAXIAL terminal.
• Before attaching a 75 ohm coaxial lead (the kind with a
round wire going to an outdoor antenna), disconnect the
supplied FM Wire Antenna.
(on the side panel)
FM wire antenna (supplied)
Coaxial cable
FM outdoor
antenna
(Not supplied)
