47

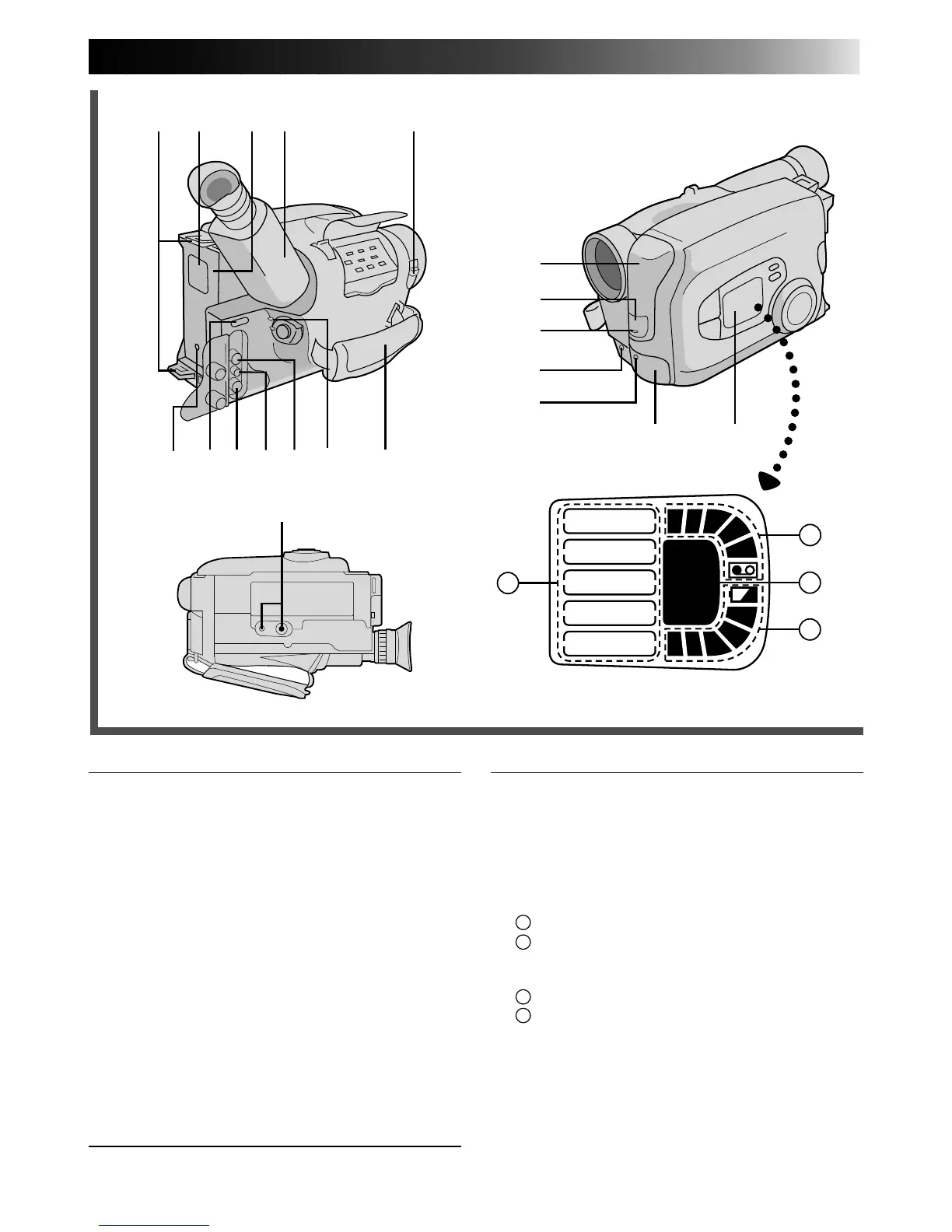

Other Parts
W Video Light (GR-AX770 only).............. Z pg. 15
E • Camera sensor
Be careful not to cover this area; built-in
here is the sensor necessary for shooting.
•Remote sensor .................................
Z pg. 39
R Microphone ....................................... Z pg. 41
T LCD window (GR-AX770 only)
A
Program Manager Function Indicator.
B
Full Auto Indicator.
Displayed when the Program AE Select Dial
is set to Auto Lock.
C
Tape Loaded/Remaining Tape Indicators.
D
Remaining Battery Power Indicator.
Y Shoulder Strap Eyelets ........................ Z pg. 11
U Clock Battery Compartment ................ Z pg. 8
I Battery Pack Mount ........................... Z pg. 6
O Electronic Viewfinder......................... Z pg. 8
P LENS COVER Switch ......................... Z pg. 12
a Grip Strap .......................................... Z pg. 11
s
VIDEO LIGHT ON/AUTO/OFF Switch
(GR-AX770 only)
................................. Z pg. 15
d Tripod Mounting Socket ......................Z pg. 11
yuio
Q
UYIO
P
r
t
E
R
T
p
d
a
s
W
A
B
C
D
FADE/WIPE
WIDE
TITLE
DISPLAY
M.W.B.
FULL
AUTO
Connectors
r J terminal (JLIP (Joint Level Interface Protocol)
Connector.)
(Located beneath the jack cover)
•Connect the Editing Cable when performing
Random Assemble Editing (Z pg. 36).
•It is used to connect the camcorder to a device
such as a personal computer.
For further detail consult your nearest JVC
dealer. Information (in English) is also available
at our home page: http://www.jvc-victor.co.jp/
t External MIC jack (capped) .................Z pg. 41
y DC IN Jack ......................................... Z pg. 7
The jacks
u to o are located beneath the jack
cover.
u VIDEO OUT Jack ............................... Z pg. 31
i RF DC OUT Jack................................ Z pg. 31
o AUDIO OUT Jack .............................. Z pg. 31
Indicators
p Tally Lamp ......................................... Z pg. 12
Q Power On Indicator ........................... Z pg. 12
To Next Page
