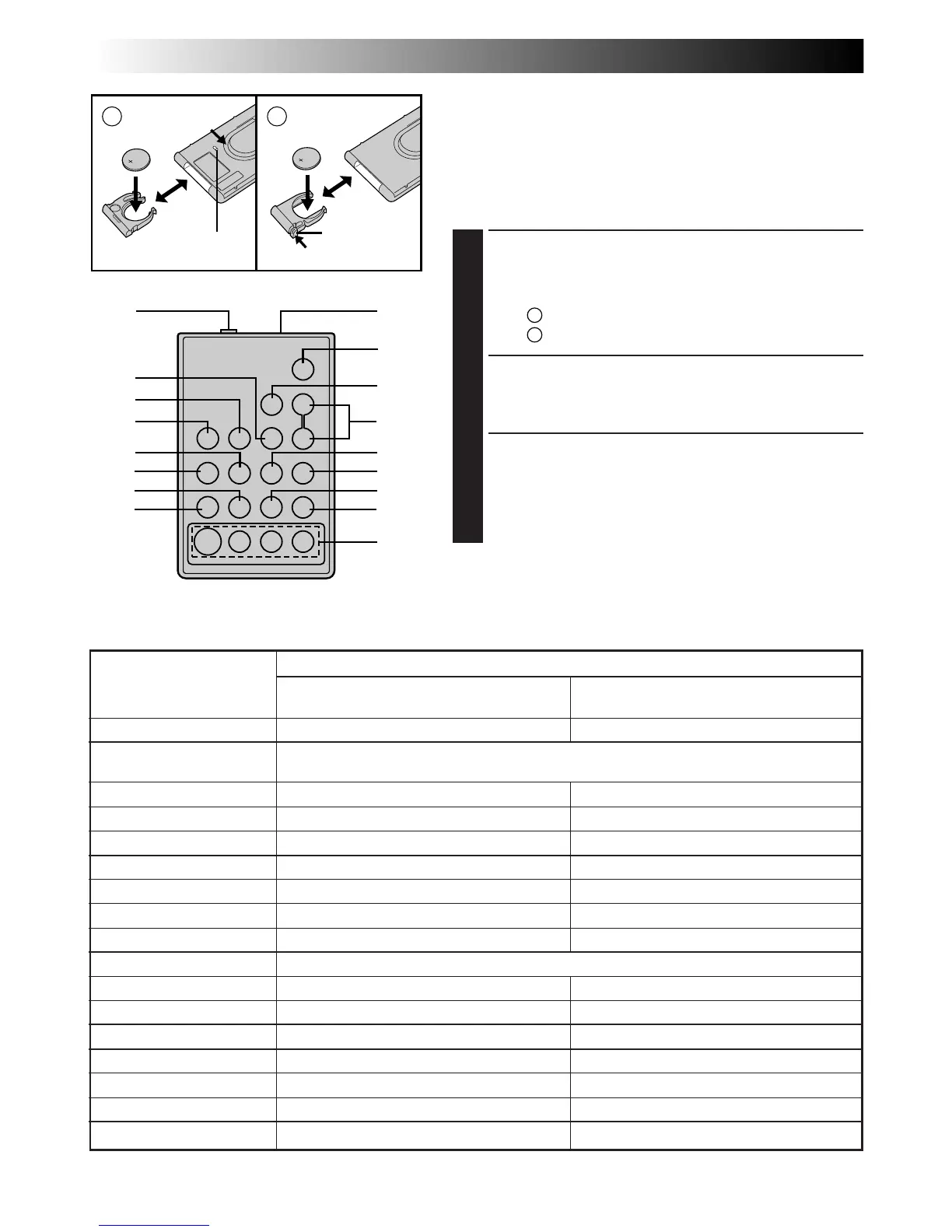

USING REMOTE CONTROL UNIT
RM-V700U (optional)
Lock hole
Release tab
INSTALLING THE BATTERY
PULL OUT BATTERY HOLDER
1
Pull out the battery holder according to the type of
remote control unit you have.
Type
A
: Pull out while sliding the lock hole.
Type
B
: Pinch the release tab and pull out.
INSERT BATTERY
2
Making sure the plus (+) side is up, insert the lithium
battery (CR2025)* into the battery holder.
REPLACE BATTERY HOLDER
3
Insert the battery holder into the remote control unit,
and push the holder until it clicks into place.
*Read the caution concerning lithium batteries
(
Z pg. 2).
The Full-Function Remote Control Unit can operate this
camcorder from a distance as well as the basic
operations (PLAY, STOP, PAUSE, FF, and REW) of your
VCR. This remote control unit makes additional
recording functions possible.
BUTTONS
1 PAUSE IN Connector
2 Infrared beam
transmitting window
3 MBR SET Button
4 INT. TIME Button
5 REC TIME Button
6 FF Button
7 REW Button
8 PAUSE Button
9 PLAY Button
0 START/STOP Button
! VISS Button
@ ZOOM (T/W) Buttons
# VCR CTL Button
$ A.DUB Button
% STOP Button
^ INSERT Button
& R.A.EDIT Buttons
FUNCTIONS
With the camcorder’s power switch set
to “CAMERA”.
—
Transmits the beam signal.
—
Self-Timer/Time-Lapse (Z pg. 43)
Animation/Time-Lapse (Z pg. 43)
Retake (forward) (Z pg. 17)
Retake (rewind)/Quick Review ( Z pg. 17)
—
—
Functions same as the Recording Start/Stop button on the camcorder.
Index Code Marking (Z pg. 43)
Zoom in and out (Z pg. 16)
—
—
—
—
—
With the camcorder’s power switch set
to “PLAY”.
Z pg. 45
Z pg. 44
—
—
FF/FF Shuttle Search (Z pg. 36, 38)
Rew/Rew Shuttle Search (Z pg. 36, 38)
Pause (Z pg. 36)
Playback start (Z pg. 36)
—
—
Z pg. 44
Audio dubbing (Z pg. 49)
Stop (Z pg. 36)
Insert Editing (Z pg. 48)
Z pg. 46
