C-VF

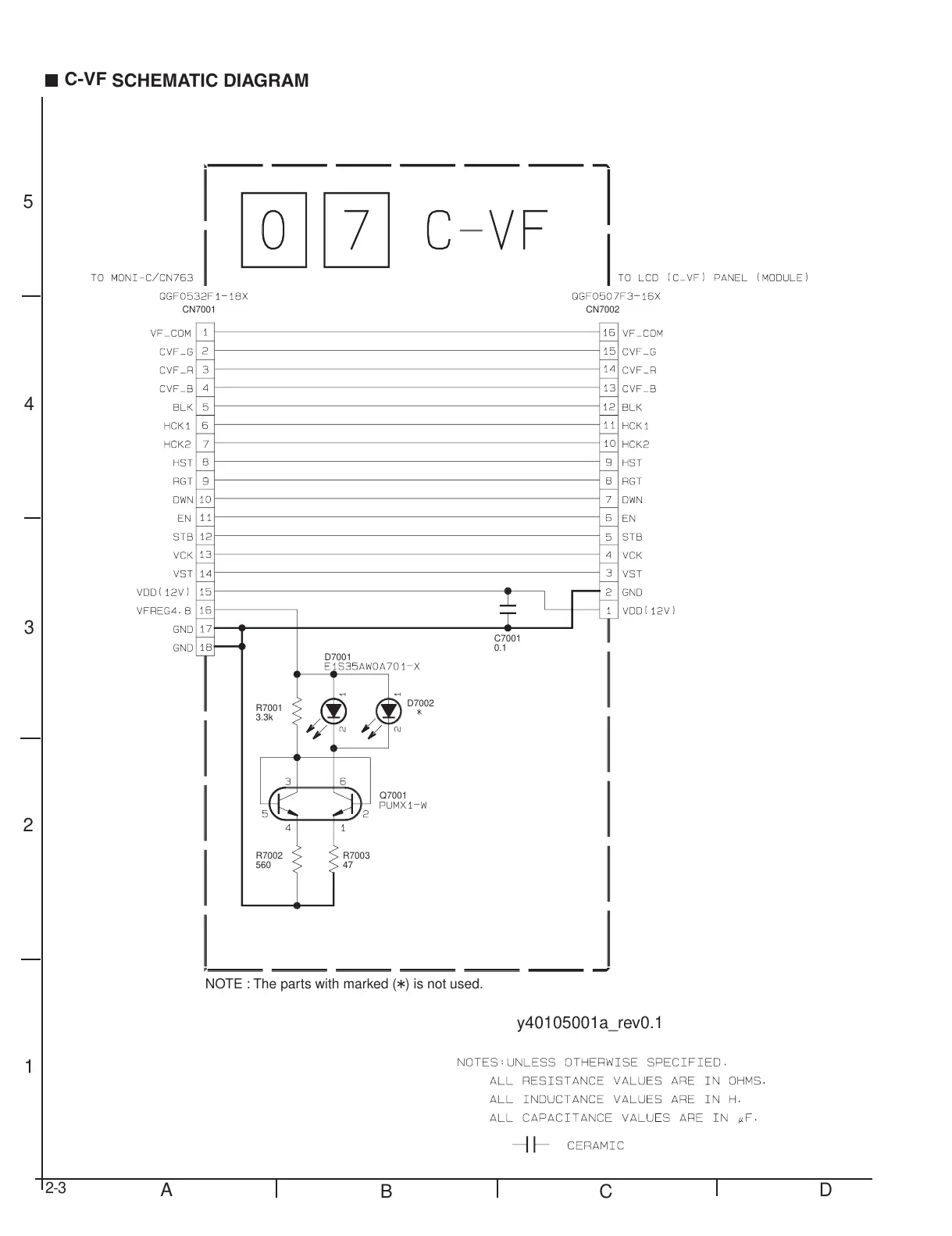

SCHEMATIC DIAGRAM
CN7002
C7001
D7001
R7001
R7002 R7003
D7002
Q7001
CN7001
0.1
3.3k
560 47
NOTE : The parts with marked (

) is not used.
y40105001a_rev0.1
