3.2.5 DISASSMBLY of [4] VF ASSEMBLY
zBefore disassembly
As the VF ASSEMBLY has complicated structure, do not dis-
assemble if not needed.
Inside the VF is divided into two units: LCD SA/ LENS SA, and
each unit is made up of several parts.
Disassemble the VF ASSEMBLY if necessary. When assem-
bling the VF ASSEMBLY,
When assembling the VF ASSEMBLY, pay special attention to
the foreign materials (dusts etc.) inside the ASSEMBLY, and
the soils on both the LENS and the SHEET.
zDisassembly of the CABINET PARTS
(1) Remove the screw (1), and free the SW BOARD ASSY.
(2) Remove the two screws (2 and 3), and remove the VF
ASSEMBLY.
NOTE4a:
During the procedure, be careful not to break the FPC.
(3) Remove the two screws (4 and 5), and remove the UP-
PER CASE (VF).
(4) Remove the FPC from the BOTTOM CASE (VF) to make
the FPC free, and remove the LCD SA/LENS SA.
NOTE4b:
During the procedure, be careful not to break the FPC.
NOTE4c:
When attaching, be careful with the positioning of the
LEVER (VF) and the handling of the FPC.
zDisassembly of LCD SA/LENS SA
(1) Remove the two hooks (L4c and d) on the both sides,
and remove the LENS SA from the LCD SA.
NOTE4d:
Refer to the Fig.VF2 for the disassembly of the LCD SA
and the LENS SA, do not disassemble unless it is needed.
NOTE4e:
During the procedure, be careful in handling the parts.
Pay special attention not to damage, soil, or leave fin-
gerprints on the surface.
NOTE4f:
When attaching the LEVER VF, be careful in position-
ing with the LENS ASSY. Attach the LEVER VF by
pulling the LENS ASSY to the EYE CUP side.
After the attachment, check whether the sliding opera-
tion is smooth.
NOTE4g:
When disassembling, be careful not to lose any parts.

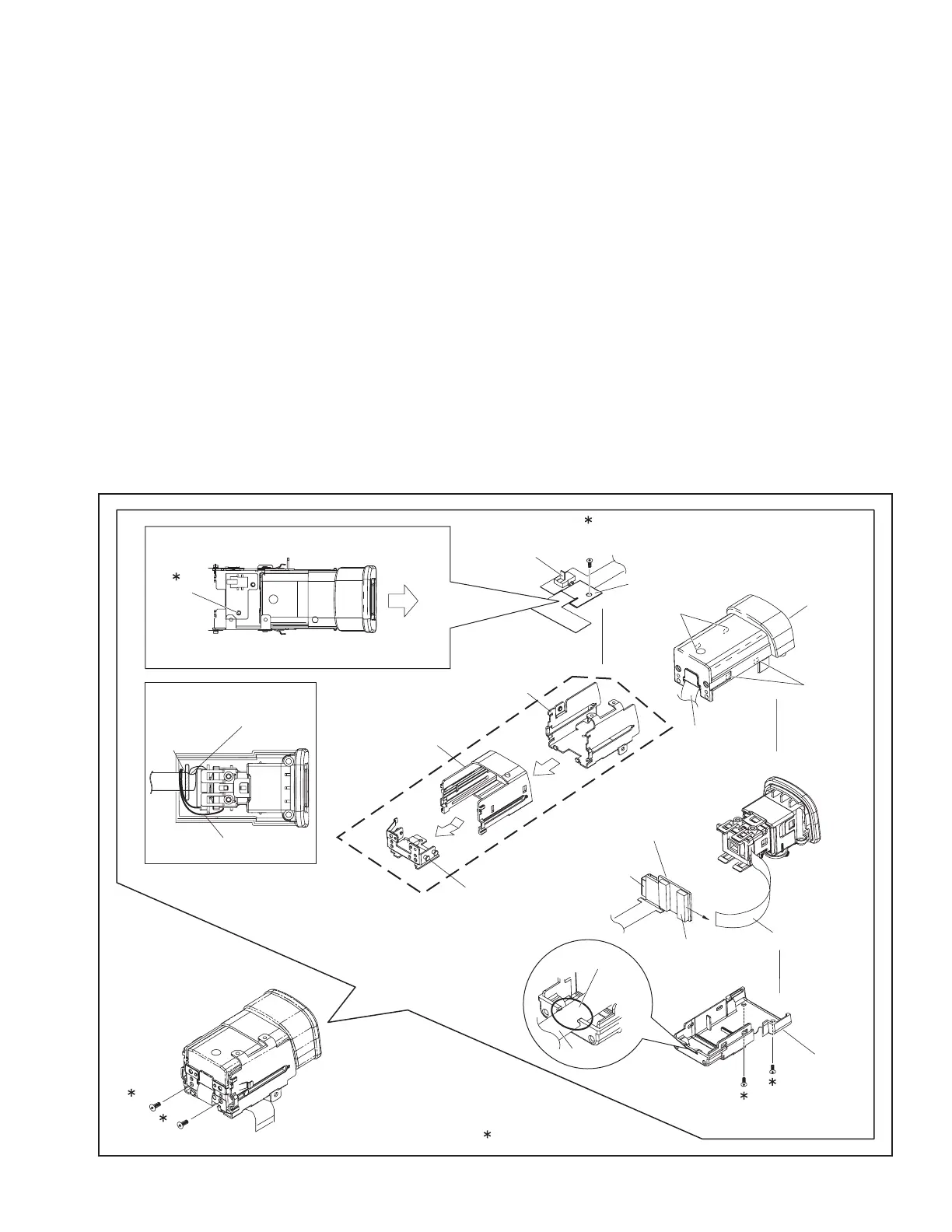

Fig.VF1
L4a
L4b
FPC
NOTE4a
<TOP VIEW>
SUPPORT
PLATE
NOTE4a
NOTE4b
<NOTE4a,b>
FPC
NOTE4c
BKT(HOLDER)
BOTTOM
CASE
(VF)
UPPER
CASE
(VF)
GUIDE(CASE)
BKT(HINGE VF)
ASSY
VF BOARD ASSY
2
(S4a)
3
(S4a)
4
(S4a)
5
(S4a)
CN4a
NOTE4b
1
(S4a)
LEVER
SWITCH
SW BOARD ASSY
1
(S4a)
0.069Nm (0.7kgfcm)
To Next Page
