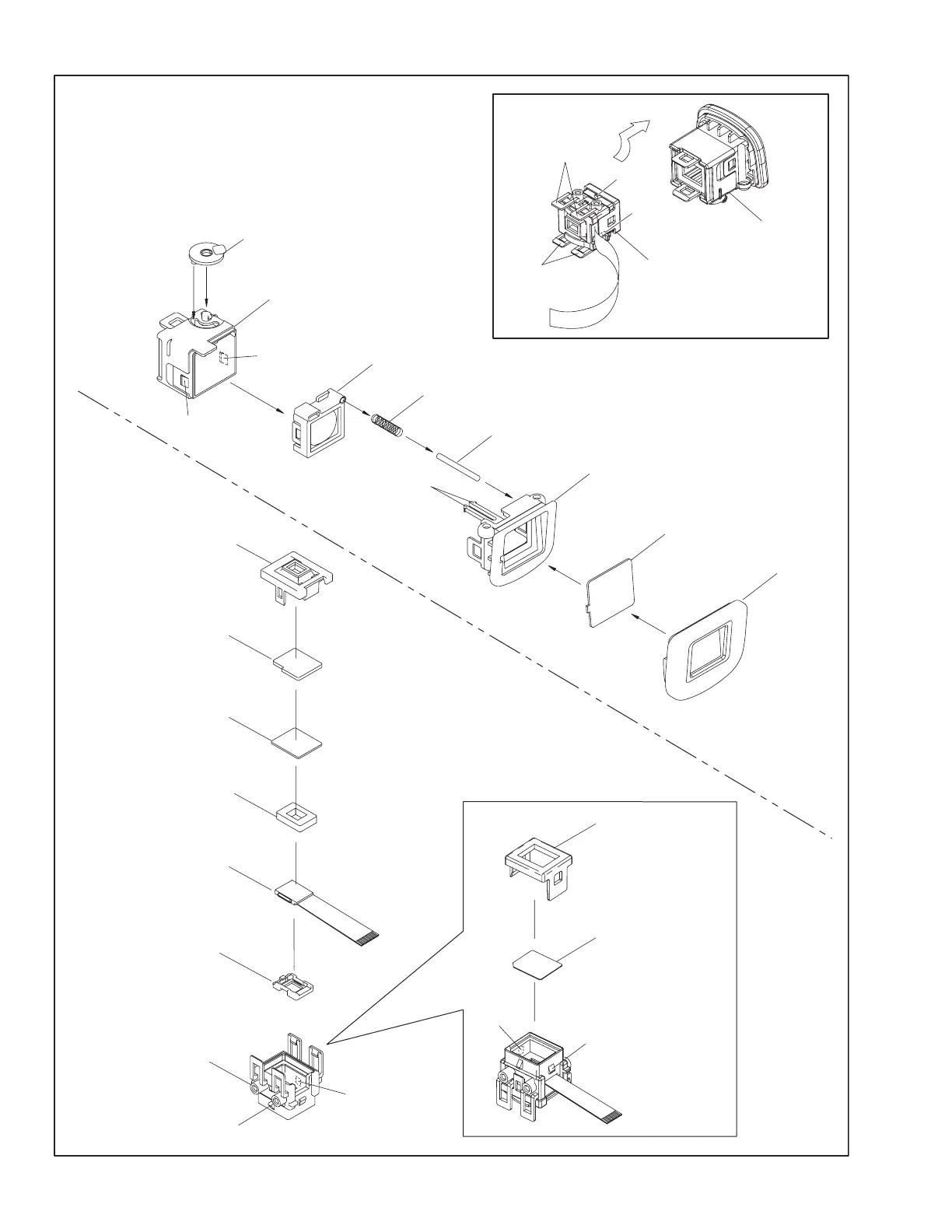

1-14 (No.YF079)
Fig.VF2
NOTE4c
NOTE4d
L4c
L4d
L4f
L4e
STOPER(POLA)
SHEET(POLA.2)
HOLDER(LCD)
GUIDE(LCD)
LCD MODULE
CUSHION(LCD)
SHEET(POLA.1)
SHEET(DIFF)
CASE(B.LIGHT)
LEVER(VF)
GUIDE(LENS)
LENS ASSY
COMPRESION SPRING
SHAFT(VF)
HOLDER(EYE)
SHEET(LENS)
EYE CUP
<LENS SA>
<LCD SA>
NOTE4e
NOTE4e,f
NOTE4g
NOTE4e
NOTE4e
NOTE4e
NOTE4e
NOTE4e
L4g
L4h
L4j
L4m
L4k
L4p
L4n
LCD SA
LENS SA
