(No.YF173)1-19
4.2 JIG CONNECTOR CABLE CONNECTION
4.2.1 CAUTIONS
(1) Only 9 of 30pins of JIG CONNECTOR CABLE(PN:YTU93106B)
are extended with wires. Additional 2pins (13 and 28) need
to be soldered and extended with the wires for adjustment
and checking.
See Fig. 4-2-1 for details.

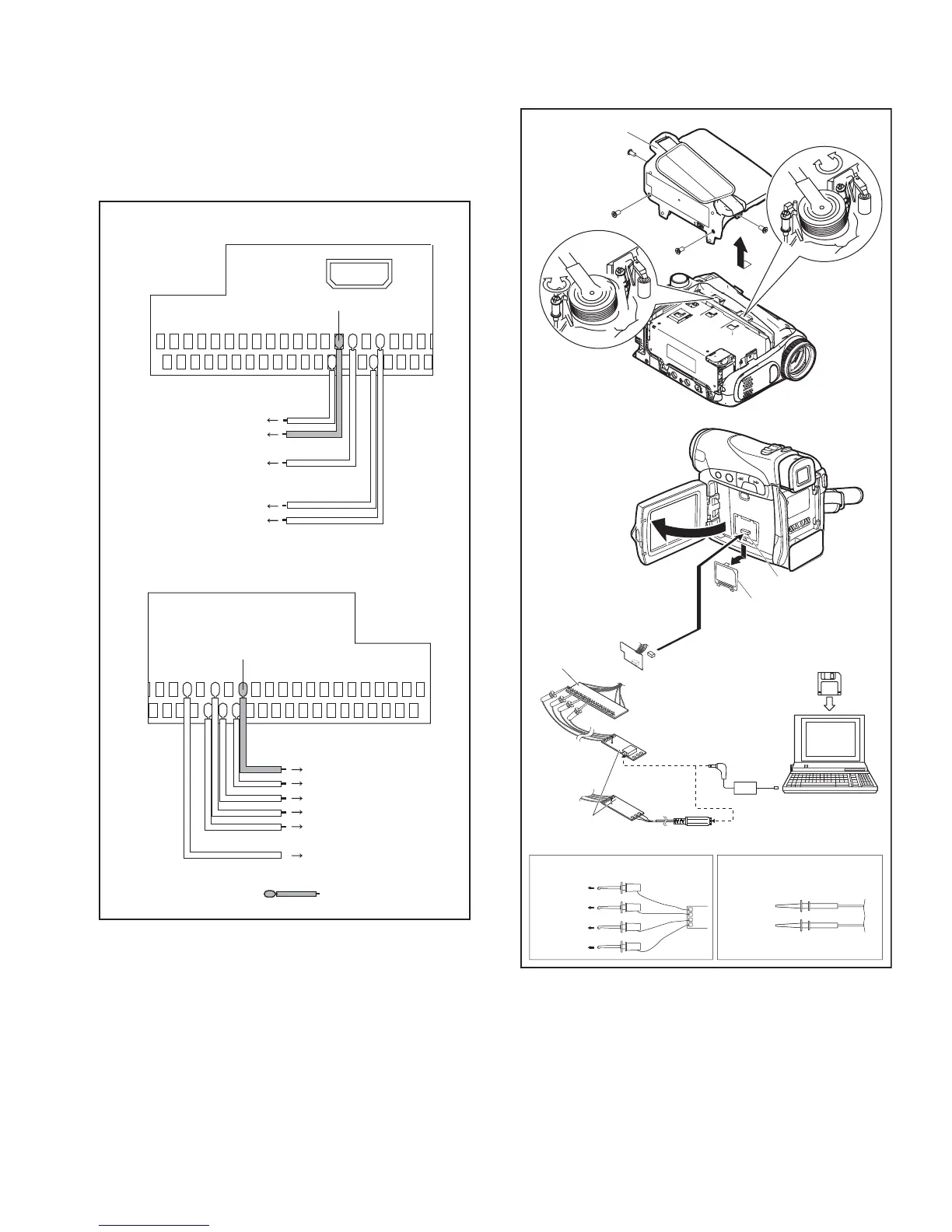

Fig.4-2-1
 Connection procedure
Remove the screw (1-4), and remove the CASS.COVER.
Fig.4-2-2
: ADDITIONAL WIRE
13
22pin -
23pin -
26pin HID
28pin IF_RX
29pin AL_2.8VSYS
8pin CVF-G
9pin GND
5pin NC
13pin IF_TX
12pin ENV_OUT
10pin GND
28
<COMPONENT SIDE>
<FOIL SIDE>




GUIDE ROLLER (TU)
GUIDE ROLLER (SUP)
CASS.COVER
PC CABLE
COVER(JIG CON)
JIG CONNECTOR
COMMUNICATION
CABLE
COMMUNICATION
JIG CONNECTOR
CABLE
JIG CONNECTOR
CONVERSION
CONNECTOR
TO ENV_OUT
TO HID
MENU
RS232C
COM PORT
SERVICE SUPPORT SYSTEM
OSCILLOSCOPEJIG CONNECTOR
PERSONAL COMPUTER
CABLE
TO AL_2.8VSYS
TO IF_RX
TO IF_TX
TO GND
BLUE
RED
WHITE
BLACK
