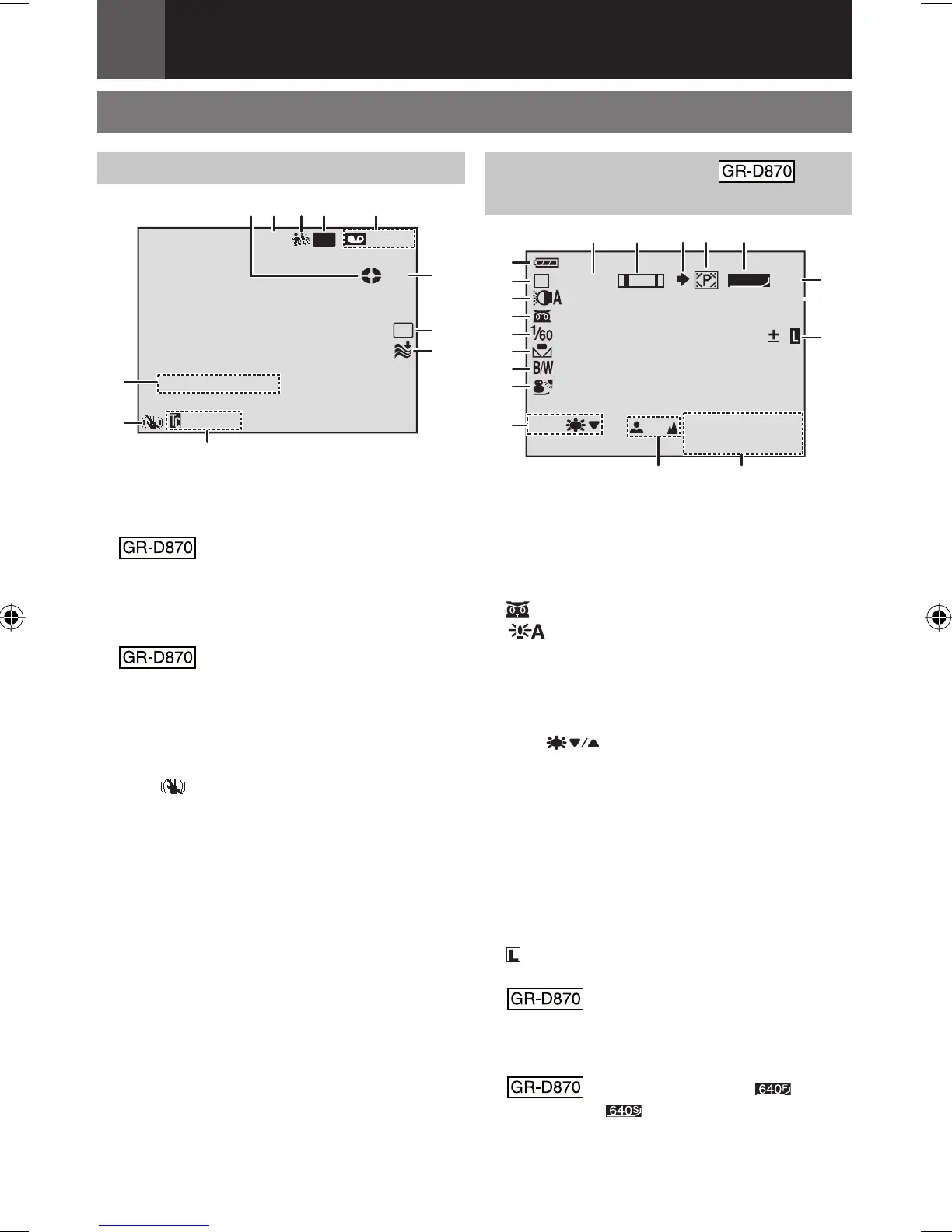

LCD Monitor Indications
During Video Recording Only
! Tape Running Indicator ( 19)
(Rotates while tape is running.)
# Selected Wide Mode Indicator ( 18)
$ Live Slow Indicator ( 34)
% Recording Speed Mode (SP/LP) ( 30)
(only LP indicator is displayed)
& Tape Remaining Time ( 19)
( REC: (Appears during recording.) ( 19)/
SLOW: (Appears when using
Live Slow.) ( 34)
) Selected Wipe/Fader Effect Indicator
* Wind Cut Indicator
+ Time Code
, Digital Image Stabilizer (“DIS”) ( 29)
(only indicator is displayed)
- SOUND 12BIT/16BIT: Sound Mode
Indicator ( 30) (Appears for approx. 5
seconds after turning on the camcorder.)
During Both Video And
D.S.C. Recording
! Battery Remaining Power Indicator ( 45)
# Operation Mode ( 20)
A : Auto Mode
M : Manual Mode
$ LED Light Indicator ( 34)
% : Night-Alive Indicator ( 39)
: Gain Up Mode ( 29)
& Shutter Speed ( 39)
( White Balance Indicator ( 37)
) Selected Effect Indicator ( 39)
* Selected Program AE Indicator ( 38)
+
LCD
: LCD Backlight Indicator
( 31)
(Appears for approx. 5 seconds during
process of switching over to indoor/outdoor
brightness.)
, Manual Focus Adjustment Indicator ( 35)
- Date/Time ( 17)
. . : Spot Exposure Control Indicator ( 36)
- : Backlight Compensation Indicator ( 36)
± : Exposure Adjustment Indicator ( 35)
: Iris Lock Indicator ( 36)
/ PHOTO: (Appears when taking Snapshot.)
0 Remaining Number Of Shots
( 23) (Displays the approximate remaining
number of shots that can be stored during
D.S.C. recording.)
1 Image Quality: FINE and
STANDARD (in order of quality)
( 23, 30)
